Newton 107F Deck Waterproofing Membrane
Application

Waterproofing of:

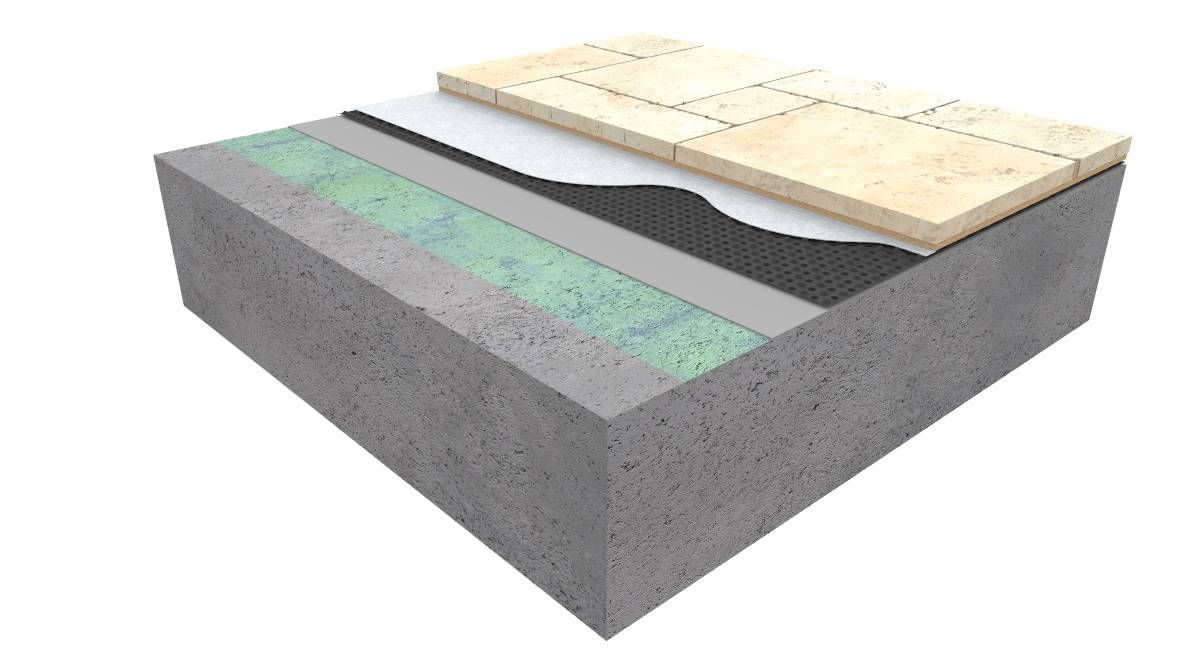

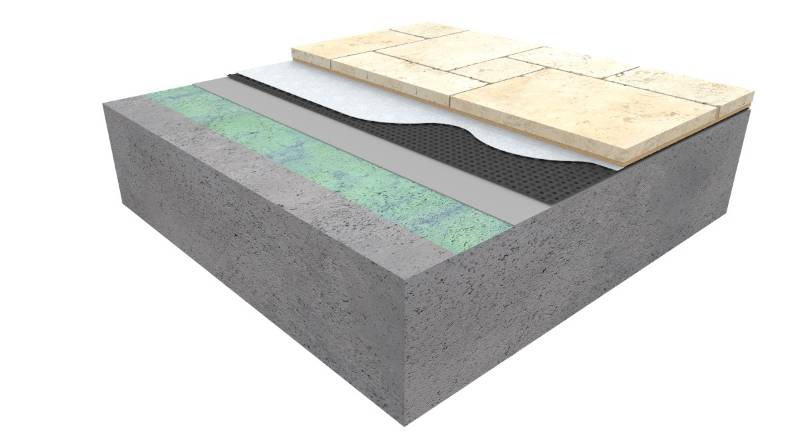

  • Podium decks, flat roofs, terraces and balconies (positive pressure).
  • Water-retaining structures such as water tanks and reservoirs.
  • Earth-retaining foundation walls to both the positive and negative side.
  • Internal concrete surfaces of walls and rafts or slabs to earth-retained structures such as habitable basements, car parks, plant rooms and lift-pits (negative pressure).
  • Soffits (negative pressure).

Description

Newton 107F is a two-component, cementitious, polymer-rich coating for the waterproofing and protection of concrete and masonry. Capable of withstanding heads of water pressure to 10 bar, both positively and negatively. It is ideally suited to the waterproofing of reservoirs, tunnels, water tanks, earth-retaining structures and covered or buried decks, and is especially suitable where the structure has both masonry and concrete elements where differential movement is expected.

When mixed, 107F is thixotropic to enable ease of application by brush or airless spray, providing an even finish with no sagging and excellent adhesion to prepared concrete and masonry substrates, even in vertical situations.

The product hydrates to form a durable, highly alkaline, permanently elastomeric coating which not only protects the concrete or other substrates from water penetration and carbon dioxide diffusion, but also accommodates movement in cracks and at movement joints.

The membrane is reinforced over static joints and at details and changes of direction with Newton 912-RT. For horizontal and vertical movement joints use Newton 106 FlexProof.

Surface preparation is required, as is protection after application - consult manufacturer for details.

Features and benefits:

  • Accepted by the NHBC as a suitable waterproofing system for Type A Waterproofing to Grades 1, 2 and 3 - BS 8102: 2009 and to covered decks.
  • Pre-packaged materials easily mixed on site.
  • Tough, flexible coating which maintains its elastomeric properties even under immersed conditions to accommodate movement in cracks.
  • Good abrasion and very high resistance to freeze/ thaw cycles and de-icing salts.
  • Excellent adhesion to sound prepared concrete and masonry substrates, as well as steel.
  • Dense matrix offers low permeability to water, even at 10 bar pressure, and very high diffusion resistance to carbon dioxide gas.
  • Suitable for positive and negative waterproofing of earth-retaining structures as well as covered decks.
  • A 2 mm coat provides the equivalent to 135 mm of good quality concrete cover.
  • Can be applied to damp substrates in temperatures down to 5°C.
  • Water-based product, free from hazardous solvents, ideal for use in confined spaces. Non-toxic when cured.
  • Correctly prepared suitable substrates include concrete of at least 20 kN, steel, masonry and screed.
  • Can be applied via squeegee, roller, airless spray, pin leveller, brush or trowel.
  • CE marked and manufactured in accordance with EN 1504-2: 2004.
  • Guaranteed to resist weathering for up to ten years.

Curing:

  • Ready for next coat: At 5°C: After 8 hours; at 10°C: After 7 hours; at 15°C: After 6 hours; at 20°C: After 5 hours; at 25°C: After 3 hours.
  • To be kept rain-free: At 5°C: For 5 hours; at 10°C: For 4 hours; at 15°C: For 3 hours; at 20°C: For 2.5 hours; at 25°C: For 2 hours.
  • Ready for temporary traffic/ protection boards: At 5°C: After 72 hours; at 10°C: After 72 hours; at 15°C: After 72 hours; at 20°C: After 48 hours; at 25°C: After 48 hours.
  • Ready for flood/ hosepipe test: After 7 days (at all temperatures).
  • Fully cured: After 28 days (at all temperatures).

Application:

Waterproofing of:

  • Podium decks, flat roofs, terraces and balconies (positive pressure).
  • Water-retaining structures such as water tanks and reservoirs.
  • Earth-retaining foundation walls to both the positive and negative side.
  • Internal concrete surfaces of walls and rafts or slabs to earth-retained structures such as habitable basements, car parks, plant rooms and lift-pits (negative pressure).
  • Soffits (negative pressure).

General information

Color

Liquid: Milky white, Powder: Grey/ white

WarrantyDescription

Newton 107F is guaranteed to resist weathering for up to 10-years. The membrane is not UV colour stable and will slightly fade in colour over time, and it may take a few months for the colour to be consistent. Over time discolouration due to weathering may take place, but the membrane will be serviceable

Uniclass 2015

Pr_20_31_53_14 Cementitious tanking mortarsPrimary

CAWS

J10/110 Proprietary mortar

J31/130 Inverted roof coating

Q37/110 Intensive green roof

Q37/130 Extensive green roof

Q37/310 Inverted roof insulation

Specification data - Cementitious tanking mortars

Product Reference

Newton 107F

Third party product certification

BDA Agrément® BAB 18-026-P-A-UK

Adhesion to concrete

≥ 0.8 MPa BS EN 1542

TensileStrength

Ambient: 0.5 MPa BS 6319-7:1994. Immersed: 0.4 MPa BS 6319-7:1994

Elongation

Ambient: 120 - 130 % manufacturer test. Immersed: 70 - 80 MPa manufacturer test.

Loading capability – 28 days

8 to 10 MPa BS 4551

Hardness

84.0 Shore A BS EN ISO 868:2003

Water permeability coefficient

5.37 x 10-16 m/sec DIN 1048 Part 1

Water vapour diffusion resistance

Sd value: 1.55 m BS EN ISO 7783-2. µ value: 775 µ Calculation from Sd value

7.75 MNs/g Calculation from Sd value

Water resistance

Positive side: 10.0 Bar DIN 1048. Negative side: 1.50 Bar DIN 1048

Reaction to fire classification

Euroclass Bs1, d0 BS EN 13501-1

UV resistance

Stable but will discolour, 50 years UNI EN ISO 11507:2007

pH

12

Thickness

2 mm

Odour

Low (polymeric)

Volatile organic compounds (VOC) content

1.76 g/L (0 when cured)

Standard product features

Colour:

Grey.

Features:

Easily mixed on site, a tough, flexible coating with excellent adhesion to sound prepared concrete and masonry substrates.

Finish:

Smooth, matt grey coating.

Material:

Cementitious flexible waterproofing membrane.

Shape:

2 mm thick waterproof membrane.

Size:

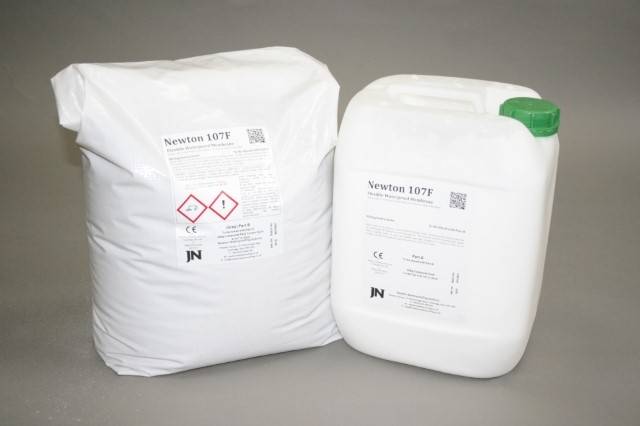

30 kg in two parts - 10 kg Part A (Powder) and 20 kg Part B (Liquid).

Warranty description:

When specified, installed and protected in accordance with the Data Sheet, fully and permanently isolated from UV light and physical damage or wearing, and only to those substrates confirmed within, Newton 107F has a service life that can be equal to the design life of the structure.

Digital objects
PlatformCompatibleVersionCertified to
IFC
IFC2X3 2 1.3
Revit
Revit 2015 4 1.3
Download now from NBS National BIM Library
