MuteBoard®
Verified by manufacturer 13 days ago
MuteBoard® 2
MuteBoard® 2
An acoustic board for wall soundproofing, where available space is limited.
Application
Suitable for enhancing acoustics within walls within homes, workplaces, wall applications of metal, wooden, brick and concrete structures, especially in limited spaces.
Can be applied to various frames and textures.
Description
A slim and practical acoustic board for wall soundproofing where space is limited, for the reduction of ambient noise levels when applied directly to brick, block or stud frames.
Features and benefits:
- Available in a variety of thicknesses:
- MuteBoard® 2 is 19 mm thick;
- MuteBoard® 3 is 25 mm thick;
- MuteBoard® 4 is 27 mm thick.
- Thicknesses vary in acoustic performance and can be installed on decoupled stud frames, internal stud frames to split multiple rooms, or directly on to a brick/ block wall.
General information
Color | Blue Guidance for specification option: Top surface. White Guidance for specification option: Bottom surface. |
Finish | Other |
Material | Polyethylene Guidance for specification option: Polyethylene (PE) foam. Plasterboard |
Shape | Square |
Length | 1200 mm |
Width | 1200 mm |
Height | 19 mm 25 mm 27 mm |
Warranty description | One year |
Uniclass | |
CAWS | K10/409 Gypsum plasterboard (improved sound insulation) |
Specification data - Sound insulation gypsum plasterboards
Supplied by | iKoustic. |
Thickness (nominal) | 19 mm. |
Composition | 15 mm acoustic plasterboard and 3.5 mm visco-elastic material. |
Unit size | 19 x 1200 x 1200 mm. |
BodyMass | 19.5 kg/m². |
Sheet size | 1.44 m². |
Weight | 25 kg. |
Sustainability data
Material | Polyethylene Guidance for specification option: Polyethylene (PE) foam. Plasterboard |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
Literature

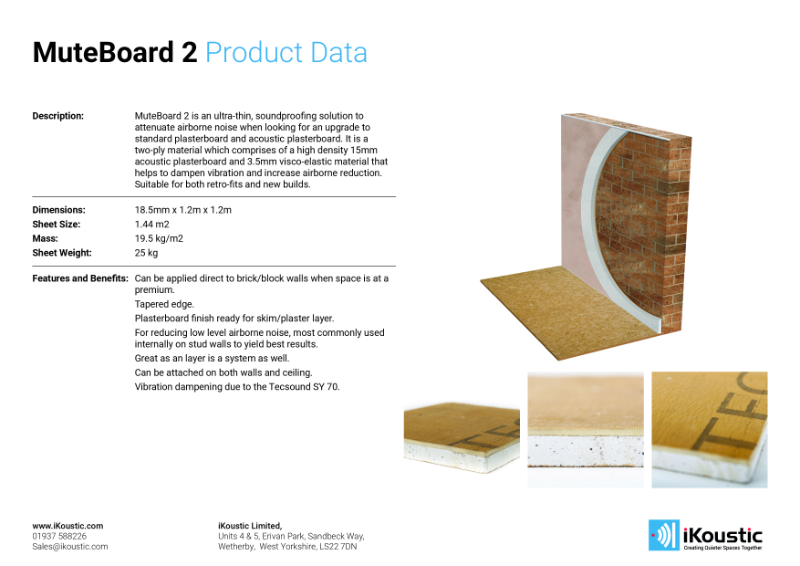

iKoustic_MuteBoard_2_Product_Data-1

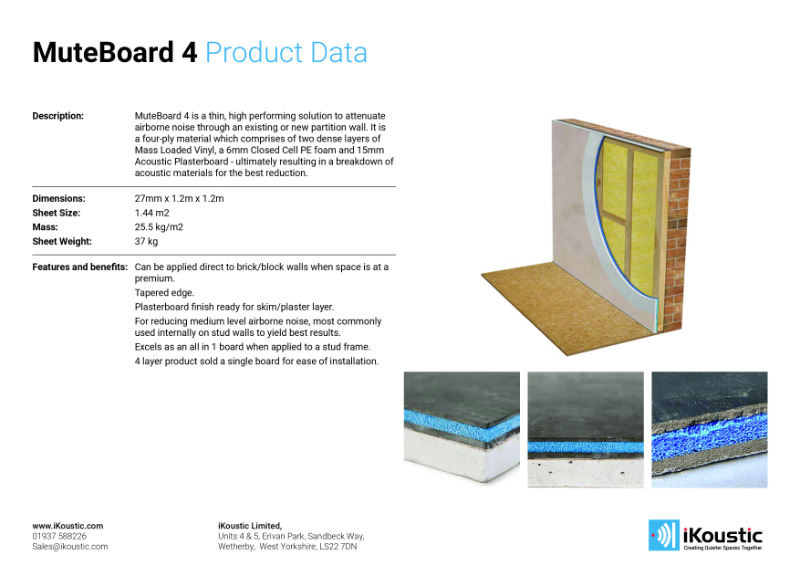

iKoustic_MuteBoard_4_Product_Data

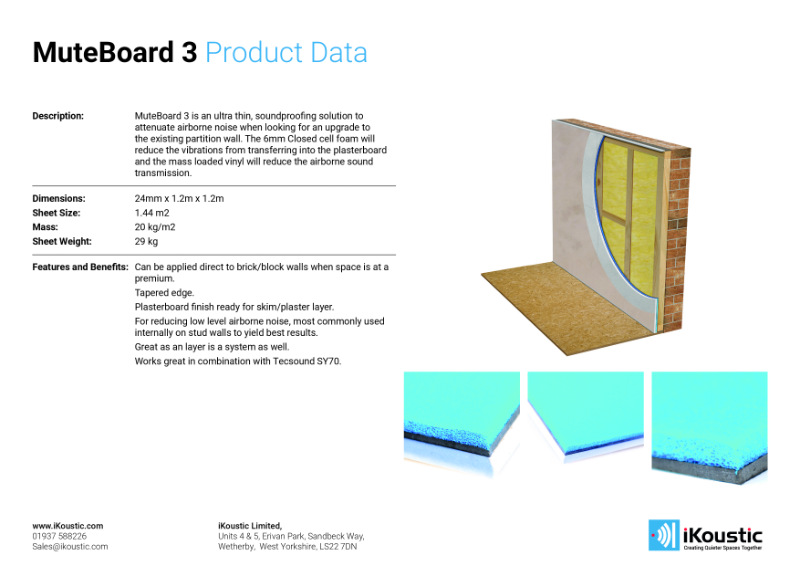

iKoustic_MuteBoard_3_Product_Data-2
