MuteBoard 4 Masonry Stud Wall Soundproofing - Wall Soundproofing
Verified by manufacturer 6 months ago

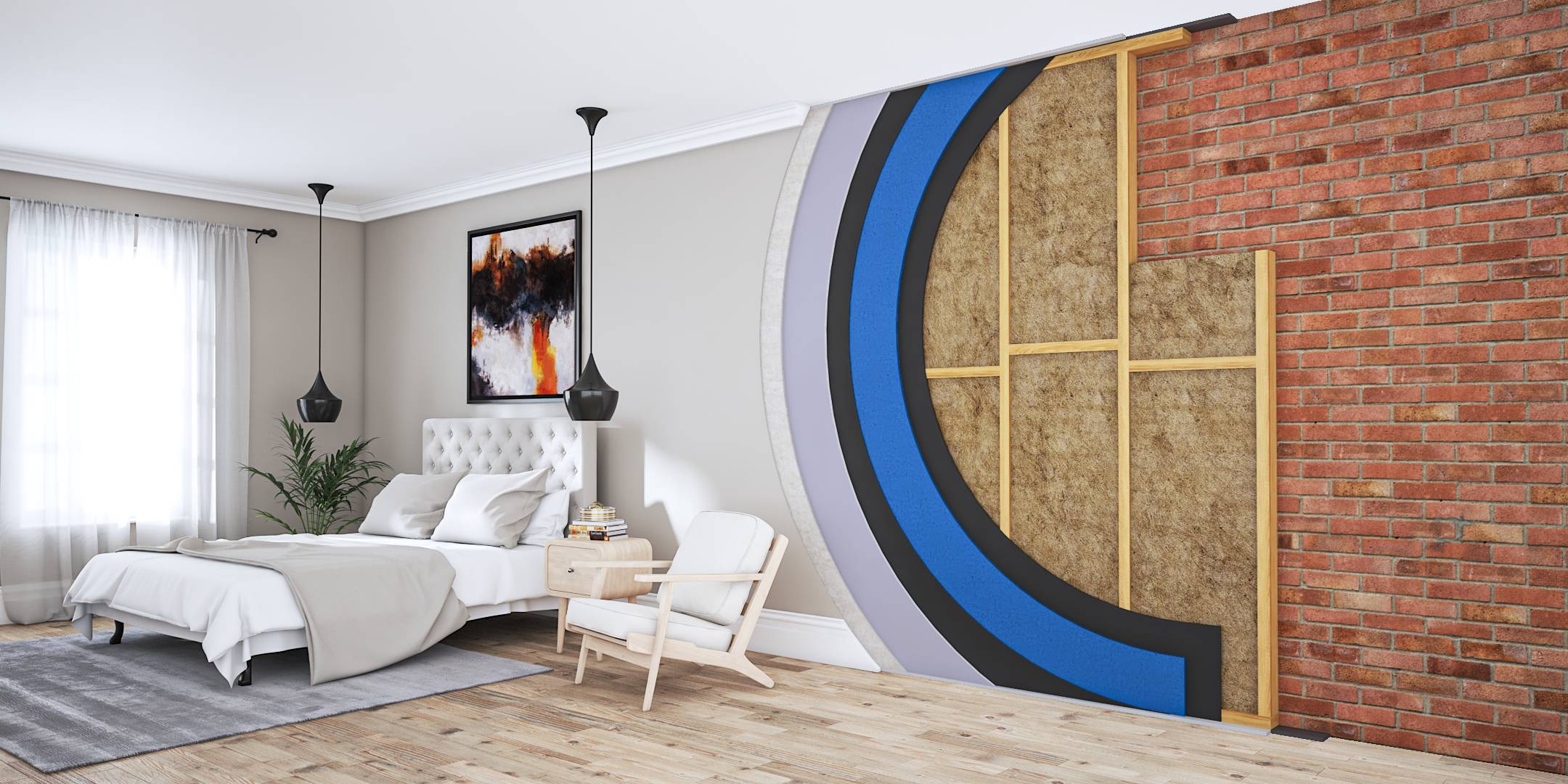

MuteBoard® 4 Stud is a high-performing brick wall soundproofing system that reduces airborne sound by up to 11dB (over a halving of the perceived original sound)
Application
- Suitable for new or existing brick/ block walls.
- For residential and workplace applications.
- Regularly used for party walls in building renovations/conversions.
Description
MuteBoard 4 Masonry Stud is a wall soundproofing system for new or existing stud and brick walls. The system provides an acoustic barrier against common household or workplace noise issues.

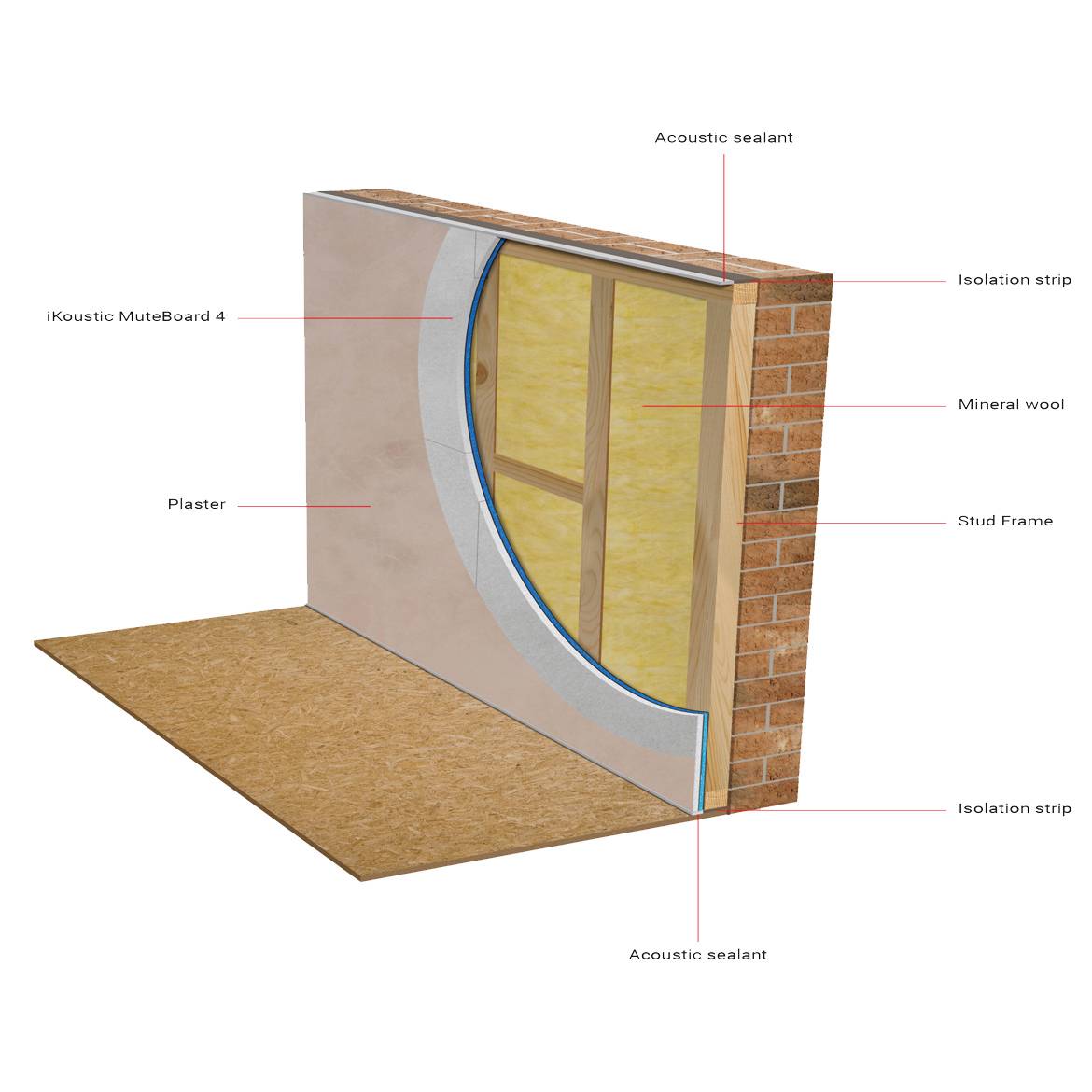

System components:
- Timber stud frame - supplied by others.
- MuteBoard 4 soundproof panels.
- Rockwool acoustic mineral wool.
- Acoustic sealant.
- Isolation Strip F5.
Features and benefits:
- 56 dB partition airborne reduction.
- 27 mm system width.
- MuteBoard 4 is a thin, high-performing solution to attenuate airborne noise through an existing or new partition wall.
- Rockwool RW slabs can be used for thermal, acoustic and fire-resistant insulation. The slabs are available in a wide range of thicknesses and densities. CE marked to EN 13162 and Euroclass A1 non-combustible.
- The rubber-crumb, self-adhesive Isolation Strip P8 decouples structural elements such as stud work from the adjacent surfaces, helping to reduce impact noise issues passing through a structure.
General information
Color | White |
Finish | Other |
Material | Plasterboard Mineral wool Rubber |
Shape | Rectangle |
Length | 1200 mm Manufacturer guidanceMuteBoard 4 Soundproof Panels. |
Width | 1200 mm Manufacturer guidanceMuteBoard 4 Soundproof Panels. |
Height | 27 mm Manufacturer guidanceMuteBoard 4 Soundproof Panels. |
Uniclass | |
CAWS | K10/165 Wall lining system (metal framing) K10/35 Wall lining system (metal framing) |
Specification data - Gypsum board wall lining systems
Support | Carbon steel dry lining frames.Timber dry lining frames. |
Insulation | Rockwool Acoustic Mineral Wool.Guidance for specification option: Insert thickness and density requirements. |
Linings | |
Face layer | MuteBoard 4 Soundproof Panels.Guidance for specification option: A four-ply material which comprises two dense layers of mass loaded vinyl, a 6 mm closed cell PE foam and 15 mm acoustic plasterboard. |
Fasteners | Nylon Hammerfix 8 x 80 mm. |
Finish | Manufacturer guidanceInsert requirements. |
System accessories | Isolation Strip P8 and Acoustic Sealant. |
