Multiboard (Internal)
Application

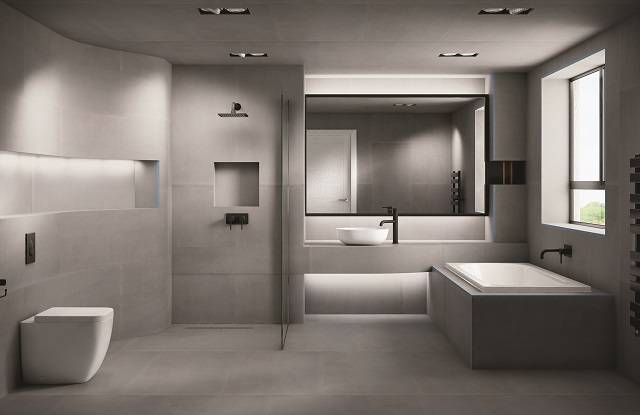

Can be used to insulate and waterproof internal walls, floors and ceilings. Thicker units can be used to construct shelving units and bathroom furniture.

Description

Waterproof, thermally insulating tile backer board for internal use. An external board is available, specified separately.

Features and benefits:

  • Lightweight.
  • Provides an effective decoupling layer between the tiled surface and the substructure. This helps to prevent tiles and grout from cracking due to horizontal movement in the floor.
  • The surface allows heavy weights to be safely and securely fixed to walls.
  • Impermeable to water and acts as a moisture barrier; therefore, can be used in areas prone to moisture, such as kitchens and bathrooms.
  • Thermal insulation is unaffected by various temperatures (including freezing).
  • The cementitious surface is resistant to heat and the chemicals in the sheathing around electric underfloor heating elements, making it safe to use with these types of systems.
  • Can easily be cut in straight lines.
  • Provides enhanced tile adhesion.
  • Can be tiled over or plaster finished; therefore, acting as an alternative to laminated thermal plasterboard.
  • Load bearing capacity exceeds 100 kg/m² on walls, and 40 kg/m² on floors.
  • Boards can be aligned horizontally or vertically.
  • Does not contain any hazardous substances.
  • Manufactured in accordance with ISO 9001 Quality Management Systems and BS EN 5385-2, and CE marked to EN 13164.

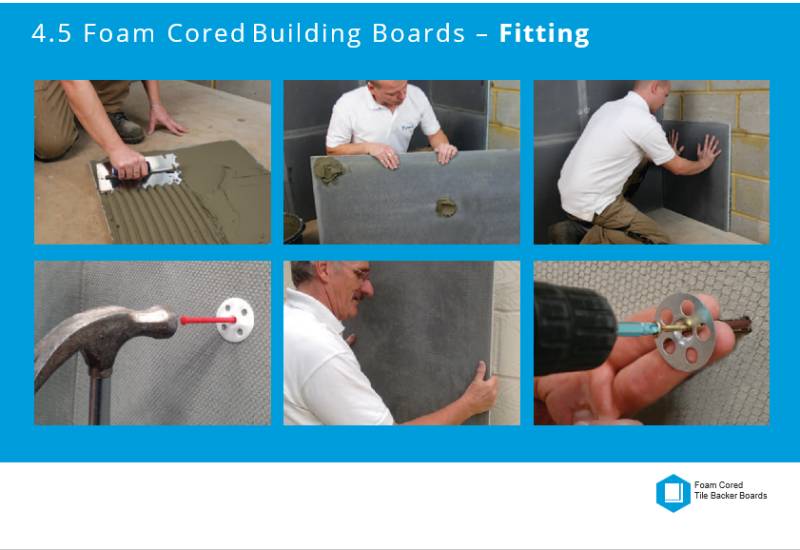

Boards should be stored flat and should be covered with scrim/ reinforcing tape. For fitting instructions onto different types of substrate, consult manufacturer's literature.

Application:

Can be used to insulate and waterproof internal walls, floors and ceilings. Thicker units can be used to construct shelving units and bathroom furniture.

General information
Features

Lightweight, impermeable to water, resistant to heat and chemicals

Material

Extruded polystyrene (XPS)

Size

1250 x 600 mm, 2500 x 600 mm

Uniclass 2015
Pr_25_71_63_29 Extruded polystyrene (XPS) boardsPrimary
CAWS

M40/27 Intermediate substrate

M40/470 Intermediate substrate

Specification data - Extruded polystyrene (XPS) boards
Product Reference

IF1-4-60

Internal floors. For concrete floors. To be fixed with adhesive.

IF2-4-60

Internal floors. For plywood sheet flooring. To be fixed with adhesive or mechanically.

IF3-4-60

Internal floors. For chipboard/ oriented strand board (OSB) flooring panels. To be fixed with adhesive or mechanically.

IF4-10-60

Internal floors. For traditional floorboards. To be fixed with adhesive.

IF5-6-60

Internal floors. For raised access flooring. To be fixed with adhesive.

IW1-4-60

Internal walls. For concrete block and brick substrates (flat). To be fixed with adhesive.

IW2-12-60

Internal walls. For concrete block and brick substrates (uneven). To be fixed mechanically.

IW3-4-60

Internal walls. For aircrete block walls. Fixing with adhesive and mechanically.

IW4-4-10

Internal walls. For plastered walls. Fixing with adhesive and mechanically.

IW5-10-12

Internal walls. For timber/ metal frames, with 300/ 400 mm centres.

IW5-20-60

Internal walls. For timber/ metal frames, with 600 mm centres.

IW6-4-60

Internal walls. For intermediate plywood layers on a timber/ metal frame. To be fixed with adhesive.

IW6-12-60

Internal walls. For intermediate plywood layers on a timber/ metal frame. To be fixed mechanically.

IW7-10-12

Internal walls. For intermediate plasterboard layers on a timber/ metal frame. To be fixed mechanically.

IW7-20-60

Internal walls. For intermediate plasterboard layers on a timber/ metal frame. To be fixed mechanically.

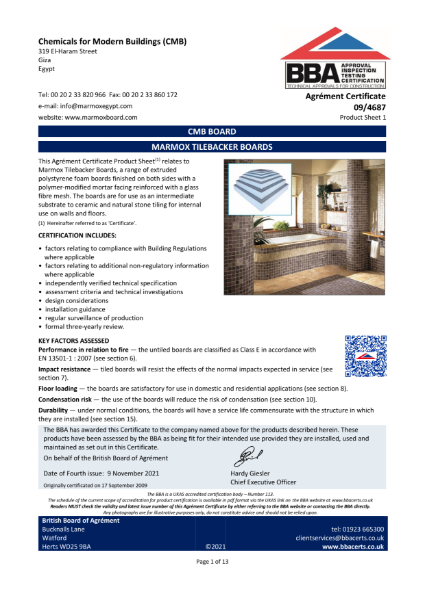

Third party product certification

BBA Certificate: 09/4687

Fire performance

Euroclass E

Compressive strength (minimum) at 10% compression

>400 kPa

Thermal conductivity (maximum)

0.034 W/m·K

Thickness

4 mm

Thermal resistance (R-Value): 0.11 m²K/W. Board weight: 2.3 kg.

6 mm

Thermal resistance (R-Value): 0.17 m²K/W. Board weight: 2.4 kg.

10 mm

Thermal resistance (R-Value): 0.28 m²K/W. Board weight: 2.7 kg.

12.5 mm

Thermal resistance (R-Value): 0.35 m²K/W. Board weight: 2.8 kg.

20 mm

Thermal resistance (R-Value): 0.56 m²K/W. Board weight: 3.1 kg.

30 mm

Thermal resistance (R-Value): 0.83 m²K/W. Board weight: 3.4 kg.

40 mm

Thermal resistance (R-Value): 1.11 m²K/W. Board weight: 4 kg.

50 mm

Thermal resistance (R-Value): 1.39 m²K/W. Board weight: 4.2 kg.

60 mm

Thermal resistance (R-Value): 1.67 m²K/W. Board weight: 4.5 kg.

Face Size (length x width)

1250 mm (±5 mm) x 600 mm (±2 mm)

2500 mm (±5 mm) x 600 mm (±2 mm)

Density (to DIN 53420)

36 kg/m³

Water absorption (two day immersion, to EN 12087)

<1% by volume

Water absorption (capillary, to DIN 53428)

0

Coefficient of linear expansion (to ASTM E-831)

0.07 mm/mK

Water vapour diffusion factor (to EN 12086)

110–225

Ozone depleting potential (ODP)

0

Global warming potential (GWP)

0.29

Impact sound reduction (to BS EN 140-8)

21 dB

Maximum tile loading weight

>100 kg/m² (dependent on adhesive and wall type)

Flexural strength (to ASTM C203)

>200 kPa

Water vapour permeability (to EN 12086)

3.2 m

Coefficient of linear expansion (to ASTM D-696)

30 x 10^-6 K^-1

Standard product features

Features:

Lightweight, impermeable to water, resistant to heat and chemicals.

Material:

Extruded polystyrene (XPS).

Size:

1250 x 600 mm, 2500 x 600 mm.

- Multiboard (generally):

  • Declared thermal conductivity after five years (to BS EN 13164): 0.036 W/m·K.
  • Maximum tile loading weight: >100 kg/m² (dependent on adhesive and wall type).
  • Flexural strength (to ASTM C203): >200 kPa.
  • Water vapour permeability (to EN 12086): 3.2 m.
  • Coefficient of linear expansion (to ASTM D-696): 30 x 10^-6 K^-1.
  • Fire propagation (to BS 476-6): 8.1, Class 0.
  • Spread of flame (to BS 476-7): 1, Class 0.
  • Impact sound reduction (to BS EN 140-8): 21 dB.
  • Working temperature range: -50°C to 75°C.

Literature
Third party certifications
  • Certificate: 09/4687
