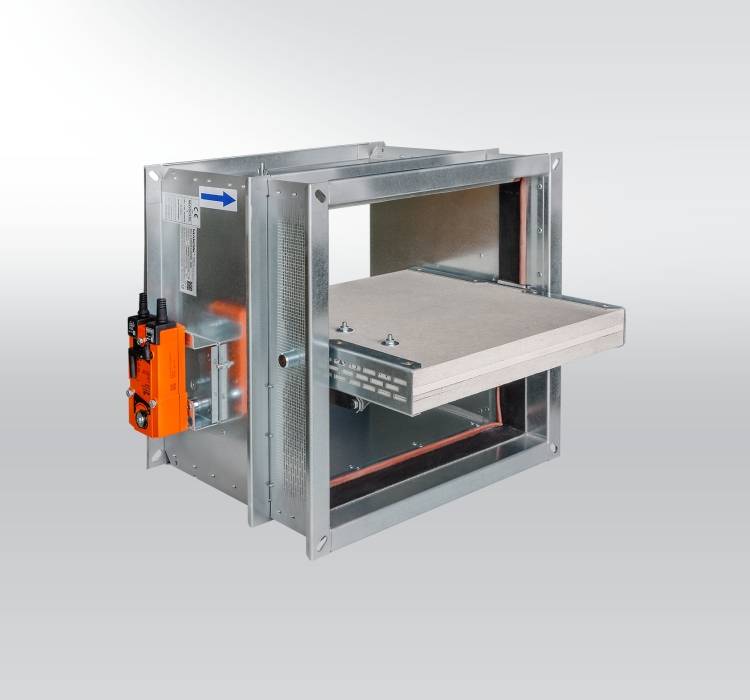

MSD - EIS AA Multi-Compartment Smoke Control Damper (≤1500x800mm) - Smoke Damper

Name: MSD - EIS AA Multi-Compartment Smoke Control Damper (≤1500x800mm) - Smoke Damper
Brand: Mandik UK Limited
SKU: 39iyXNarLD7tAowLLnU7DF

Verified by manufacturer 11 days ago

Mandik UK Limited

Third party certifications:

DoP
Certificate type
UK Conformity Assessed (UKCA)
Certificate type
Certificate of constancy of performance
Certificate type
Hygiene requirements to VDI 6022
Certificate type
EPD
Certificate type

Multi-compartment smoke control damper for use in smoke control ducting systems.

Jump to:

0117 4526376 Website

Application

Smoke dampers are intended for use in spaces with

multiple fire compartments, which can be connected by a

smoke extraction duct tested according to BS EN 1366-8

or BS EN 1366-9 or can be installed in the construction of

the fire compartment. The damper can be installed into:

Horizontal or vertical duct system.
Solid wall construction with a minimum thickness of 100 mm.
Gypsum wall construction with a minimum thickness of 100 mm.
Solid ceiling construction with a minimum thickness of 150 mm.

Additional applications may be available, please reference product Technical Specifications for more detail.

Description

MSD dampers are designed into an inlet or extract smoke ventilation system. The dampers are designed either to close to provide compartmentalization or to open (for fresh air inlet) or to allow removal of the heat and combustible products from a fire in the affected fire zone/ compartment. The damper blade is controlled by an electrical actuating mechanism.

Dampers are fire-resistant and are intended for systems with automatic activation.

Features and benefits:

Square dampers from 160 x 180 mm to 1500 x 800 mm.
CE certified to BS EN 12101-8.
Tested to BS EN 1366-10.
Classified to BS EN 13501-4.
Damper actuating by electrical actuator.

General information

Color	Silver
Finish	Galvanized
Material	Steel Calcium silicate
Shape	Rectangle Square
Length	375 mm 500 mm
Width	180 mm 200 mm 225 mm 250 mm 280 mm 300 mm 315 mm 355 mm 400 mm 450 mm 500 mm 550 mm 560 mm 600 mm 630 mm 650 mm 700 mm 710 mm 750 mm 800 mm Bespoke Guidance for specification option: The dampers are available in any 5 mm increment within their minimum and maximum sizes. Show more
Height	160 mm 180 mm 200 mm 225 mm 250 mm 280 mm 300 mm 315 mm 355 mm 400 mm 450 mm 500 mm 550 mm 560 mm 600 mm 630 mm 650 mm 700 mm 710 mm 750 mm 800 mm 900 mm 1000 mm 1100 mm 1250 mm 1400 mm 1500 mm Bespoke Guidance for specification option: The dampers are available in any 5 mm increment within their minimum and maximum sizes. Show more

Uniclass	Pr_65_65_24_80 Smoke dampersPrimary
CAWS	U90/445 Dampers, smoke

Specification data - Smoke dampers

Standard	To BS EN 12101-8.
Classification	-
Standard	To BS EN 13501-4.
Multi-compartment	-
Integrity class	EI 120. EI 90. Manufacturer guidance Refer to the manufacturer's literature for placement and installation details to achieve the required fire resistance values.
High operational temperature	HOT 400/30.
Suitability	Ve duct and wall; Ho duct and wall.
Smoke leakage	S.
Under pressures	1500.
Inside or outside	(i ↔ o).
Smoke control use	C modulating.
Aerodynamic performance	To BS EN 1751. Guidance for specification option: Damper blade tightness: Class 2, Class 3. Damper casing tightness: Class C (minimum).
Activation	AA – automatic.
Actuators	Belimo BEN, BEE, BE/ Schischek InMax 50.75-S for 230 V. Belimo BEN, BEE, BE/ Schischek InMax 50.75-S for 24 V. Belimo BEN (BEE)-SR for 24 V. Guidance for specification option: BKNE 230-24 serves as a decentralized network device for powering the actuator and also transmits the signal of the communication and control device BKSE 24-6. Manufacturer guidance Schischek InMax 50.75-S actuators (universal 24V or 230V supply) are used for large size of dampers.

Dimensions	- Manufacturer guidance Consult manufacturer's literature for performance details and insert requirements. Square dampers from 160 x 180 mm to 1500 x 800 mm. The dampers are available in any 5 mm increment within their minimum and maximum sizes. Construction length: 375 mm or 500 mm.
Material	Galvanized steel. Guidance for specification option: As standard.
Control module	Not required. Communication and control module MDCM. Guidance for specification option: The MDCM damper control module is connected on a bi directional communication loop back to a control panel, typically located at the FCC. Communication and control module MDPM. Guidance for specification option: The MDPM damper control module is a combined control module and damper positioning module to provide a balanced/3R position.
Integral accessories	None (Design A). Protective cladding boards in line with the blade (Design A1). Protection box of the actuator (Design IB). Protection box of the actuator and protective cladding boards in line with the blade (Design IB1).
