Motion Detector Cages
Verified by manufacturer 5 months ago
STI-9618* Motion Detector Damage Stopper - Corner mount
STI-9618* Motion Detector Damage Stopper - Corner mount
Protective cages for PIR/ motion detectors.
Application
Recommended for areas where abuse to motion detectors is severe.
Description
STI Motion Detector Cages are effective in reducing malfunctions and high maintenance costs where vandalism or accidental damage is prevalent. They are constructed of heavy-duty steel wire with corrosion resistant polyester coating. Seven sizes are available, two of which are designed to fit motion detectors for corner mount units and the others to fit wall mount applications.
Features and benefits:
- Three year guarantee against breakage in normal use.
- Designed to protect a security PIR/motion detector from vandalism and misuse
- Designed so there is no interference with the operation of the protected unit.
- Where additional security is required, tamper-resistant screws and matching bits are available.
General information
Color | White |
Finish | Coated |
Material | Steel Polyester |
Shape | Rectangle Other |
Length | 75 mm 142 mm 57 mm 114 mm 95 mm Manufacturer guidanceDepth. |
Width | 136 mm 102 mm 146 mm 152 mm 140 mm |
Height | 117 mm 196 mm 156 mm 178 mm 222 mm |
Warranty description | Three year Guidance for specification option: Three year guarantee against breakage in normal use. |
Uniclass | |
CAWS | W90/415 Passive infrared detectors W90/415 Passive infrared detectors |
Specification data - Equipment protection cages
Enclosure | |
Material | Plastic coated, heavy-duty galvanized steel rod. |
Dimensions | 117 x 136 x 75 mm.Guidance for specification option: Corner mount. Manufacturer guidanceH x W x D. NB Cage sizes may vary from -5 to +5 millimetres. |
Accessories | KIT-82 Tamper resistant screws #8 x 1 1/2” snake eye (4 no.).KIT-19038 Tamper bit for tamper resistant screws (5/16”). |
Sustainability data
Country of material origin | China |
Country of product manufacture | China |
Material | Steel Polyester |
Literature

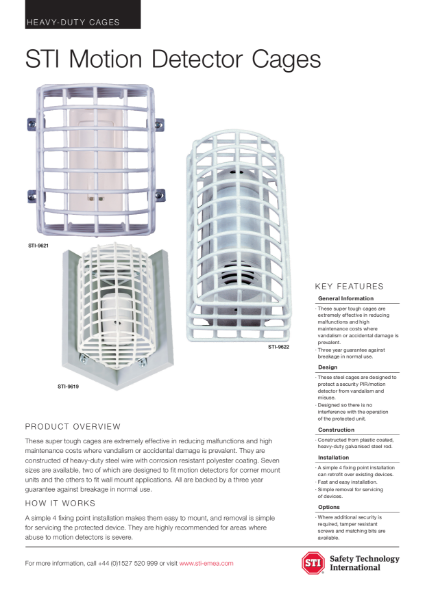

Motion Detector Cages
STI EMEA Product Catalogue 0123
