Steel Web Stoppers® - Equipment Protection Cage

Verified by manufacturer 4 months ago

STI-9601 Steel Web Stopper, low profile - Flush mount

Safety Technology International Ltd Variant:
Third party certifications:
  • UL Certified

    UL Certified

    Certificate type

Protective cages for smoke detectors.

Jump to:
+44 (0) 1527 520 999 Website

Application

Recommended for areas where abuse to smoke detectors is severe.

Description

UL Listed Protectors for areas where abuse to smoke detectors is severe. Patented (D368,670) web-like octagon shape of heavy-duty coated steel wire makes them extremely difficult to break. They are constructed of heavy-duty steel wire with corrosion resistant plastic coating or heavy-duty stainless steel wire. Together, they cover virtually every smoke detector model available. Installation and servicing are easy with models for both flush and surface mounting.

Features and benefits:

  • Three year guarantee against breakage in normal use.
  • Designed so there is no interference with the operation of the protected device.
  • Where additional security is required, tamper-resistant screws and matching bits are available.

General information

Color

White

Finish

Coated

Material

Steel

Polyester

Stainless steel

Shape

Octagon

Length

210 mm

178 mm

181 mm

174 mm

Manufacturer guidance

External length.

Width

210 mm

178 mm

181 mm

174 mm

Manufacturer guidance

External width.

Height

70 mm

108 mm

83 mm

114 mm

117 mm

Show more

Manufacturer guidance

Internal depth.

Warranty description

Three year

Guidance for specification option:

Three year guarantee against breakage in normal use.

Uniclass

Pr_80_77_28_67 Equipment protection cagesPrimary

CAWS

W90/330 Smoke alarms

W90/330 Smoke alarms

Specification data - Equipment protection cages

Standard

UL Listing S3504 (specific detectors only).

Guidance for specification option:

STI-9601–STI-9610 Series UL Listing

Underwriter Laboratories No. S3504 for any UL Listed detector, does not require any sensitivity adjustment.

California State Fire Marshal No. 7300-1416:100.

MEA approved #49-00-E.


STI-9713 UL Listing

Underwriter Laboratories No. S3504 for specific detectors listed below (manufactured after June 1, 2004): ADT 2951ADT, EST 2251FB, FCI ASD-PL2, Fire-Lite SD355, Gamewell SS-P, Honeywell TC806B1076, JCI 2951J, Mircom MIX-2251B, Notifier FSP-851, Secutron MRI-2251B, System Sensor 2251B.

Enclosure

-

Material

Plastic coated, heavy-duty galvanized steel rod.

Dimensions

(127–210) x 70 mm.

Manufacturer guidance

H x W x D.

NB Cage sizes may vary from -5 to +5 millimetres.

Mounting arrangement

Flush mount.

Accessories

KIT-82 #8 X 1 1/2” Snake Eye Tamper Resistant Stainless Steel Screw (set of 4).

KIT-81 #8 X 2 in. Snake Eye Tamper Resistant Stainless Steel Screw (set of 4).

KIT-19038 #8 Tamper Resistant Bit with 5/16 Hex Drive.

STI-8171 Polycarbonate mounting backplate for flush and surface mount models.

Guidance for specification option:

Recommended for irregular and unstable mounting surfaces such as drop ceilings and beams. Only used with STI-9601, STI-9602, STI-9609, STI-9609-SS and STI-9610.

KIT-H19020 Additional Steel Clamps for STI Wire Cage Series (set of 4).

Sustainability data

Material

Steel

Polyester

Stainless steel

Manufacturing plant location

Third party certifications

UL Certified

UL Certified

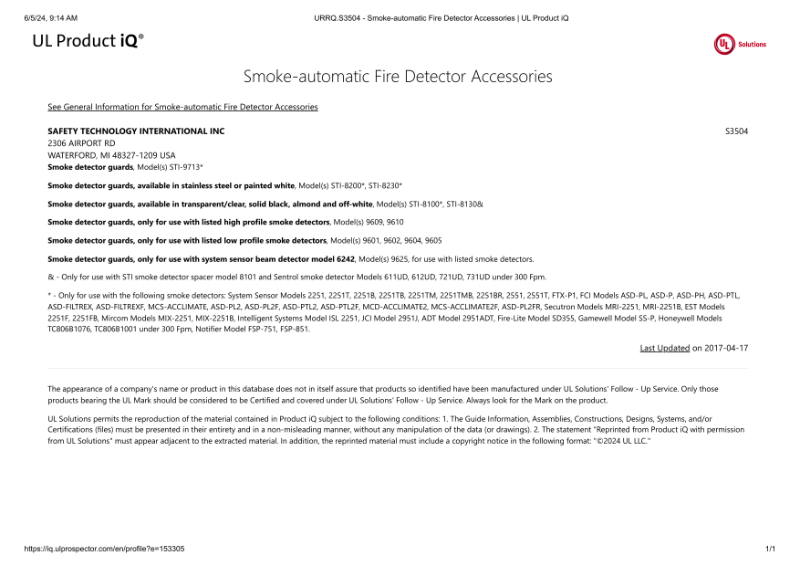

URRQ.S3504 - Smoke-automatic Fire Detector Accessories _ UL Product iQ

Literature

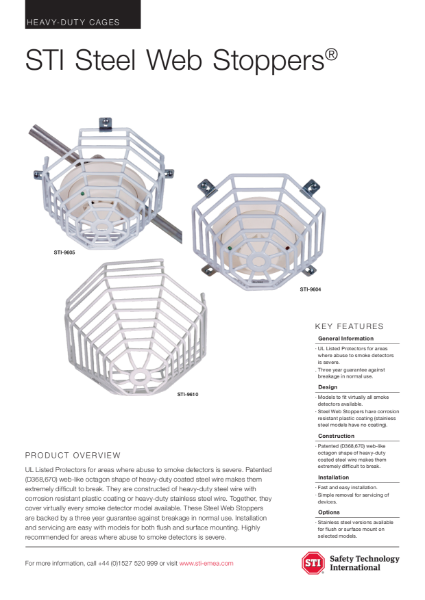

Steel Web Stoppers®

Steel Web Stoppers®

STI EMEA Product Catalogue 0123

STI EMEA Product Catalogue 0123

Case studies

Only a functioning smoke alarm can protect you

Only a functioning smoke alarm can protect you
