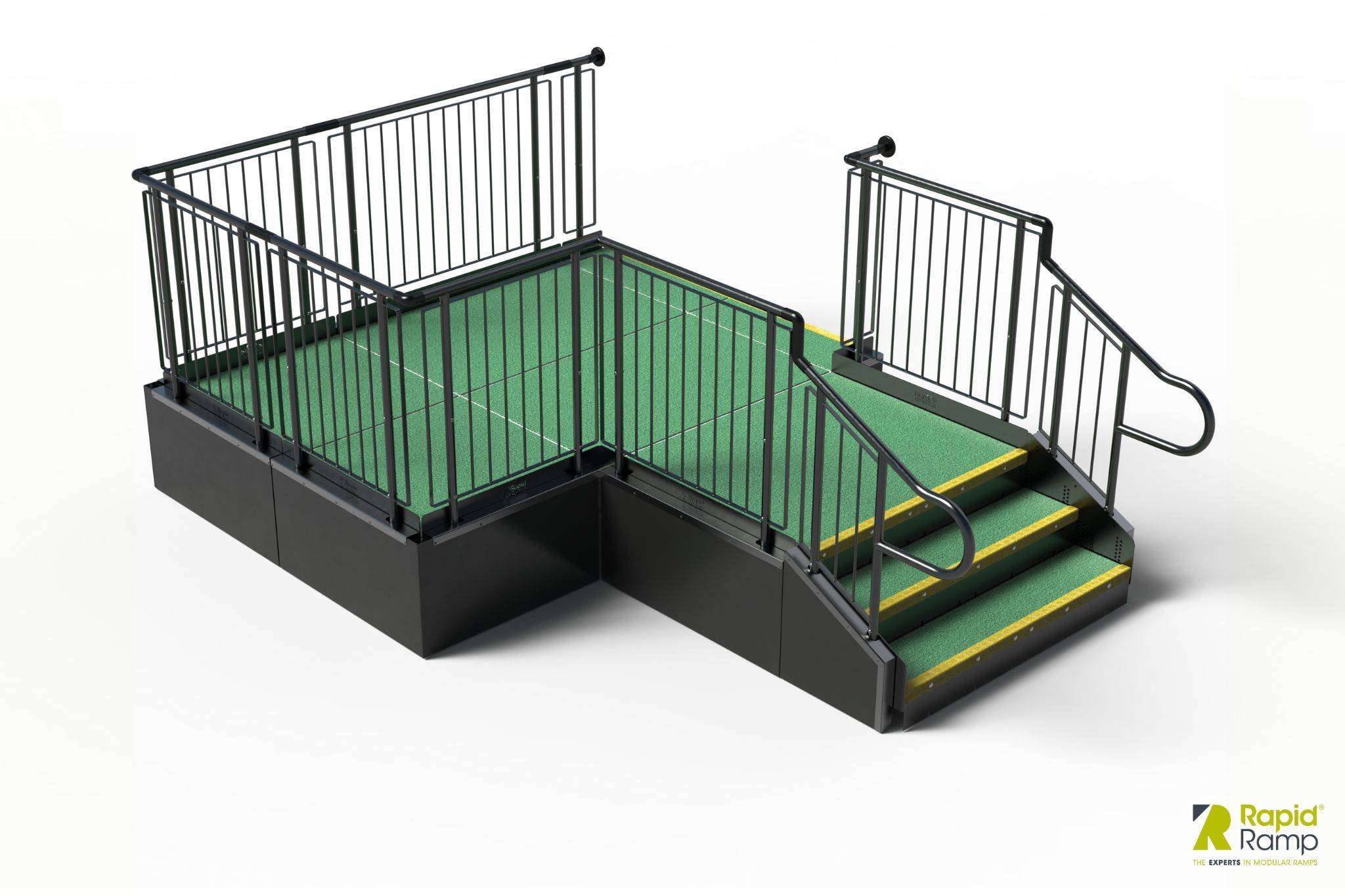

Name: Modular School Steps
Brand: Rapid Ramp Limited
SKU: aPN1Qo8XRqFA94jukz2NQx

Color

Black

Guidance for specification option:

Standard.

Other

Guidance for specification option:

Also available powder-coated in any RAL colour.

Finish

Galvanized

Powder-coated

Material

Steel

Shape

Other

Length

Bespoke

Width

1500 mm

Bespoke

Height

Manufacturer guidance

The Rapid Ramp system can be used up to 3 m high.

Warranty description

Three year

Uniclass

Ss_35_10_85_35 Heavy steel stair systemsPrimary

CAWS

L30/45 Ramps/ walkways

L30/470 Ramps

Classification data

Flooring and treads

Mesh platform.

Guidance for specification option:

As standard. Minimum width: 900 mm.

GRP platform.

Guidance for specification option:

Optional extra. A slip-resistant and non-corrosive surface that is suitable for areas with high footfall such as schools and public spaces. The product comes in dark grey as standard.

Handrails

Standard handrail.

Guidance for specification option:

The handrail is coated with thermosetting powder to provide a non-conductive, non-slip and scratch-resistant surface.

Infill handrail.

Guidance for specification option:

The infill handrail prevents users from climbing or falling through gaps. It is often specified for schools and public buildings.

1100 mm high vertical infill handrail.

Lower intermediate handrail.

Guidance for specification option:

For use with the standard or infill handrail. The lower intermediate handrail is designed to be used by young children and wheelchair users. The handrail should be 600 mm from the surface of the system.

Manufacturer guidance

With trombone ends as standard.

Integral accessories

Telescopic legs.

Guidance for specification option:

Legs can be adjusted to accommodate different threshold heights.

Accessories

None.

Gates unit.

Guidance for specification option:

A gate unit can be attached to the side of a platform; 1200 mm or wider.

Step unit.

Access hatch.

Guidance for specification option:

A hatch opens allowing a person access to the underground services.

Underside mesh hoarding.

Guidance for specification option:

This mesh is designed to prevent children from gaining access to the underneath of the ramp. It is often specified for schools and public buildings.

Specification includes:

• Mesh size 200 x 50 mm.

• 33.7 mm OD Single mesh clip.

Fine underside mesh hoarding.

Guidance for specification option:

This mesh has 20 x 20 mm small square holes, designed to stop litter from blowing underneath the ramp.

Solid underside hoarding.

Guidance for specification option:

This mesh is designed to prevent children from gaining access to the underneath of the ramp. It is often specified for schools and public buildings.

Specification includes:

• Pre-painted sheets of aluminium sheets with a solid polyethene core.

• Black as standard.

Safetread rubber surface.

Guidance for specification option:

A soft, slip-resistant surface that reduces the impact of falls. The product is made from the same materials used in soft play areas and is suitable for nurseries, schools, and public facilities. Available in a range of colours; consult manufacturer and insert requirements.

Platform extension, 15 degree.

Platform extension, 30 degree.

Platform extension, 45 degree.

Step nosing strips, yellow.

Level change strips, yellow.

Colour/ Finish

Black, powder-coated.

Guidance for specification option:

As standard.

RAL, powder-coated.

Guidance for specification option:

Insert requirements.

Width

900 mm.

1000 mm.

1200 mm.

1500 mm.

Bespoke.

Guidance for specification option:

Insert requirements.

Manufacturer guidance

Any of the widths can be secured together to create almost any width.

Contains Red List materials

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Steel

A1-A3 (production stage)

Embodied carbon as defined in BS EN 15804

Normalised unit

Declared unit

156.73 kg CO₂ eq/m²

Self-declared

Guidance for specification option:

When considering the carbon embodiment within the material; it is important to understand the mass of the material. For instance, a Rapid Ramp is hollow underneath the platform, whereas, a concrete ramp is solid. The amount of carbon embodiment needs to be considered based on the mass.

Recyclability

96%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

21 %

Expected Life

25 year
