Modular High Security Sash Lock 8765
Verified by manufacturer 10 months ago
46910562313 - 8765 50MM LOCKSET
46910562313 - 8765 50MM LOCKSET

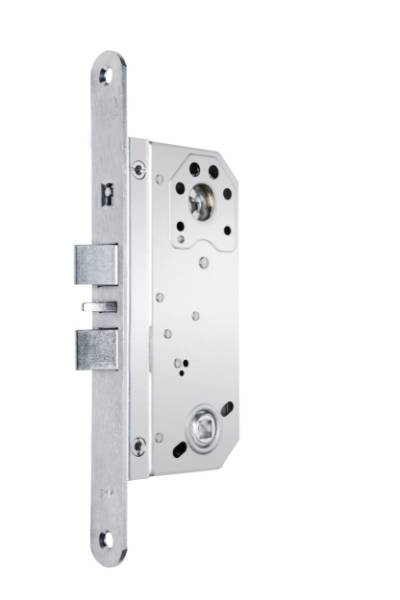

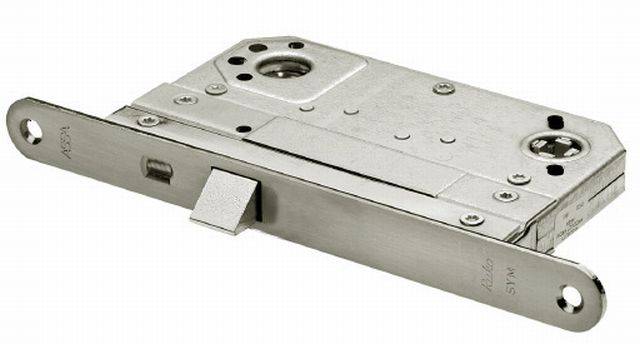

Modular Scandinavian mortice high security sashlock.
Application
Suitable for shops and entrance doors to private houses, industrial premises, offices or any situation where a key operated deadlock is required.
Description
High security locks for premises where a key operated deadlock is required with a latch and lever handles.
Features and benefits:
- Available with backset 50 or 70 mm.
- Hardened steel deadbolt thrown 21 mm by 360° turn of key or thumbturn.
- Latchbolt is reversible without opening lockcase.
- Supplied with high security box striking plate.
- The deadbolt is operated with key or thumbturn.
- The latchbolt is retracted with handle, key or thumbturn.
Suitable cylinders:
Scandinavian oval or round:
- ASSA 5-Pin.
- ASSA Flexcore Plus.
- ASSA 4800.
- ASSA Twin Combi.
- ASSA dp4400.
- ASSA CLIQ.
General information
Color | Silver |
Finish | Zinc plated |
Material | Steel |
Shape | Rectangle |
Width | 18.5 mm |
Height | 150 mm |
Warranty description | Five year |
Uniclass | |
CAWS | P21/28 Door latches P21/24 Door locks P21/540 Door latches P21/515 Door locks |
SKU Code | 8765 |
Product range |
Specification data - Door latches
Standard | To BS EN 12209. |
Classification grades (minimum) | |
Category of use | BS EN 1192, grade 3. |
Durability | BS EN 12209, grade X. |
Door mass and closing force | BS EN 12209, grade 9. |
Suitability for use on fire-resisting and/ or smoke control doorset | BS EN 12209, grade B. |
Safety | BS EN 12209, grade 0. |
Corrosion resistance and temperature | BS EN 12209, grade F. |
Security and drill resistance | BS EN 12209, grade 4. |
Key identification requirement | BS EN 12209, grade B. |
Latch or lock type | Cylinder mortice lock. |
Backset | 50 mm. |
Material and finish | Zinc plated steel. |
Execution | Fasteners for hardware. |
Door thickness | Guidance for specification option: When ordering please specify hand and door thickness. |
Handing | Left hand inward opening. Left hand outward opening. Right hand inward opening. Right hand outward opening. |
Sustainability data
Contains Red List materials | No |
Material | Steel |
Recyclability | Manufacturer guidanceMetals widely recycled. |
