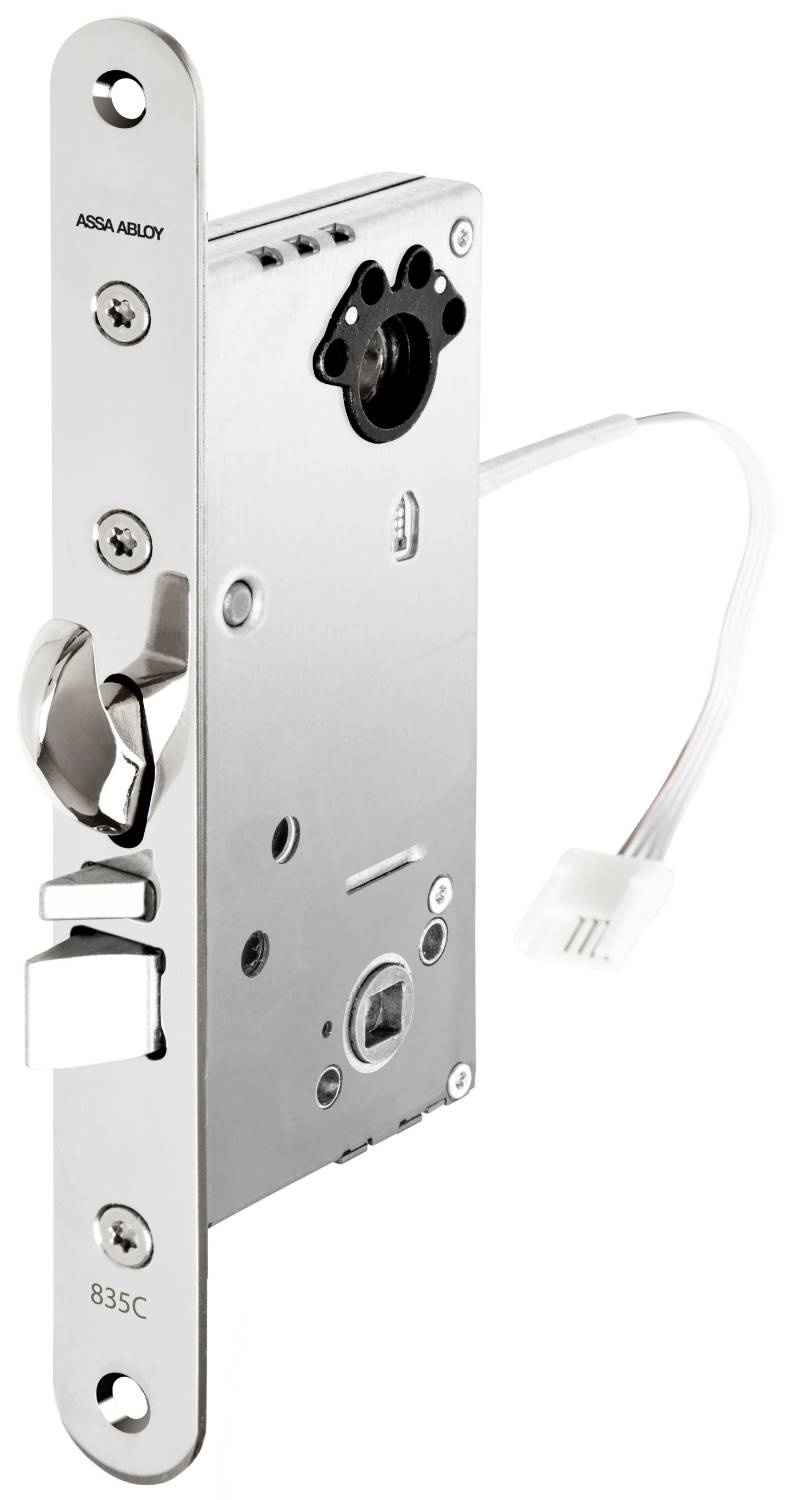

835C50 Handle Controlled Motor Lock Complete Kit

Electromechanical lockcase with deadlatch and hook bolt, that offers increased holding force. The hook bolt can be automatically thrown when the door is closed.

Features and benefits:

• The handle is electronically controlled outside, mechanically connected inside (split spindle), or electronically controlled outside and inside (fixed spindle).
• Auto hook, the hook bolt is thrown automatically when the door is closed but can also be disengaged and operated manually by handle operation.
• Lock can be opened with a key/ thumb turn.
• The hook bolt provides increased holding force connecting the door and frame, providing extra strong burglar resistance.
• Re-entry function can be activated via I/O BOX 350 with a signal from an evacuation/fire alarm.
• Simple to reverse the electrically/mechanically operated side.
• Can be adjusted to work as 813C-50, 815C-50, 825C-50.
• Status indication on the Hi-O bus and via relay on I/O BOX 350.
• Monitoring: Dead latching, latch out, latch in, inside handle, error, door forced, door status indication.
• Duty Fail safe or fail secure changeable on site.
• Tested to 1,500,000 cycles.
• 12 or 24 V.d.c.
• Certified to SSF 3522-1093, class 2/2B, SS-EN 179, only when combined with ASSA ABLOY emergency exit hardware 179J (available separately), EN 14846.
• UKCA and CE marked (fire/EMC).
