Mobility Kerbs

Verified by manufacturer 5 months ago

Mobility straight kerb

Brett Landscaping Variant:

A low level kerb which offers excellent solutions when designing shared surfaces.

Jump to:
+44 (0)345 60 80 570 Website

Application

Domestic and lightly-loaded commercial use: lateral restraint for vehicular and pedestrian pavements including footpaths, cycle tracks, home zones, adoptable shared highways, commercial pavements, roof top and balcony applications.

Description

Mobility kerbs have been designed to provide sufficient tactile feel for partially-sighted users to recognise the pavement edge, at the same time not being so steep as to cause difficulty for users with mobility issues. These kerbs offer excellent solutions when designing shared space developments in both commercial and residential environments.


When designing urban spaces, it is important to consider access for all user groups. Working with a number of local authorities, Brett Landscaping have developed a range of mobility kerbs. This kerb range also comes with a selection of fittings to allow for ease of design and installation.


These kerbs offer excellent solutions when designing shared space developments in both commercial and residential environments. When used in conjunction with Brett Beta or Omega Pencil Edge concrete block paving, they provide an attractive, safe and functional zone for all users of the space.


Standards:

Brett Landscaping operate a number of independently audited management systems:

  • BS EN ISO 9001: 2008 Quality Management System.
  • BS EN ISO 14001: 2004 Environmental Management System.
  • OHSAS 18001: 2007 Health and Safety Management System.
  • BES 6001 Responsible Sourcing of Construction Products.

General information

Color

Red

Grey

Finish

Fine

Material

Concrete

Guidance for specification option:

Precast (semi-dry-pressed and vibrated).

Length

175 mm

145 mm

Width

100 mm

125 mm

300 mm

Height

125 mm

145 mm

Uniclass

Pr_25_93_45_18 Concrete kerbsPrimary

CAWS

Q24/10 Conventional concrete block paving

Q24/110 Conventional concrete block paving

Q24/113 Conventional concrete block paving overlay

Product range

Mobility

Specification data - Concrete kerbs

Standard

To BS EN 1340: 2003.

Physical properties

-

Colour

Brindle.

Guidance for specification option:

(BR).

Charcoal.

Guidance for specification option:

 (CL).

Finish

Fine.

Dimensions

175 x 100 x 145 mm.

Weathering resistance

Class 3.

Abrasion resistance

Class 3.

Bending strength

Class 3.

Unpolished Slip Resistance Value (USRV) (minimum)

>55; potential for slip: Low.

Recycled content (minimum)

Guidance for specification option:

Up to 10%, depending on site of manufacture.

Type

Hand lay.

Third-party certification

CE marked.

Unit weight

5.0 kg.

Sustainability data

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

%

Guidance for specification option:

Up to 10%, depending on site of manufacture.

Literature

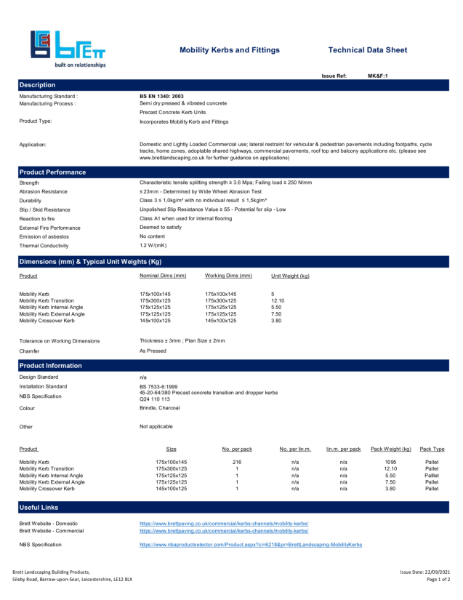

Mobility Kerb TDS Sept 21

Mobility Kerb TDS Sept 21
