Mk2 Door - Double Glazed Aluminium Framed Acoustic Door - Acoustic, Framed Double Glass Door
Verified by manufacturer 18 hours ago
Aluminum framed double glazed door with up to 42dB (Rw) of acoustic resistance.
Application
Open-plan commercial offices and workplace environments.
Description
Our MK2 doors are the perfect blend of high quality performance and visual excellence. Our premium double glazed doors provide outstanding acoustic resistance and make for a great addition to any office space.
Features and benefits:
- 70 x 44 mm Aluminium profile.
- Up to 42 dB (Rw) of acoustic resistance is achievable with two 10.8 mm acoustic laminate glass panes.
- Available with hinges or an offset pivot and floor spring option.
- Customisable design options with switch glass, internal blinds and aluminium bars available.
- Supplied with a high acoustic door frame to ensure quality sound performance.
General information
Color | Clear Beige Black Blue Brown |
Finish | Anodized Powder-coated Satin |
Material | Aluminium Glass |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Five year |
Uniclass | |
CAWS | L20/55 Doorsets L20/480 Doorsets |
Specification data - Aluminium doorsets
Classification data | |
Configuration | Single leaf, single action. Guidance for specification option: Insert drawing reference number. |
Doorset size | Guidance for specification option: Available height up to 3000 mm; insert requirements or drawing reference number. |
Performance | |
Acoustic performance | Up to 42 dB (Rw). Guidance for specification option: Sound measurements to BS EN ISO 140. Sound rating to BS EN ISO 717. |
Strength and durability | To BS 5234, BS 6180 and BS 6399. Manufacturer guidanceStructural stability. |
Frame | |
Material | 70 x 44 mm aluminium profiles. |
Finish | |
Coating | Polyester powder coat. Satin anodized. Special anodized finish. |
Colour | Manufacturer guidanceConsult manufacturer and insert requirements. |
Door leaf | |
Thickness | 44 mm. |
Material | Aluminium. |
Perimeter seals | Drop down acoustic seal. |
Glazing | |
Type | Double-glazed toughened glass. Double-glazed laminated glass. Double-glazed switch glass. Guidance for specification option: Consult manufacturer for details. Manufacturer guidanceGlass thickness: 6–10.8 mm. |
Manifestation | Not required. Required. Guidance for specification option: Insert requirements; contact manufacturer for details on optional manifestations and graphics. |
Glazing accessories | Not required. Integral blinds. Graphics. Aluminium banding. |
Finish | |
Coating | Polyester powder coat. Satin anodized. Special anodized finish. |
External colour | Manufacturer guidanceConsult manufacturer and insert requirements. |
Internal colour | As External. |
Door accessories | Manufacturer guidanceConsult manufacturer and insert requirements or omit. |
Hardware | Hinges. Offset pivot. Manufacturer guidanceA wide range of ironmongery can be supplied with MK2 Doors. Consult manufacturer and insert requirements or refer to a schedule. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Aluminium Glass |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 90 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature

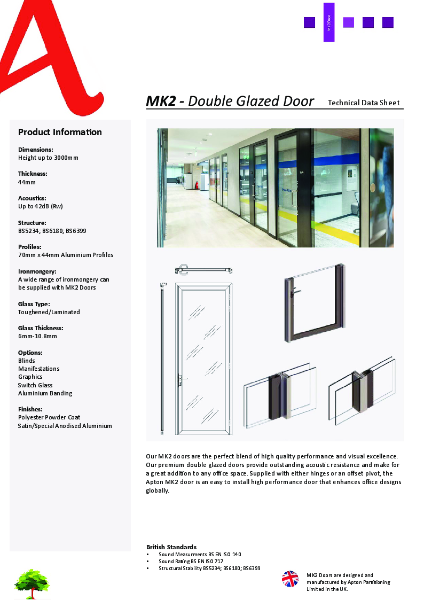

MK2 Data Sheet
