GDS Door - Bonded Profile Double Glazed High Acoustic Door - Flushed Double Glazed, High Acoustic
Verified by manufacturer 18 hours ago
6 mm thick, double glazed toughened glass door.
Application
Open-plan commercial offices and workplace environments.
Description
The combination of an aesthetically stylish appearance with acoustic performance makes Apton GDS Doors a winning combination.
The GDS Double Glazed Acoustic Doors create a feeling of privacy whilst maintaining an unrestricted visual of an open office.
Features and benefits:
- Aesthetic stylish appearance.
- Acoustic performance.
- A wide choice of ironmongery.
- Supplied with either hinge or offset pivot.
- Ease of installation.
General information
Color | Clear Beige Black Blue Brown |
Finish | Anodized Satin Powder-coated |
Material | Aluminium Glass |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Five year |
Uniclass | |
CAWS | L20/55 Doorsets L20/480 Doorsets |
Specification data - Aluminium doorsets
Classification data | |
Configuration | Single leaf, single action. Guidance for specification option: Insert drawing reference number. |
Doorset size | Guidance for specification option: Available height up to 3000 mm; insert requirements or drawing reference number. |
Performance | |
Acoustic performance | Up to 41 dB (Rw). Guidance for specification option:
|
Strength and durability | To BS 5234, BS 6180 and BS 6399. Manufacturer guidanceStructural stability. |
Frame | |
Material | 40 x 44 mm aluminium profiles. |
Finish | |
Coating | Polyester powder coat. Satin anodized. Special anodized finish. |
Colour | Manufacturer guidanceConsult manufacturer and insert requirements. |
Door leaf | |
Thickness | 44 mm. |
Material | Aluminium. |
Perimeter seals | Drop down acoustic seal. |
Glazing | |
Type | Double-glazed toughened glass Double-glazed switch glass. Guidance for specification option: Consult manufacturer for details. Manufacturer guidanceGlass thickness: 6 mm. |
Manifestation | Not required. Required. Guidance for specification option: Insert requirements; contact manufacturer for details on optional manifestations and graphics. |
Glazing accessories | Not required. Integral blinds. Graphics. Aluminium banding. |
Finish | |
Coating | Polyester powder coat. Satin anodized. Special anodized finish. |
External colour | Manufacturer guidanceConsult manufacturer and insert requirements. |
Internal colour | Manufacturer guidanceConsult manufacturer and insert requirements. |
Hardware | Lift off hinges. Offset pivot. Manufacturer guidanceA wide range of ironmongery can be supplied with GDS doors. Consult manufacturer and insert requirements or refer to a schedule. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Aluminium Glass |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 90 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature

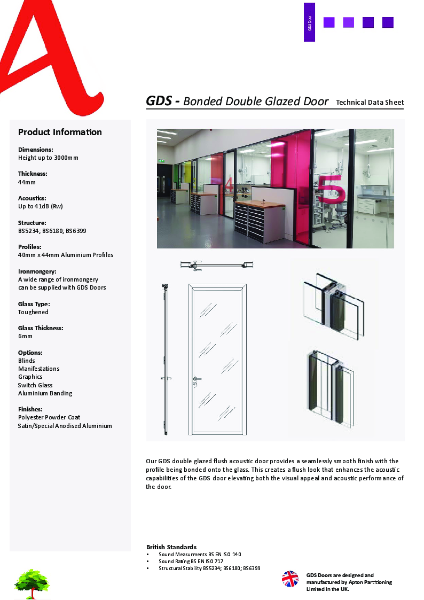

GDS Door Data Sheet
