Mivera Bamboo Cubicle
Verified by manufacturer 1 day ago

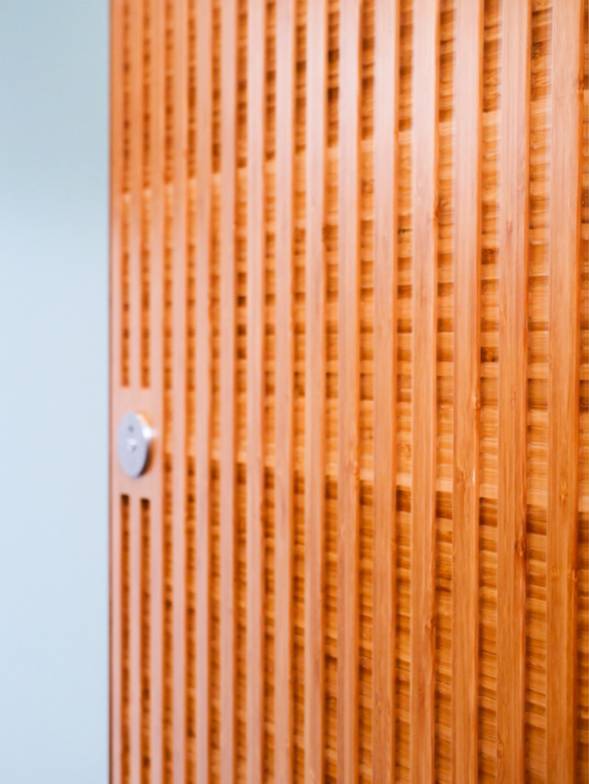

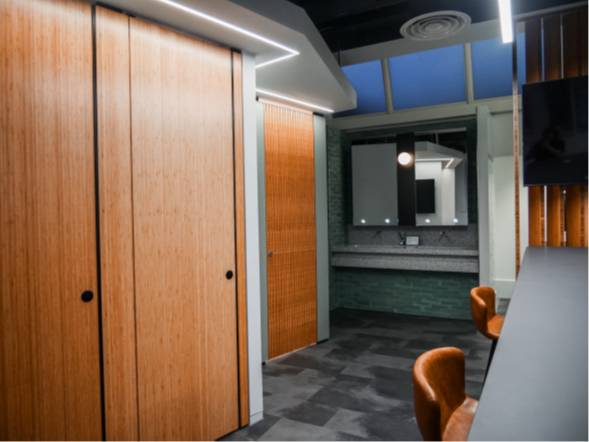

Made to measure bamboo cubicle range with soft close doors and a range of lacquer and staining options.
Application
Suitable for washroom applications.
Description
Bamboo cubicle range.
Features and benefits:
- Soft close doors on fall-to-close hinges used to maintain flush appearance.
- Can be stained and lacquered to any colour requirement.
- 44 mm solid core doors with 30 mm divisions.
- Solid stainless steel ironmongery, available in a range of colours.
- Full height and made to measure.
- Versatile - can be installed in conjunction with dividing stud partition walls.
General information
Color | Other |
Finish | Stained Lacquered |
Material | Bamboo |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | K32/120 Panel cubicles K32/10 Panel cubicles |
Specification data - Panel cubicle systems
Classification data | |
Panels | Divisions: 44 mm high-grade bamboo ply. Over-door panels: high-grade bamboo ply. |
Pilasters | 44 mm high-grade bamboo ply with rebated vertical edges. |
Doors | 44 mm high-grade bamboo ply with rebated vertical edges. |
Lippings | Door and pilasters: rebated vertical edges. Guidance for specification option: For over-door panels edge treatment options consult manufacturer for more details and insert requirements. |
Hardware | Solid stainless steel butt hinges (fall to close). Solid stainless steel mortise lock with lever operated turn action. Hidden hydraulic soft close mechanism. Buffered coat hooks in stainless steel. Stainless steel pull handles. Guidance for specification option: Tectus concealed hinges and/ or ironmongery to be physical vapor deposition (PVD) coated in a range of colours available on request. Consult manufacturer for more details and insert requirements. |
Finish | Guidance for specification option: Various stain and lacquer options available; consult manufacturer for more details and insert requirements. Manufacturer guidanceDoor finish. |
Finish | Guidance for specification option: Various stain and lacquer options available; consult manufacturer for more details and insert requirements. Manufacturer guidancePanel finish. |
Pilaster finish | Manufacturer guidanceVarious stain and lacquer options available; consult manufacturer for more details and insert requirements. |
Fixing | Division to rear wall: aluminium T-section fixed into pre-grooved division. Division to pilaster: concealed high-strength mechanical fixings. Division/ pilaster to floor and ceiling: aluminium powder-coated channel secured to floor. End pilaster to wall: fully adjustable aluminium shadow detail. Guidance for specification option: Division/ pilaster to floor and ceiling: division is pre-grooved and placed over the channel, raising it by 20 mm and preventing contact with mopping water. |
Sustainability data
Material | Bamboo |
