Mirage

Application

Suitable for upmarket shower facilities.

Description

A robust system with a strong aesthetic appeal. Rimless glass panels and bold functional metal supports makes it suitable for upmarket shower facilities.

Available in a wide range of colours and finishes, Mirage takes on the hard wearing and easy to clean properties natural to glass, allowing both style and practicality to be attained


Features and benefits:

  • Wide choice of colours and finishes, including laminated, sand-blasted and layered back-painted glass.
  • Toughened glass.
  • Adjustable legs for ease of installation.
  • Functional and striking components in satin stainless steel.
  • Can be used as shower cubicles with doors or curtains.

General information

Finish

Glass

Color

Any RAL colour.

-

Material

Glass

Two layers of 4 mm toughened, back-painted glass bonded back-to-back, giving overall thickness of 10 mm.

Size

Overall height: 2000-2800 mm.

Division (h x w): 2000-2800 mm x 1500mm–2200 mm.

Door (h x w): 2000-2800 mm high x to suit site dimensions.

Pilaster (h x w): 2000-2800 mm high x to suit site dimensions.

-

Uniclass 2015

Ss_25_12_60_60 Panel cubicle systemsPrimary

CAWS

K32/10 Panel cubicles

K32/120 Panel cubicles

Product range

Cubicles

Specification data - Panel cubicle systems Enhanced data

Panels

  • Core material: Two layers of 4 mm-thick toughened, back-painted glass bonded back-to-back, giving overall thickness of 10 mm. (For panels over of area 2.1 m², two layers of 6 mm thickness are used).
  • Edge treatment: All edges radiused, polished and finished with silicon bead.

Toughened glass, sandblasted finish.

Toughened glass, colour.

Insert RAL colour.

Pilasters

  • Core material: Two layers of 4 mm-thick toughened, back-painted glass bonded back-to-back, giving overall thickness of 10 mm. (For panels over of area 2.1 m², two layers of 6 mm thickness are used).
  • Edge treatment: All edges radiused, polished and finished with silicon bead.

As panels.

Toughened glass, sandblasted finish.

Toughened glass, colour.

Insert RAL colour.

Doors

  • Core material: Two layers of 4 mm-thick toughened, back-painted glass bonded back-to-back, giving overall thickness of 10 mm. (For panels over of area 2.1 m², two layers of 6 mm thickness are used).
  • Edge treatment: All edges radiused, polished and finished with silicon bead.

As panels.

Toughened glass, sandblasted finish.

Toughened glass, colour.

Insert RAL colour.

Hardware

Manufacturer's standard.

  • Indicator bolt: Solid stainless steel with turn action.
  • Division fixing: Solid stainless steel bolt-through channel brackets.
  • Hinges: Solid stainless steel set fall-to-close.
  • Support foot: Solid stainless steel with adjustment.
  • Headrail: Tubular section in stainless steel.
  • Ambulant pull handle: 19 x 600 mm stainless steel D-handle.

Manufacturer's standard with stainless steel channel headrail.

As Manufacturer's standard, with stainless steel channel headrail in lieu of tubular headrail.

Curtains

Not required.

Shower curtains.

Shower curtain rails.

System accessories

Indicator bolt.

Solid stainless steel with turn action.

Division fixing.

Solid stainless steel bolt-through channel brackets.

Ambulant pull handle.

19 x 600 mm stainless steel D-handle.

Hinges.

Solid stainless steel set fall-to-close.

Support foot.

Solid stainless steel with adjustment.

Headrail.

Tubular section in stainless steel.

Product Reference

Mirage

Design

Insert requirements or drawing reference.

  • Overall height: As required, 2000–2800mm.
  • Division panels: 2000–2800 mm high, 1500–2200 mm wide.
  • Door: 2000–2800 mm high, width to suit site dimensions.
  • Pilaster: 2000–2800 mm high, width to suit site dimensions.

-

Literature

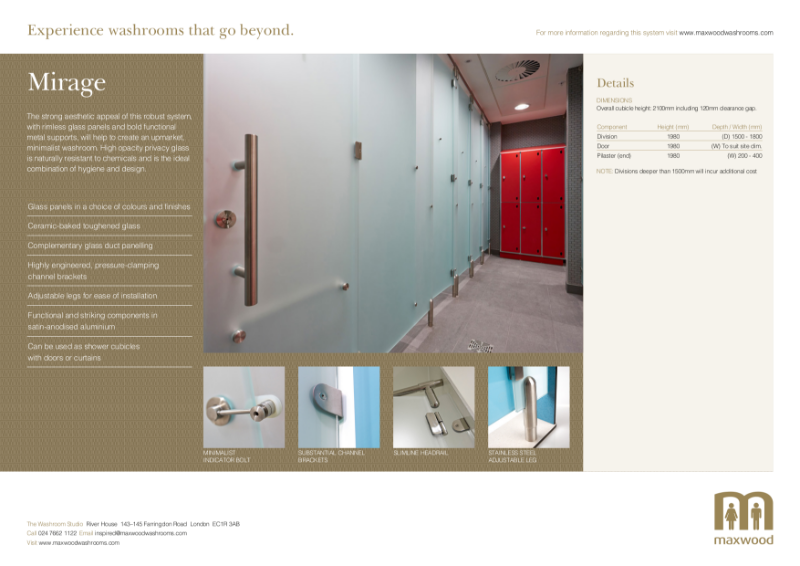

Cubicles - Mirage - Glass cubicle systems

Cubicles - Mirage - Glass cubicle systems
