MFT-FOX VT-2L-Stulp

Application

The system is suitable for ventilated facades in new and refurbishment projects with the following cladding materials:

  • Fibre-cement.
  • High pressure laminate (HPL).
  • Metal.
  • Composite.

Description

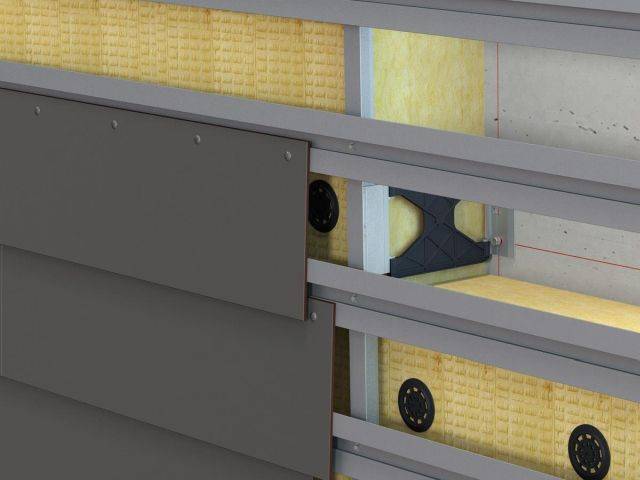

The ventilated facade two layers system consists of vertical/ horizontal aluminium profiles and thermal bridge-free brackets (MFT-FOX VT).

The brackets are designed with both fixed and flexible point to allow for thermal expansion of the profile.

The first layer vertical profiles are fastened to the brackets with specially design stainless steel screws S-AD, to allow movement of the profiles relative to the wall brackets due to flexible points and to keep the profile connected to the wall brackets due to the fixed points.

The second layer horizontal profiles for overlapping fastening are supplied with elongated holes to allow the horizontal profile to be fastened to the vertical profiles free of forces of constraint with a specially designed stainless screw, S-MD51 LS. Fixed points are created by placing two screws in the elongated holes while flexible points consist of one screw.

Features and benefits:

  • Flexible design using fixed and flexible points.
  • 40 mm adjustment capability of the profiles on the wall brackets.
  • Powder coated bracket base plate for corrosion resistance.
  • Bracket length: 140–320 mm.
  • Brackets can be installed using a range of methods—anchors, screws and direct fastening.
  • Aluminium profiles according to EN 755-2; EN 573-3; EN 12020-2; EN 1090-3; EN AW 6063 T66 and EN1090.
  • Substructures can be designed with PROFIS Facade to create technically sound, cost-efficient solutions.
  • Thermal bridge calculation in accordance with EN ISO 10211-1.
  • Overlapping fastening of the panel.

Applications:

The system is suitable for ventilated facades in new and refurbishment projects with the following cladding materials:

  • Fibre-cement.
  • High pressure laminate (HPL).
  • Metal.
  • Composite.

General information

Uniclass 2015

Pr_20_85_07_04 Aluminium carrier railsPrimary

CAWS

G10/150 Steel framing system

G10/20 Steel framing system

H92/120 Rainscreen cladding

Specification data - Aluminium carrier rails

Product Reference

MFT-FOX VT-2L-Stulp

Brackets

-

Type

MFT-FOX VT M / L

Length

140–320 mm.

Fastener

HIT-HY

HRD-H

HSA-R

HST-R

HUS-HR

S-MD

Profiles

-

Type

MFT-L

MFT-STULP

Fastener

S-AD

S-MD51LS
