METAL Wallcoustic Element Horizon 1000/1100 - Acoustic Wall System

Verified by manufacturer 23 days ago

METAL Wallcoustic Horizon 1000

Knauf Ceiling Solutions Limited Variant:

METAL Wallcoustic Element is a range of wall solutions that help structure and define spaces and accentuate an area.

Jump to:
+44 (0)191 518 8600 Website

Application

Wall application for market segments such as office, education or transportation.

Description

METAL Wallcoustic Element is a range of wall solutions that help structure

and define spaces and accentuate an area. They provide a focus or create wall

sculptures that help control sound reverberation within a space.

■ Fully configurable solution, available with different edge details, simple and fast

installed by using a wall hanging kit.

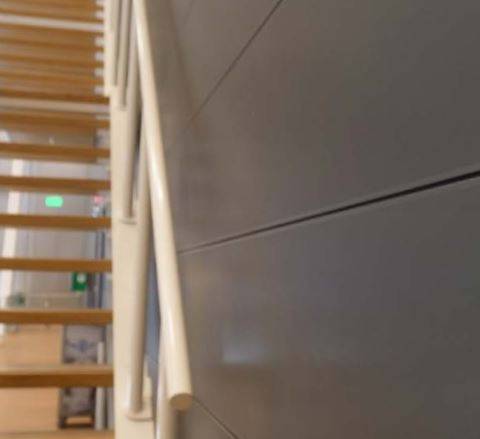

■ METAL Wallcoustic Horizon 1000 and METAL Wallcoustic Horizon 1100, are

hook-on wall systems without visible fasteners which enable faster installation.

Fully configurable large size panels, in either portrait or landscape orientation

■ Additional design options available as part of our Vario Design range.

■ Acoustic and architectural design elements for market segments such as office,

education or transportation.

General information

Color

White

Grey

Black

Other

Guidance for specification option:

Further RAL/ NCS colours on request.

Finish

Galvanized

Other

Material

Steel

Shape

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

-

Manufacturer guidance

Please refer to manufacturers guidance

Uniclass

Ss_25_25_75_05 Acoustic panel lining systemsPrimary

CAWS

K13/170 Acoustic panel lining

K13/170 Acoustic panel lining

Specification data - Acoustic panel lining systems

Classification data

Battens

Not required.

Acoustic insulation

Black acoustic fleece (VLSRX).
Other.

Guidance for specification option:

Further options available, see acoustic datasheet for details.

Panelling

-

Type

METAL Wallcoustic Element.

Guidance for specification option:

Panels are available in various sizes, with various edge options. Each panel has a perforated rear cover.

Consult manufacturer for details.

Surface material

Metal facings.

Surface finish

Smooth.

Guidance for specification option:

Unperforated.

Perforated - Rg 0701.
Perforated - Rg 0704.
Perforated - Rd 1522.
Perforated - Rg 2516.
Other.

Guidance for specification option:

Further options available, see acoustic datasheet for details.

Fasteners

C-Wall profile.

Guidance for specification option:

Suspension.

System accessories

Not required.
Perimeter details.
Corner details.
Connection details.

Guidance for specification option:

For windows/ doors.

Size:

-

Manufacturer guidance

Consult manufacturer's datasheet and insert requirement.

Colour

RAL 9016.
RAL 9010.
RAL 9006.
RAL 9007.
RAL 9005.
Other.

Guidance for specification option:

Further RAL/ NCS colours on request. Wood-effect on request.

Manufacturer guidance

Please see manufacturer's datasheet for light reflectance values.

Edge detail

Square-edged, hook-on.

Guidance for specification option:

With 5 mm gasket, and spacers on long and short edge.

Orientation

Horizontal (landscape).

Acoustical Performance

Sound absorption class: D.
Weighted sound absorption coefficient: 0.40–0.45 αw.
Noise reduction coefficient (NRC): 0.45–0.60.

Manufacturer guidance

To EN ISO 354.

Third-party certification

Cradle to Cradle: Silver.
Indoor Air Comfort: Gold.

Sustainability data

Contains Red List materials

No

Country of material origin

Austria

Country of product manufacture

Austria

Material

Steel

Recyclability

95%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

17.3 %

Expected Life

-

Manufacturer guidance

Please refer to EPD
