Description

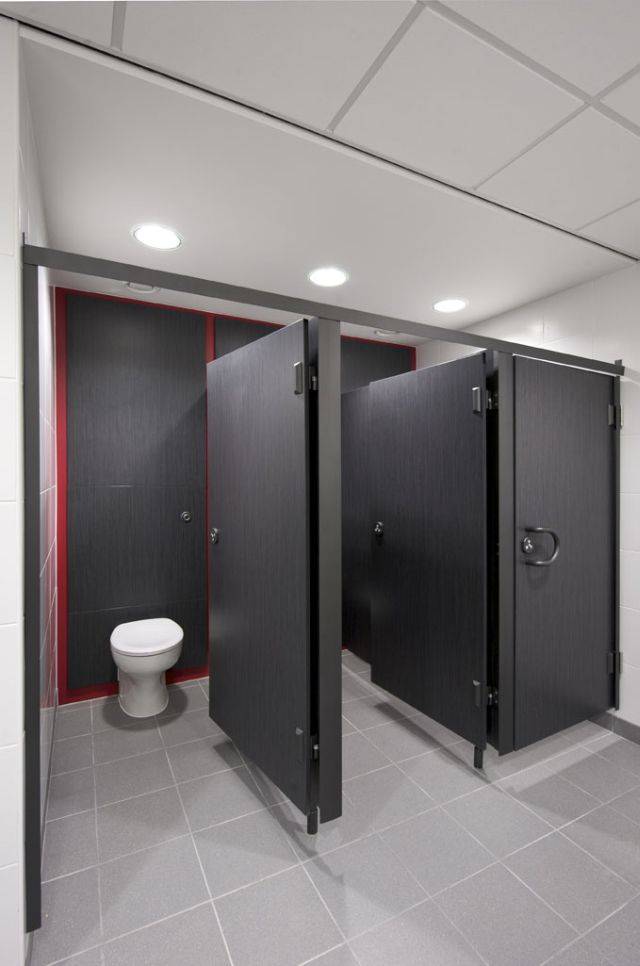

Minimalist yet hardwearing cubicle system which combines hidden strength with subtle style. Slimline pilasters and understated door fittings create a clean and contemporary appearance, whilst careful engineering gives durability.

Exceptional choice of colour combinations.

General information
Size

Standard

Overall height 1950 mm.

XT1 Extra tall

Overall height 2100 mm.

Uniclass 2015
Panel cubicle systems (Ss_25_12_60_60)Primary
Specification data - Panel cubicle systems
Product Reference

Merline SGL

Size

Standard

Overall height 1950 mm.

XT1 Extra tall

Overall height 2100 mm.

Over-door panels

Not required

Required

Colour/ Finish -
Divisions

Insert colour reference or refer to schedule.

Doors

As divisions

Colour

Insert colour reference or refer to schedule.

Pilasters

Powder coated, colour

Insert colour reference.

Ironmongery

Fall-to-close hinges

Fall-to-open hinges

Standard product features

Size:

- Standard height:

  • Overall height 1950 including 150 mm clearance gap.
  • Divisions (h x w): 1800 x 1500–1800 mm.
  • Door: 1800 mm high.
  • Pilaster (centre, h x w): 1800 x 84 mm.
  • Pilaster (end, h x w): 1800 x 31–56 mm.

- XT1 Extra tall:

  • Overall height 1950 including 150 mm clearance gap.
  • Divisions (h x w): 2000 x 1500–1800 mm.
  • Door: 2000 mm high.
  • Pilaster (centre, h x w): 2000 x 84 mm.
  • Pilaster (end, h x w): 2000 x 31–56 mm.

Divisions and doors:

  • Core Material: 12.5 mm solid grade laminate.
  • Colour/ Finish: Solid grade laminate chosen from Maxwood Colour Selector.
  • Edge treatment: All edges radiused and polished, with rounded corners.

Headrail:

Extruded aluminium with powder coated finish.

Pilasters:

  • Construction: High quality extruded aluminium profile designed to accept part giving additional strength with bolt through fixings.
  • Colour/Finish: Powder coated in a range of 11 textured finishes. Other RAL colours available on request.

Ironmongery/ Accessories:

  • Indicator Bolt: DDA-compliant highly-visible indicator with emergency release.
  • Division Fixing: Continuous aluminium channel with bolt-through fixings.
  • Hinges: Very robust aluminium fall-to-close hinges through-bolted with decorate faceplate.
  • Support Foot: Fully adjustable aluminium leg with tolerance for uneven floors.
  • Colour/Finish: All ironmongery powder coated to selected pilaster colour.
