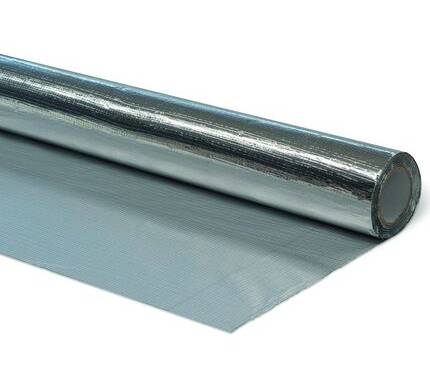

ME006 FR AVCL - Air and Vapour Control Membrane
Verified by manufacturer 17 hours ago
Aluminium foil faced glass fibre reinforced, air and vapour control membrane with a reaction to fire Class B-s1, d0 to EN 13501-1.
Application
ME006 should be installed in accordance with ‘BS 5250: 2021 Management of moisture in buildings. Code of practice’. ME006 should be situated on the warm side of the insulation layer. The following assumes the installation of ME006 to an SFS framed wall installed between concrete floor slabs and columns.
Apply ME006 from the roll, allowing a 50 mm overlap at the top and bottom onto the soffit and floor slab. All horizontal and vertical overlaps should be a minimum 100 mm and sealed using ME355 FR Sealing Tape (Alu).
For sealing window and door interfaces, the ME006 should be turned and bonded into the reveal. The complete perimeter interface with the window (or door) should then be sealed using a compatible illbruck tape or membrane ensuring a minimum 20 mm bond to window frame and 50 mm overlap back onto the ME006.
Description
ME006 FR AVCL is an aluminium foil faced glass fibre reinforced, air and vapour control membrane with a reaction to fire Class B-s1, d0 to EN 13501-1. ME006 FR AVCL is used on the interior side of lightweight steel and timber frame constructions to provide an air and vapour tight layer to control the passage of air and moisture.
ME006 FR AVCL is highly suited to construction projects designated as "relevant buildings" as defined in Approved Document B of the Building Regulations for England and Wales.
Features and benefits:
- Class B-s1, d0 to EN 13501-1.
- Air and vapour tight, can be used to comply with Passiv Haus standards.
- Lightweight material making it quick and easy to install.
- Suitable for use with ME355 FR sealing tape to achieve a full interior membrane system.
- High mechanical performance.
General information
Color | Silver |
Finish | Metallic |
Material | Aluminium Glass |
Shape | Other |
Length | 50000 mm |
Width | 1020 mm 1500 mm |
Uniclass | |
CAWS | P10/60 Air and vapour control layer P10/310 Air and vapour control layer H30/261 Air and vapour control membrane H31/261 Air and vapour control membrane H31/45 Air and vapour control membrane |
SKU Code | ME006 |
Specification data - Aluminium-based membranes
Classification data | |
Product reference | ME006 FR AVCL. |
Standard | To EN 13984, Type B. |
Performance characteristics | To EN 13501-1, Class B-s1, d0. |
Product characteristics | |
Reinforcement | Glass fibre. |
Roll dimensions | 1.02 x 50 m. 1.50 x 50 m. |
Mass | To EN 1849-2, 90 g/m². Manufacturer guidanceNominal. |
Water vapour resistance | To EN 1931, >7500 MNs/g. |
Water vapour transmission | To EN 1931, Sd >1500 m. |
Air permeability | To EN 12114, ≤0.1 m³/m².h@50 Pa. |
Application temperature | +5°C to +30°C. |
Service temperature | -40°C to +100°C. |
Sustainability data
Material | Aluminium Glass |
