Maxi Box

Maxi Box

Troax (UK) Ltd

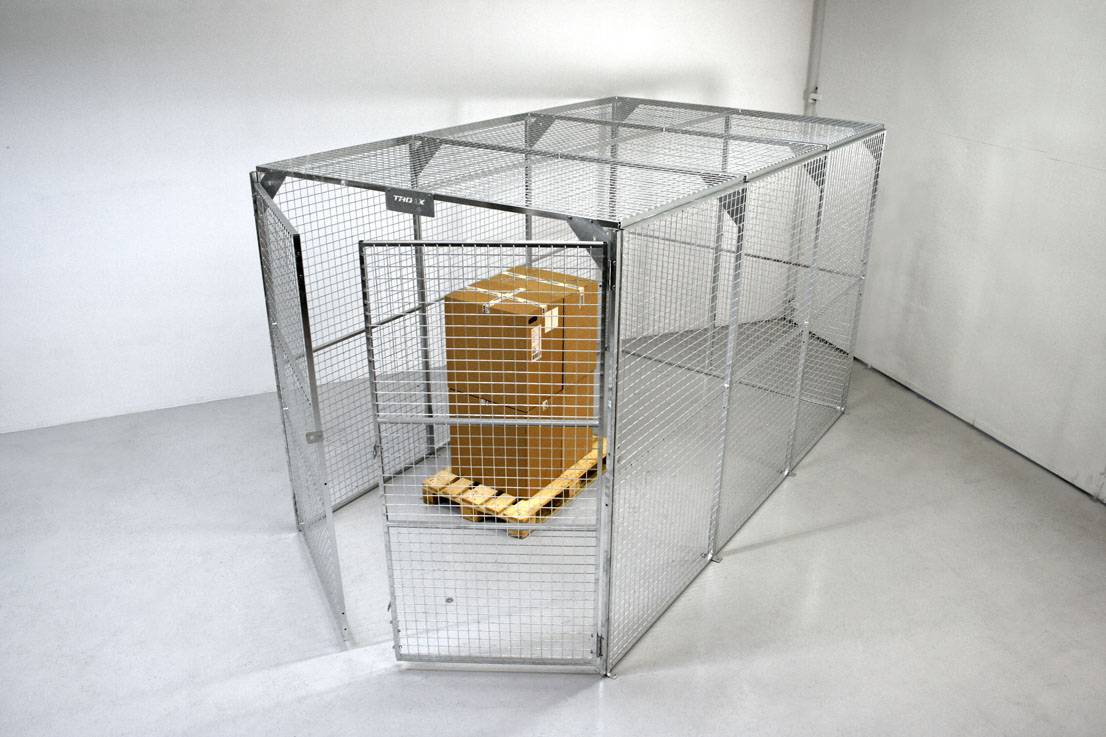

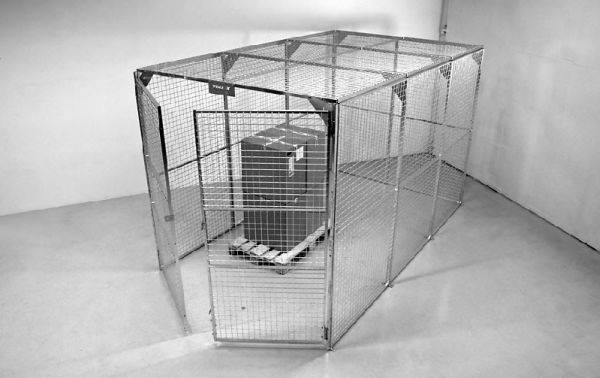

Troax Maxi Box is a four sided mesh storage cage enclosure with a mesh roof, with double hinged doors on the front with a choice of depths, available in painted and hot-dip galvanised finish.

Jump to:
+44 (0)1793 542000 www.troax.com/gb

Application

Suitable for providing secure indoor and outdoor storage. Can be used for storing gas bottles, hazardous materials, and plant machinery.

Description

Maxi Box is designed for the internal and external storage of gas bottles, hazardous materials and valuable plant and machinery items. The box is easily erected and dismantled for storage and transport, and the size of the box is easily changed to accommodate individual site storage applications. It is fitted with roof sections and large double door for easy access for pallet trucks and trolleys. Double doors and padlock hasps are fitted as standard.

Features and benefits:

Doors open 180°.

Application:

Suitable for providing secure indoor and outdoor storage. Can be used for storing gas bottles, hazardous materials, and plant machinery.

General information

Features

Doors open 180°

Material

Carbon steel

Shape

Rectangular

Size

2200mm wide depth in increments of 1200mm

WarrantyDescription

Our warranty shall apply when the products supplied by Troax and installed in accordance with our standard installation instructions or by Troax installers and will be subject to assessment by a Troax representative if deemed to be required

Uniclass 2015

Pr_40_30_75_77 Security cagesPrimary

CAWS

B91/325 Cage

B91/395 Storage unit

N10/135 Storage and display units

Specification data - Security cages

Product Reference

Maxi Box No. 1: Ref UK800295

Depth: 1200 mm; Finish: Grey RAL 7037.

Maxi Box No. 1: Ref UK800296

Depth: 1200 mm; Finish: Hot dip galvanized.

Maxi Box No. 2: Ref UK800293

Depth: 2400 mm; Finish: Grey RAL 7037.

Maxi Box No. 2: Ref UK800294

Depth: 2400 mm; Finish: Hot dip galvanized.

Maxi Box No. 3: Ref UK800290

Depth: 3600 mm; Finish: Grey RAL 7037.

Maxi Box No. 3: Ref UK800291

Depth: 3600 mm; Finish: Hot dip galvanized.

Maxi Box No. 4: Ref UK800288

Depth: 4800 mm; Finish: Grey RAL 7037.

Maxi Box No. 4: Ref UK800289

Depth: 4800 mm; Finish: Hot dip galvanized.

Maxi Box No. 5: Ref UK800286

Depth: 6000 mm; Finish: Grey RAL 7037.

Maxi Box No. 5: Ref UK800287

Depth: 6000 mm; Finish: Hot dip galvanized.

Form

Four sided

Dimensions

-

Width (nominal)

2200 mm

Height (nominal)

2200 mm

Frame

-

FrameMaterial

Carbon steel

Section size

Horizontal tubes: 20 x 30 mm, vertical tubes: 20 x 30 mm

Infill panels

-

Material

UX 450 panel

50 x 50 mm (3.00 x 3.75 mm wire) welded mesh.

UR 350 panel

50 x 50 mm (2.5 x 2.5 mm wire) welded mesh.

Door

-

Operation

Hinged single leaf, hinged double leaf

Lock

Padlock and Euro Cylinder locks

Roof

Specification as panels

Standard product features

Features:

Doors open 180°.

Finish:

Hot dip galvanized or powder coated.

Material:

Carbon steel.

Size:

2200 x 1200 mm (w x h).

Warranty description:

The warranty shall apply when the products supplied by Troax and installed in accordance with the standard installation instructions or by Troax installers and will be subject to assessment by a Troax representative if deemed to be required.

Country of origin:

Sweden.

Digital objects

Platform Compatible Version Certified to
IFC

IFC2X3

2

1.3
Revit

Revit 2016

3

2.0
Download now from NBS National BIM Library
