Application

For fixing to a structural wall.

Only for installation by competent design/ installation contractors.

Please ensure to accommodate for deviations in the primary support structure.

Description

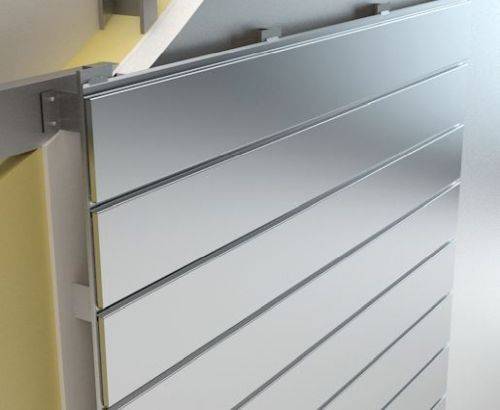

Fully drained and back-ventilated rainscreen facade system, with a choice of integrated panels which are fitted to the adjustable PSP Matrix-T carrier system.

Features and benefits:

  • Allows ventilation and drainage to the cavity in line with standard rainscreen principles.
  • Provides an aesthetically pleasing external envelope solution.
  • Quick installation.
  • Can be adapted to suit specific project requirements.
  • Components such as insulation, membranes, and isolators can be incorporated - consult manufacturer for details.
  • Available in a range of configurations.
  • Developed to provide a cost effective single skin panel system, based on narrow face widths.
  • Fully tested and accredited to Centre for Window and Cladding Technology (CWCT) standards including ‘Standard for walls with ventilated rainscreen’ and ‘Standard for testing of ventilated rainscreen'.

PSP Architectural have passed the following tests which are required by the CWCT for rainscreen systems:

  • Wind resistance – serviceability.
  • Wind resistance – safety.
  • Water tightness – dynamic.
  • Water tightness – hose.
  • Impact resistance.

Consult manufacturer for further details.

Applications:

For fixing to a structural wall.

Only for installation by competent design/ installation contractors.

Please ensure to accommodate for deviations in the primary support structure.

General information
Specification data - Drained and back-ventilated rainscreen cladding systems
Product Reference

PSP Matrix IP Interlocking Panel System

Design

Insert drawing

Insert reference

Support -
Primary structure/ substrate

Concrete framing

Dense concrete blockwork/ brickwork

Lightweight steel framing

Structural steel framing

Timber frame

Secondary support/ frame

Metal rail Matrix-T adjustable carrier system

Panel -
Panel Type

CNC pressed

Rolled

Material

Aluminium substrate of 1000 series alloy

Aluminium substrate of anodizing quality (i.e. J57S)

Consult manufacturer for details.

Galvatite substrate of hot-dipped zinc coated steel to BS EN 10147

ZINC

Copper

Stainless Steel

Finish

HPS200

Anodized

Natural pre-weathered

Polyvinylidene Fluoride (PVDF)

Post powder-coated

Consult manufacturer and insert colour requirement.

Prisma®

Insert colour requirement.

Thickness

0.7 mm

0.8 mm

0.9 mm

1.0 mm

1.2 mm

2.0 mm

Vapour control layer (VCL) -
Type

Polyethylene with reinforced high-density polyethylene (HPDE) grid

Minimum vapour resistance of 530 MNs/g.

Penetrations and abutments

Seal to vapour control layer. If necessary prime substrates to achieve full bond

Sheet laps

Not less than 150 mm, seal with tape

Sheet tape -
Type

Double sided sealant with vapour resistivity not less than the vapour control sheet

Thermal insulation -
Material

Consult manufacturer and insert requirements.

Thickness

Consult manufacturer and insert requirements.

Installation method

Consult manufacturer and insert requirements.

Breather membrane -
Type

Spun bond polypropylene membrane

Penetrations and abutments

Attach to breather membrane with tape. Achieve full bond

Laps

Not less than 150 mm, bond with tape. Achieve full bond

Tape

As recommended by breather membrane manufacturer

Joint -
Joint type

Reveal joints

No sealant to be used.

Joint width

5 mm (horizontal and vertical reveals)

10 mm (horizontal and vertical reveals)

15 mm (horizontal and vertical reveals)

20 mm (horizontal and vertical reveals)

Cavity fire barrier

Consult manufacturer and insert requirements.

Mechanical fixings

Aluminium

Compliant with BS 1474 and BS EN 755.

Mild steel

To BS 4190, suitable for galvanizing or other protective coating. Consult manufacturer for details.

Stainless steel

To BS EN ISO 3506 grade A2 generally, grade A4 when used in severely corrosive environments.

Fasteners

Stainless steel

Consult manufacturer recommendations and details.

Sealant

One part polysulfide to BS 5215

One part polyurethane

Silicone to BS 5889

Two part polysulfide to BS 4254

Two part polyurethane

Accessories/ Other requirements

Not required

Stainless steel fixing clips

For panels over 1800 mm long.

Standard product features

Aluminium framing sections:

Manufactured in accordance with BS EN 755 alloy EN AW-6063, and suitable for the specified finish. Structural members to comply with BS 8118.

Air gap:

≥38 mm.

Product Options

Design:

Required information includes:

  • A schedule of detailed drawings.
  • A schedule of loads that will be transmitted from the rainscreen cladding to the structure.
  • Proposed fixing details and systems relevant to the structural design and construction with methods of adjustment and tolerances.
  • A schedule of all fabrication tolerances/ size tolerances.
  • A detailed testing programme in compliance with the main contract master programme.
  • A detailed fabrication and installation programme in compliance with the main contract master programme.
  • A quality plan in compliance with the CWCT ‘Guide to good practice for facades’, section 6.
  • Proposals to support any outstanding applications for Building Regulation consents or relaxations.

Support:

- Secondary support/ frame:

Includes 3 mm-thick aluminium brackets with 2 mm-thick aluminium vertical ‘T’ and ‘L’ rails, extruded to BS 1474

Vapour control layer (VCL):

To be installed with no breaks and minimum joints.

Thermal insulation:

Exact thickness can be determined by thermal analysis of complete wall build up. Consult manufacturer for details.

Breather membrane:

Junctions at flashings, sills, and gutters. Overlap and allow free drainage to exterior.

Accessories/ Other requirements:

A range of other accessories is available. Consult manufacturer for details and insert requirements.
