MatchFast® Stitching Fasteners

Application

For mechanically fixing (stitching) two metal sheets up to 1mm thickness together.

For use in the following locations:

  • Buildings in residential and commercial settings with humidity class of Class 1, Class 2 or Class 3 to BS 5250.
  • Buildings with an internal temperature range of -45°C to 50°C.

To be fixed with Fixfast MF1165.

Fixfast products must be used as a complete system with tools and accessories as recommended - consult manufacturer for details.

Description

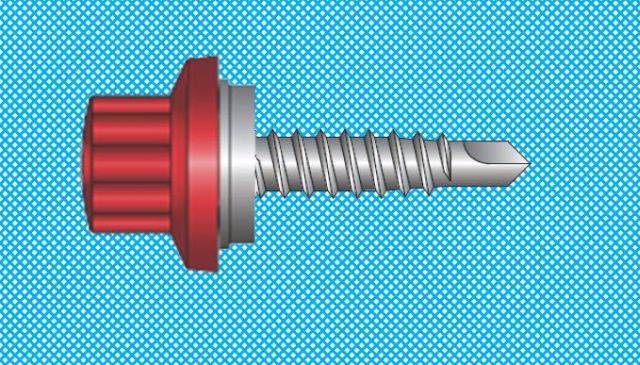

Carbon steel self-drilling fasteners with moulded head for roofing and cladding.

Features and benefits:

  • High quality carbon steel with SAE1022 hardened case.
  • Good drilling and tapping performance.
  • High pull-out and shear performance.
  • Colour moulded head.
  • Free-spin design ensures fastener cannot be overdriven.
  • Manufactured in accordance with ISO 9001 and ISO 14001 Quality and Management Systems.

Applications:

For mechanically fixing (stitching) two metal sheets up to 1mm thickness together.

For use in the following locations:

  • Buildings in residential and commercial settings with humidity class of Class 1, Class 2 or Class 3 to BS 5250.
  • Buildings with an internal temperature range of -45°C to 50°C.

To be fixed with Fixfast MF1165.

Fixfast products must be used as a complete system with tools and accessories as recommended - consult manufacturer for details.

General information

Material

Steel SAE1022 case, hardened

Uniclass 2015

Pr_20_29_76_76 Self-drilling screwsPrimary

CAWS

H31/10 Metal

H31/110 Metal

H31/120 Metal

H43/10 Metal insulating sandwich panel

H43/120 Metal insulating sandwich panel

H67/110 Metal roof tiling

H67/120 Metal roof tiling with counterbattens

H67/130 Metal vertical tiling

H67/3 Metal roof tiling

H67/5 Metal roof tiling with counterbattens

H67/8 Metal vertical tiling

Specification data - Self-drilling screws

Product Reference

MatchFast® Stitching Fasteners, MF2-6.3 x 25

25 x 6.3 mm (l x diameter).

MatchFast® Stitching Fasteners, MF2-6.3 x 25

25 x 6.3 mm (l x diameter).

Washer

Required

Consult manufacturer for information.

Not required

Colour

Consult manufacturer and insert requirement.

Standard product features

Material:

Steel SAE1022 case, hardened.

Coating:

Multiple layer organic.

Head type:

Bi-Hex, 11 mm.

Minimum penetration (Light steel):

Two sheets of up to 1 mm thickness.

Durability class:

  • Interior environments: C1 (25).
  • Semi-interior: 20.
  • Urban C2 (12).
  • Rural: C3.
  • Industrial/ coastal: C4.
  • Marine: C5.

Technical characteristics:

- Characteristic values:

  • Pull out values (axial load resistance), to BS 5427: On 6.3 mm steel with A15 washer: 0.68 kN; on 8 mm steel with A15 washer: 0.91 kN.
  • Pull through values (axial load resistance): 6.3 mm steel with A15 washer: 3.38 kN; 8 mm steel with A15 washer: 3.38 kN.
  • Shear values (lateral load resistance): 6.3 mm steel with A15 washer: 1.28 kN; 8 mm steel with A15 washer: 1.53 kN.

- Design values:

  • Pull out values (axial load resistance), to BS 5427: On 6.3 mm steel with A15 washer: 0.51 kN; on 8 mm steel with A15 washer: 0.68 kN.
  • Pull through values (axial load resistance): 6.3 mm steel with A15 washer: 2.54 kN; 8 mm steel with A15 washer: 2.54 kN.
  • Shear values (lateral load resistance): 6.3 mm steel with A15 washer: 0.96 kN; 8 mm steel with A15 washer: 1.15 kN.

Other figures and specific testing are available on request - consult manufacturer for information.
