MatchFast® Fasteners for 4–12 mm Steel

Application

For mechanically fixing steel sheeting systems to heavy steel purlins and sections.

For use in the following locations:

  • Buildings in residential and commercial settings with humidity class of Class 1, Class 2 or Class 3 to BS 5250.
  • Buildings with an internal temperature range of -45°C to 50°C.

To be fixed with FixFast MF1165.

Fixfast products must be used as a complete system with tools and accessories as recommended - consult manufacturer for details.

Description

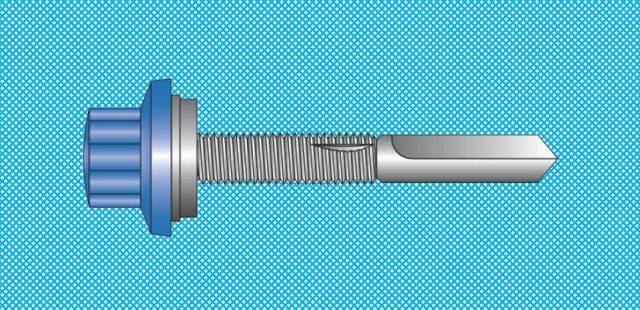

Carbon steel self-drilling fasteners with moulded head for roofing and cladding (4–12 mm).

Features and benefits:

  • Manufactured from high quality carbon steel with SAE1022 hardened case.
  • High pull-out and shear performance.
  • Good drilling and tapping performance.
  • Colour moulded head.
  • Manufactured in accordance with ISO 9001 and ISO 14001 Quality and Management Systems.

Applications:

For mechanically fixing steel sheeting systems to heavy steel purlins and sections.

For use in the following locations:

  • Buildings in residential and commercial settings with humidity class of Class 1, Class 2 or Class 3 to BS 5250.
  • Buildings with an internal temperature range of -45°C to 50°C.

To be fixed with FixFast MF1165.

Fixfast products must be used as a complete system with tools and accessories as recommended - consult manufacturer for details.

General information

Material

Steel SAE1022 case, hardened

Uniclass 2015

Pr_20_29_76_76 Self-drilling screwsPrimary

CAWS

H31/10 Metal

H31/110 Metal

H31/120 Metal

H43/10 Metal insulating sandwich panel

Specification data - Self-drilling screws

Product Reference

MatchFast® Fasteners for 4–2 mm Steel, MF12-5.5 x 40

Washer

Required

Consult manufacturer for information.

Not required

Colour

Consult manufacturer and insert requirement.

Standard product features

Size (l x diameter):

40 x 5.5 mm.

Material:

Steel SAE1022 case, hardened.

Coating:

Multiple layer organic.

Head type:

Bi-Hex 11mm.

Drilling capacity:

4–12 mm (steel).

Minimum penetration (heavy steel purlins):

15 mm (through underside).

Build up:

0–8 mm (dependent on washer used).

Durability class:

  • Interior environments: C1 (25).
  • Semi-interior: 20.
  • Urban: C2 (12).
  • Rural: C3.
  • Industrial/ coastal: C4.
  • Marine: C5.

Technical characteristics:

- Characteristic values:

  • Pull out values (axial load resistance), to BS 5427: On 4 mm steel: 5.44 kN; on 6 mm steel: 12.75 kN; on 8 mm steel 13.92 kN; on 12 mm steel: 13.92 kN.
  • Pull through values (axial load resistance): With A15 washer: 2.34 kN.
  • Shear values (lateral load resistance): 4 mm steel: 2.34 kN.

- Design values:

  • Pull out values (axial load resistance), to BS 5427: On 4 mm steel: 4.09 kN; on 6 mm steel: 9.59 kN; on 8 mm steel 10.47 kN; on 12 mm steel: 10.47 kN.
  • Pull through values (axial load resistance): With A15 washer: 2.34 kN.
  • Shear values (lateral load resistance): 4 mm steel: 1.76 kN.

Other figures and specific testing are available on request - consult manufacturer for information.
