MatchFast® A3/304 Stainless Steel Stitching Fasteners
Application

For mechanically fixing (stitching) two metal sheets up to 1mm thick together.

For use in the following locations:

  • Buildings in residential and commercial settings with humidity class of Class 1, Class 2, Class 3 or Class 4 to BS 5250.
  • Buildings with an internal temperature range of -45°C to 50°C.
  • Coastal locations.

To be fixed with FixFast MF1165.

Fixfast products must be used as a complete system with tools and accessories as recommended - consult manufacturer for details.

Description

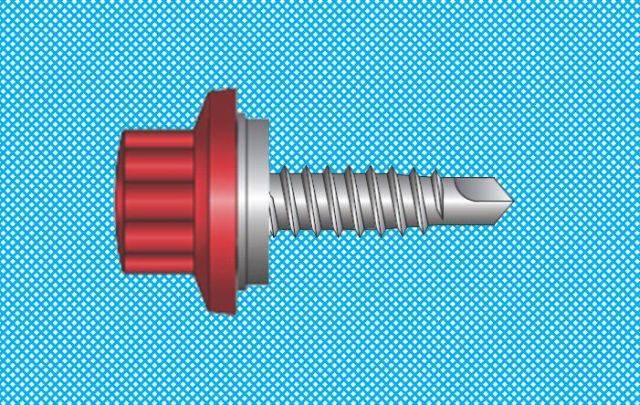

Stainless steel self-drilling fasteners with moulded head for roofing and cladding.

Features and benefits:

  • Grade 1.4301 (304), A2 stainless steel is used for optimum resistance to corrosion.
  • Bi-metal, manufactured for superior drilling performance.
  • Good pull-out and shear performance.
  • Free-spin design helps prevent damage arising from overdriving the fastener.
  • Colour moulded head.
  • Manufactured in accordance with ISO 9001 and ISO 14001 Quality and Management Systems.

Applications:

For mechanically fixing (stitching) two metal sheets up to 1mm thick together.

For use in the following locations:

  • Buildings in residential and commercial settings with humidity class of Class 1, Class 2, Class 3 or Class 4 to BS 5250.
  • Buildings with an internal temperature range of -45°C to 50°C.
  • Coastal locations.

To be fixed with FixFast MF1165.

Fixfast products must be used as a complete system with tools and accessories as recommended - consult manufacturer for details.

General information
Material

1.4301 stainless steel (304M), with carbon steel case hardened welded point and UV-stabilized nylon moulded head

Uniclass 2015
Pr_20_29_76_76 Self-drilling screwsPrimary
CAWS

H31/10 Metal

H31/110 Metal

H31/120 Metal

H67/110 Metal roof tiling

H67/120 Metal roof tiling with counterbattens

H67/3 Metal roof tiling

H67/5 Metal roof tiling with counterbattens

Specification data - Self-drilling screws
Product Reference

MatchFast® A3/304 Stainless Steel Stitching Fasteners for Two 1 mm Thick Sheets, MF2-SS-A15-4.8 x 25

25 x 4.8 (l x diameter).

MatchFast® A3/304 Stainless Steel Stitching Fasteners for Two 1 mm Thick Sheets, MF2-SS-A15-6.3 x 25

25 x 6.3 (l x diameter).

Washer

Required

Consult manufacturer for information.

Not required

Colour

Consult manufacturer and insert requirement.

Standard product features

Material:

1.4301 stainless steel (304M), with carbon steel case hardened welded point and UV-stabilized nylon moulded head.

Coating:

Multiple layer organic.

Head type:

Bi-Hex, 11 mm.

Drilling capacity:

Two steel sheets up to 1 mm thickness each.

Minimum penetration (sheet metal):

19 mm (through underside).

Durability class:

  • Interior environments: C1 (30).
  • Semi-interior: 25.
  • Urban: C2 (25).
  • Rural: C3 (25).
  • Industrial/ coastal: C4 (15).
  • Marine: C5.

Technical characteristics:

- Characteristic values:

  • Pull out values (axial load resistance), to BS 5427: On 4.8 mm steel: 0.54 kN; on 6.3 mm steel: 0.60 kN.
  • Pull through values (axial load resistance): 4.8 mm steel with A15 washer: 4.01 kN; 6.3 mm steel with A15 washer: 3.60 kN.
  • Shear values (lateral load resistance): 4.8 mm steel: 1.05 kN; 6.3 steel: 1.56 kN.

- Design values:

  • Pull out values (axial load resistance), to BS 5427: On 4.8 mm steel: 0.40 kN; on 6.3 mm steel: 0.45 kN.
  • Pull through values (axial load resistance): 4.8 mm steel with A15 washer: 3.01 kN; 6.3 mm steel with A15 washer: 2.71 kN.
  • Shear values (lateral load resistance): 4.8 mm steel: 0.79 kN; 6.3 steel: 1.18 kN.

Other figures and specific testing are available on request - consult manufacturer for information.
