Masterseal 754 Fully Bonded FPO Sheet Membrane System
Application

  • Below grade concrete slabs.
  • Below grade walls with both single (blindside forming) and double-faced formwork (open cut).
  • For prefabricated construction.
  • Residential and industrial buildings such as housing, commercial, leisure facilities, manufacturing plants and warehouses.
  • Engineered structures, such as retaining walls, tunnel galleries, potable water tanks, waste water storage treatment structures and tanks.

Synthetic waterproofing membranes applications should be carried out by approved applicators. The membrane does not have UV resistance but can be exposed during the application of three months - consult manufacturer for details.

Description

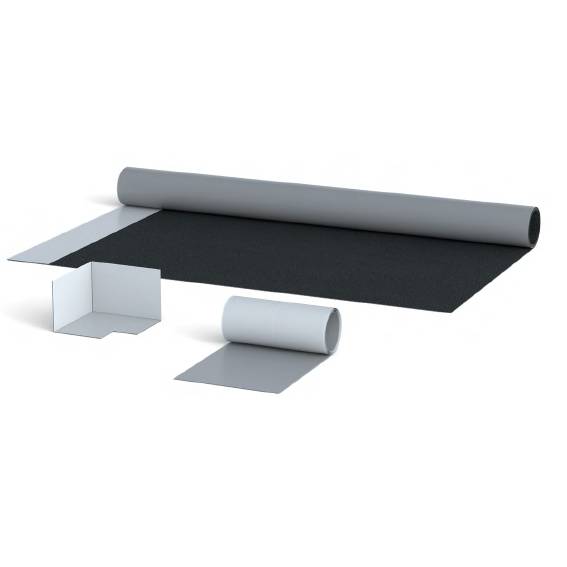

Pre-applied sheet membrane waterproofing system, consisting of a highly flexible polyolefin membrane and non-woven fleece. The system provides a durable, mechanical bond which is created when the fleece is adhered to fresh concrete. The membrane is cold applied, installed with heat or open flames and before any steel reinforcement is placed/ concrete is poured.

Features and benefits:

  • No need for protection screed.
  • Saves on both time and labour.
  • Fast installation: layout, jointing and detailing.
  • Weather resistant, with temporary UV-stability during installation.
  • No lateral water migration will occur in the event of damage.
  • Resistant to aggressive mediums in soil.
  • Crack bridging ability.
  • Overlapping areas are self-adhesive. No need for any extra tape to overlap.
  • High elasticity at low temperatures.
  • It is resistant to 5 bar water pressure.
  • High mechanical impact resistance.

Application:

  • Below grade concrete slabs.
  • Below grade walls with both single (blindside forming) and double-faced formwork (open cut).
  • For prefabricated construction.
  • Residential and industrial buildings such as housing, commercial, leisure facilities, manufacturing plants and warehouses.
  • Engineered structures, such as retaining walls, tunnel galleries, potable water tanks, waste water storage treatment structures and tanks.

Synthetic waterproofing membranes applications should be carried out by approved applicators. The membrane does not have UV resistance but can be exposed during the application of three months - consult manufacturer for details.

General information
Finish

Smooth

Color

Grey membrance with black fleece

Features

No need for protection screed, Provides time and labor saving, Fast installation: layout, jointing and detailing, Weather resistant with temporary UV-stability, during installation. High elasticity at low temperatures, It is resistant to 5 bar water pressure, High mechanical impact resistance, No lateral water migration in the event of, damage, Resistant to aggressive mediums in soil, Crack bridging ability, Overlapping areas are self-adhesive, No, need for any extra tape to overlap

Material

Flexible polyolefin membrane

Size

20000 x 1000 x 1.6 mm

Uniclass 2015
Pr_25_57_51_66 Polymeric membranesPrimary
Specification data - Polymeric membranes
Product Reference

MasterSeal 754

ProductInformation

assets.master-builders-solutions.basf.com/Shared%20Documents/PDF/English%20(Middle%20East)/TDS/MasterSeal/basf-masterseal-754-tds.pdf

Standard product features

Colour:

  • Membrane: Grey.
  • Fleece: Black.

Technical characteristics:

  • Weight: 850 g/m² (±75 g/m²).
  • Resistance to temperature: -30°C to 60°C.
  • Tear resistance (length-wise, to DIN EN 12311-2, Method A): 400 N/ 50 mm ≥ 300 N/ 50 mm.
  • Tear resistance (across, to DIN EN 12311-2, Method A): 340 N/ 50 mm ≥ 250 N/ 50 mm.
  • Elongation at break (longitudinal, to DIN EN 12311-2, Method A: 90% ≥ 75%.
  • Elongation at break (lateral, to DIN EN 12311-2, Method A): 120% ≥ 85%.
  • Tear resistance (nail shank, to DIN EN 12310-1): 370 N ≥ 300 N.
  • Tear resistance (nail shank, to DIN EN 12310-1): 380 N ≥ 300 N.
  • Water vapour permeability (to DIN EN 1931, Method B): 60 m ≥ 40 m.
  • Water tightness (to DIN EN 1928-A - 60 kPa/ 24 Std): Watertight.
  • Water tightness (to DIN EN 1928-A - 400 kPa/ 72 Std): Watertight.
  • Water migration test (non-woven area): Maximum 5-bar.
  • Reaction to fire (to DIN ISO 11925-2, EN 13501-1): Class E.
  • Chemical resistance: Resistant to a wide range of chemicals.

Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2016 1 2.0
IFC
- 1 2.0
Download now from NBS National BIM Library
