Bracket angle support complete with welded brackets for steel and concrete frames.

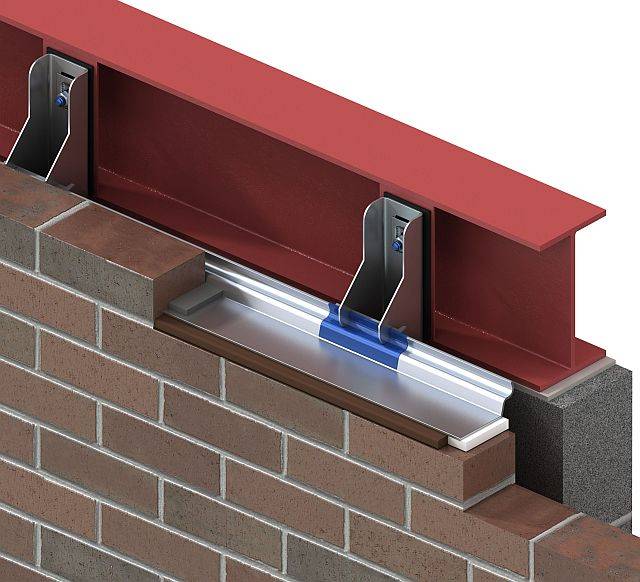

Bracket angle support suitable for use in supporting masonry systems to concrete frames and steel frames over 9 m in height. Designed to suit cavities greater than 40 mm.

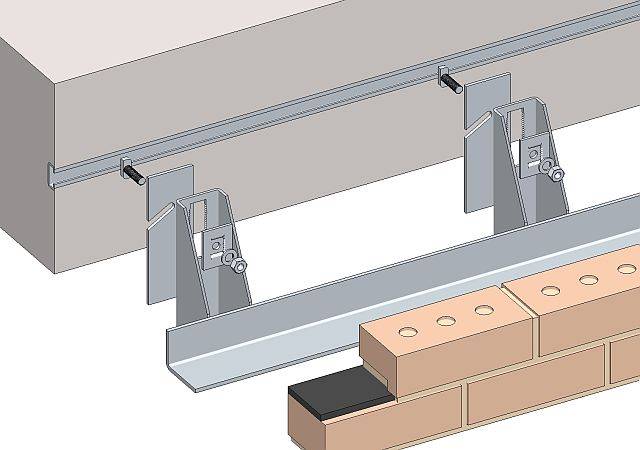

Masonry support bracket system comprising of a continuous thin angle support complete with welded brackets incorporating a serrated slot and adjustment washer. The unit allows for adjustment in all three planes. Casting WC38 cast-in channels into the edge of the slab provides almost unlimited horizontal adjustment, while the Wincro serrated slot fixing gives vertical adjustment of ± 26 mm. Lateral adjustment is provided by the use of stainless steel packing shims between the system and structure.
Type:
Features and benefits:
Color | Silver |
Finish | Mill Smooth |
Material | Stainless steel Guidance for specification option: Grade 1.4301 (304), standard. Grade 1.4401 (316), optional. |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 25 year Guidance for specification option: Consult manufacturer for further details. |
Uniclass | |
CAWS | F30/265 Support systems |
Classification data | |
Material | Stainless steel, grade 1.4301 (304). Guidance for specification option: Standard. Stainless steel, grade 1.4401 (316). Guidance for specification option: Optional. |
Accessories | None. WC38. Guidance for specification option: 38/17 cast-in channel with infill and lugs (for casting into slabs). Soffit Hanger System to suit 1 brick high soldier. Soffit Hanger System to suit ½ brick high soldier. Cavity closure plate. |
Integral accessories | Isolation patches and neoprene washers. Guidance for specification option: To eliminate the effects of bimetallic corrosion in steel frame applications. Manufacturer guidanceSupplied with. |
Fixing | T-Head bolts. Guidance for specification option: Into cast-in channels for fixing to concrete-framed structures. Site-drilled expansion bolts. Guidance for specification option: For fixing to concrete-framed structures. Resin-anchor products. Guidance for specification option: For fixing to concrete-framed structures. Coated setscrews. Guidance for specification option: For fixing to steel-framed structures. Wincro Grip Bolt. Guidance for specification option: For hollow fixing when fixing to steel-framed structures. |
Configurations | Standard arrangement using cast in channel to slab edge. |
Sizes | Guidance for specification option: Insert requirements, or 'As drawing'. |
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | Stainless steel Guidance for specification option: Grade 1.4301 (304), standard. Grade 1.4401 (316), optional. |
Recyclability | Stainless Steel is highly recyclable |
Expected Life | 25 year |
