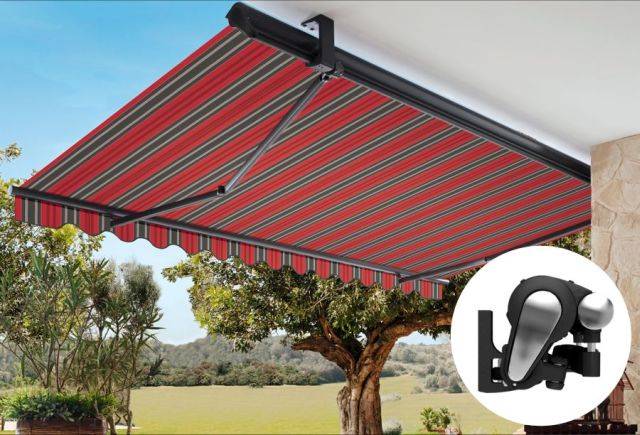

Markilux 1710
Aluminium cassette awning.
Elegant cover cassette manufactured from extruded aluminium. The special cassette shape surrounds the roller tube even when the awning is extended, thus creating an overall harmonious appearance. The transition from torque bar to roller tube is curved and homogeneous. Side caps, available in polished chrome, offer an optional designer touch.
Features:
- Attractive front profile made of extruded aluminium with integrated gutter and water drainage spouts.
- Sturdy, round steel torque bar, 50 mm diameter, to prevent twist and deflection.
- The 85 mm roller tubes ensure the highest stiffness and the best possible cover winding characteristics even at the largest widths.
- The extremely sturdy awning construction makes it possible to shade even very large areas safely.
- Unique arm technology with power transference by way of the highly tear-resistant bionic tendon made of high-tech fibres, achieving at least 50 000 cycles in tests by the Fraunhofer Institute.
Features | Attractive front profile made of extruded aluminium with integrated gutter and water drainage spouts Sturdy, round steel torque bar, 50 mm diameter, to prevent twist and deflection The 85 mm roller tubes ensure the highest stiffness and the best possible cover winding characteristics even at the largest widths The extremely sturdy awning construction makes it possible to shade even very large areas safely Unique arm technology with power transference by way of the highly tear-resistant bionic tendon made of high-tech fibres, achieving at least 50 000 cycles in tests by the Fraunhofer Institute |
Uniclass 2015 | |
CAWS | B91/330 Canopy |
Product Reference | Markilux 1710 |
Awning colour | Available in non-standard RAL colours; insert requirements. |
Operation | Hard-wired motor operationOptionally with automatic weather controls for straightforward and easy operation. ManualEase of use is ensured with the spring-assisted gearbox. Radio-controlled motorWith radio remote control for ease of use. |
Accessories | NoneMarkilux infrared heaterIn a compact aluminium housing; for use within an area of 9–12 m². Wall sealing profileTo cover the gap between awning and wall. |
