Markilux 1700 Stretch
Description

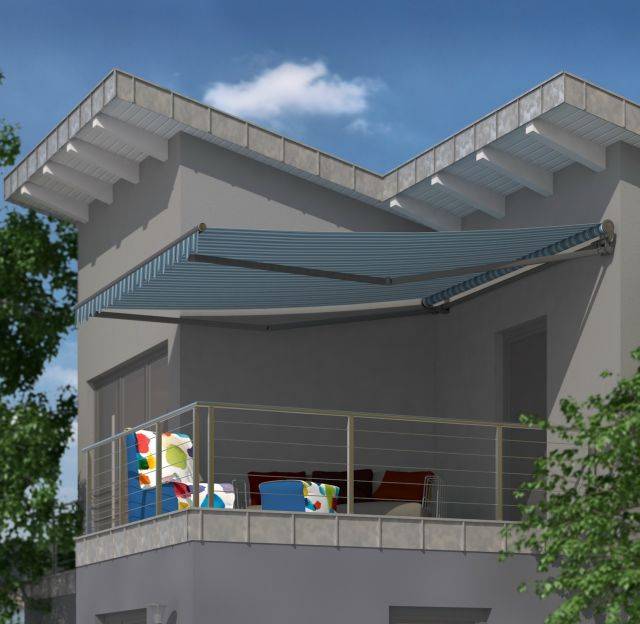

The classic shape of an open patio awning with a stylish new look. The transition from torque bar to roller tube is curved and homogeneous. Side caps available in polished chrome offer an optional designer touch.

Features:

  • Large projections can still be achieved in narrow awnings due to tiered arms.
  • Attractive front profile made of extruded aluminium with integrated gutter and water drainage spouts.
  • Sturdy, round steel torque bar, 50 mm diameter, to prevent twist and deflection.
  • The 85 mm roller tube ensures the highest stiffness and the best possible cover winding characteristics even at the largest widths.
  • Unique arm technology with power transference by way of the highly tear-resistant bionic tendon made of high-tech fibres, achieving at least 50 000 cycles in tests by the Fraunhofer Institute.

General information
Features

Large projections can still be achieved in narrow awnings due to tiered arms

Attractive front profile made of extruded aluminium with integrated gutter and water drainage spouts

Sturdy, round steel torque bar, 50 mm diameter, to prevent twist and deflection

The 85 mm roller tube ensures the highest stiffness and the best possible cover winding characteristics even at the largest widths

Unique arm technology with power transference by way of the highly tear-resistant bionic tendon made of high-tech fibres, achieving at least 50 000 cycles in tests by the Fraunhofer Institute

Uniclass 2015
Pr_20_65_78_58 Open sided sheltersPrimary
CAWS

B91/330 Canopy

Specification data - Open sided shelters
Product Reference

Markilux 1700 Stretch

Awning colour

Available in non-standard RAL colours; insert requirements.

Operation

Hard-wired motor operation

Optionally with automatic weather controls for straightforward and easy operation.

Manual

Ease of use is ensured with the spring-assisted gearbox. Supplied with a Markilux stainless steel winding handle.

Radio-controlled motor

With radio remote control for ease of use.

Transparent system coverboard

Not required

Required
