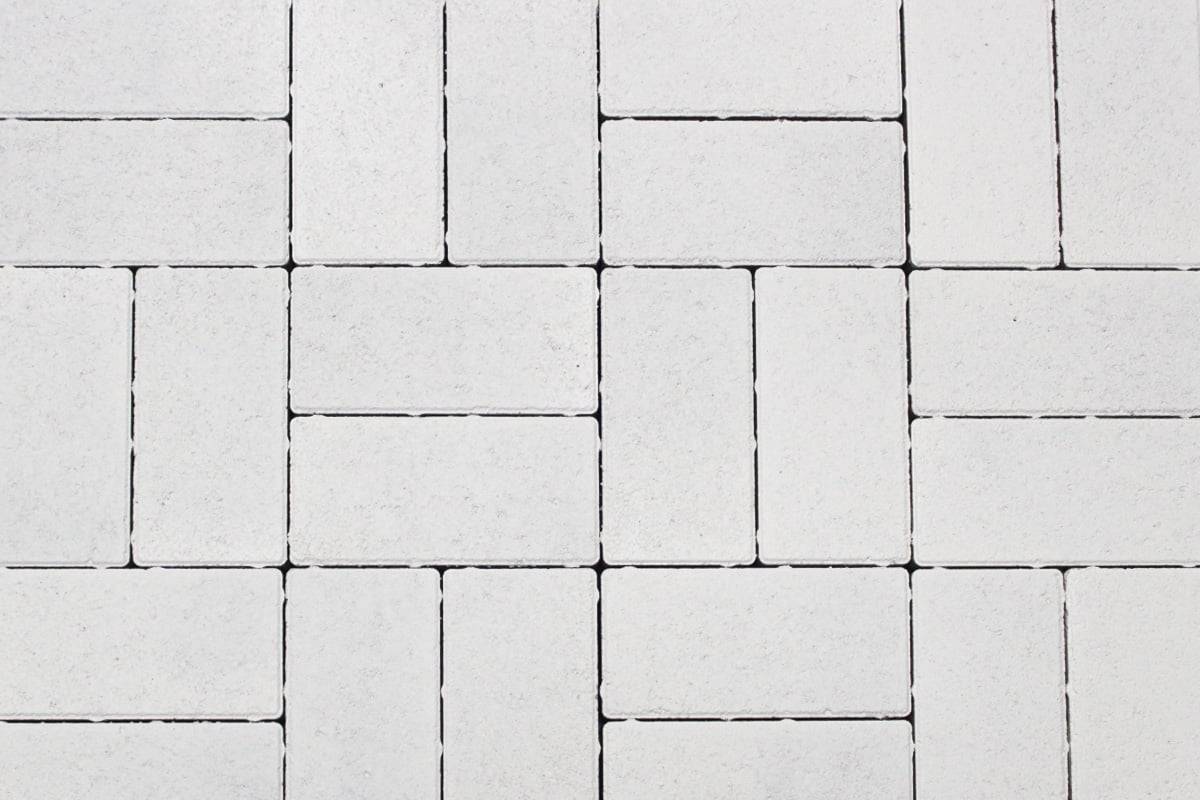

Marker Block | Concrete Block Paving With Colour Indicator
Verified by manufacturer 3 months ago
EPD
Certificate type
Concrete paving block with permanent coloured indicator.
Application
For residential and commercial applications when used in conjunction with the correct sub-base design, in accordance with the latest British standard.
Description

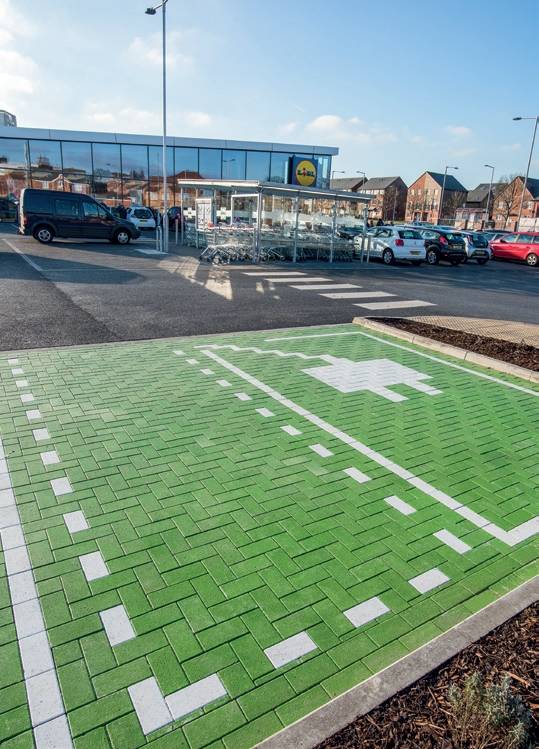

Concrete paving block with permanent coloured indicator acting as a high visibility indicator for use in road markings, manufactured in accordance with BS EN 1338: 2003.
Features and benefits:
- Cost-effective solution.
- Permanent coloured marker with hard-wearing, heavy pigments eliminates the need for painting.
- Manufactured in the UK with locally sourced materials.
General information
Color | Black Green White Yellow |
Finish | Smooth |
Material | Concrete |
Shape | Rectangle |
Length | 200 mm |
Width | 100 mm |
Height | 80 mm |
Uniclass | |
CAWS | Q24/10 Conventional concrete block paving Q24/110 Conventional concrete block paving |
Product range |
Specification data - Concrete paving blocks
Standard | To BS EN 1338. |
Physical properties | |
Colour | Black.Green.White.Yellow. |
Finish | Painted. |
Dimensions and associated tolerances | |
Nominal sizes | 200 x 100 x 80 mm. |
Weathering resistance | Class 3.Guidance for specification option: ≤1.0 kg/m² as a mean with no individual value >1.5 kg/m². |
Abrasion resistance | Class 3.Guidance for specification option: Wide Wheel Abrasion Test: ≤23 mm. |
Slip resistance | Mean polished skid resistance value (PSRV): >45. |
Strength | >3.5 MPa. |
Efflorescence | Minimum 12-hour vapour curing to significantly reduce the possibility of efflorescence. |
EnergyUsed | 100%. |
WaterUsed | 100%. |
BREEAM rating | B. Guidance for specification option: 'A' can be achieved by using a recycled sub-base. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 21.58 kg CO₂ eq/m² |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 12 % Manufacturer guidanceNot less than 12%. |
Third party certifications
Third party certifications
EPD
Environmental Product Declaration (EPD) Artro 80mm, Hydropave Pedesta 60mm, Hydropave Pedesta 80mm, Hydropave Shannon 60mm, Marker Block 80mm, Pedesta 50mm, Pedesta 60mm, Pedesta 80mm, Shannon 50mm, Shannon 60mm, Toberloc 80mm
Case studies
Castlegate Park, Dudley
