Application

Suitable for use in wet area applications.

Description

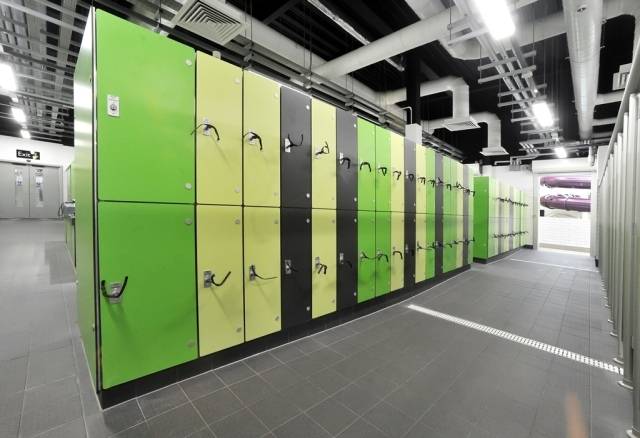

Laminate lockers with 12 mm Solid Grade Laminate doors are designed for wet areas. Marathon laminate lockers have been in used in a variety of installations including public leisure centres, swimming pools, health and fitness clubs, holiday villages, schools and hotels. They are designed to last, with every element being built from materials that will not degrade when exposed to wet clothes and humid atmospheres.

Features and benefits:

  • Aluminium bodies with radius back corners for ease of cleaning.
  • Door frames from extruded aluminium profiles.
  • Injection moulded impact resistant ABS plastic tops, shelves and bases with large ventilation slots and drainage holes. Siliconed sealed to the locker body, available with pressed powder-coated aluminium.
  • The base unit has a 3° slope to the front to facilitate drainage.
  • Hinges made from aluminium and stainless steel engage into door frame profiles, and are spring loading for automatic door closing. Opening is restricted to approximately 9º to prevent the doors opening across adjacent lockers, and to prevent damage to keys.
  • Aluminium number plates – mechanically through fixed to aluminium back plates for increased security.
  • Locks attached by special anti-vandal screws.
  • Unique aluminium double coat hooks mechanically fixed through locker tops and shelves to enhance strength.
  • Doors are attached to hinges using stainless steel screws into anodized aluminium rosettes with adhesive pads.
  • Special expanding nylon grommets separate the metal from the glass.
  • The lockers can be cleaned by hosing down without risk of degradation.
  • 12mm Solid Grade Laminate from a wide range of colour, pattern or wood grain finishes.
  • All edges of laminate doors and panels are machined to a bull-nosed profile and the corners are radiused for safety.
  • Aluminium double coat hooks fitted to all one and two-tier compartments.
  • Shoe shelves can also be provided.
  • Laminate lockers incorporate aluminium bodies with radius back corners for ease of cleaning.
  • The lockers can be cleaned by hosing down without risk of degradation.

General information

Color

Silver

Finish

Laminated

Toughened, Toughened and Laminated.

Mill

Material

Laminate

Solid Grade Laminate.

Aluminium

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

WarrantyDescription

One year

Uniclass

Pr_40_30_87_48 LockersPrimary

CAWS

N10/220 Lockers

Specification data - Lockers

Locker type

One tier, single compartment with additional shelf at 300 mm down from top.

Two tier, two equal height compartments with coat hooks.

Two tier, two equal compartments with integral seats 'welled locker'.

Three tier, three equal compartments.

Three tier, unequal, one half-height compartments with coat hooks over two-quarter height.

Four tier, four equal compartments.

Five tier, five equal compartments.

Six tier, six equal compartments.

Z type, two equal height compartments in a Z-shape configuration.

Dimensions

Bespoke sizes available, consult manufacturer and insert requirements.

-

Material

0.9 mm rolled aluminium bodies.

Finish

Mill.

Colour

Silver.

Fittings

  • Locks programmed by remote unit: Remote information terminal showing locker number of individual straps, cards. Strap return unit with deposit refund option, turnstile activation and interface with Optional PC Resistance to forced entry by leverage 200 kg as tested 21/06/06.

Digilock.

Dry area cam lock.

  • Dry area cam lock, nickel plated with ten wafer cylinder, reversible toothed key, master key series with 4000 differs. Attached to the door on aluminium back plate using through fixings. Supplied with 1No user key per lock and 2No master keys per installation.


Hasp and cam lock.

  • Hasp and cam lock: Body chrome plated steel. Anti-rotation device, aluminium number plate attached to the door by 316 grade stainless steel through fixing into satin anodized aluminium doorknob. Padlock can be supplied by Client or Prospec.


Hasp and clasp.

  • Hasp and clasp: Machined aluminium engaged into grooves in the door frame profile, clasp is formed by machined hole in door and aluminium number plate attached to door by stainless steel through fixing into satin anodized aluminium door knob. Padlock can be supplied by client or Prospec.


Kaba Removable Cylinder Coin Collect Lock with coin retain function.

  • Prospec Kaba Removable Cylinder Coin Collect Lock with coin retain function: Drilled security key; unique mastered series with 10,000 differs. Fixed to back plate with anti-tamper Torx screws. Attached to door and aluminium number plate by stainless steel through fixings. Coin box with separate master key. Attached to door on aluminium number plate by stainless steel through fixings. Supplied with two master keys and two cylinder removal key per order.


Kaba Removable Cylinder Coin Lock with coin refund.

  • Prospec Kaba Removable Cylinder Coin Lock with coin refund: Drilled security key; unique mastered series with 10 000 differs. Fixed to back plate with anti-tamper Torx screws. Attached to door and aluminium number plate by stainless steel through fixings. Supplied with two master keys and two cylinder removal key per order.


Prospec Mechanical Code Lock.

  • Prospec Mechanical Code Lock. Combination lock for lockers equipped with four dials that allows the choice of a four digit numerical code by the user. Fixed combination or reset use. Attached to the door on a back plate using through fixings.


Prospec OCS.

  • Prospec OCS: Battery operated standalone electronic digital lock with 4-digit user selected code input, master key, management key and disabled user key option. LED indicators for lock/unlock and low battery warning, Four AA size batteries, 10 000 cycles, deadbolt locking for security, fixed through the door with steel screws.


Prospec OTS.

  • Prospec OTS: Transponder operated stand-alone lock, powered by AA batteries, 30 000 cycles battery life. Push button to lock/ unlock operated by strap, card or Technogym key. Attached to locker door and aluminium number plate by stainless steel through fixings. Capable of being configured for specific types of facility, health club, leisure centre.


Prospec OTS Advanced.

  • Prospec OTS Advanced: Transponder operated stand-alone lock, powered by AA batteries, 30 000 cycles battery life. Push button to lock/ unlock operated by strap, card or Technogym key. Attached to locker door and aluminium number plate by stainless steel through fixings. Resistance to Humidity IP55. Compatible with Technogym wellness system, other wellness cashless purchasing and access control systems. Two level master key system. Operates on all Mifare technology. Real time functionality. Option of dedicated user use. Auto opening function. Events log. LED indicated lock status. PC Software. NFC Programmer. CN reader.


Prospec removable Cylinder Card Lock.

  • Prospec removable Cylinder Card Lock: Removable nickel plated brass cylinder, drilled security key, mastered series with 2000 differs. Fixed to back plate with anti-tamper Torx screws. Attached to door and aluminium number plate by stainless steel through fixings. Attached to door on aluminium number/ back plate by stainless steel through fixings. Supplied with one user key per lock, two master keys and two cylinder removal key installation. Cards can be supplied by client or Prospec. Hole punch available to allow cards to be made on site.


Prospec removable Cylinder Coin Collect Lock with coin retain function.

  • Prospec removable Cylinder Coin Collect Lock with coin retain function: Removable nickel plated brass cylinder, drilled security key, mastered series with 2000 differs. Coin box has separate master key. Fixed to back plate with anti-tamper Torx screws. Attached to door and aluminium number plate by stainless steel through fixings. Attached to door on aluminium number/ back plate by stainless steel through fixings. Supplied with one user key per lock, two master keys, two cylinder removal key and two coin box master keys per installation.


Prospec removable Cylinder Coin Lock with coin refund.

  • Prospec removable Cylinder Coin Lock with coin refund: Removable nickel-plated brass cylinder, drilled security key, mastered series with 2000 differs. Fixed to back plate with anti-tamper Torx screws. Attached to door and aluminium number plate by stainless steel through fixings. Attached to door on aluminium number/ back plate by stainless steel through fixings. Supplied with one user key per lock, two master keys and two cylinder removal key per installation.


Prospec removable Cylinder Dual Coin Collect Lock with coin retain function.

  • Prospec removable Cylinder Dual Coin Collect Lock: Either coin retained, coin box with separate master key, removable nickel plated brass cylinder, drilled security key, master series with 2000 differs. Fixed to back plate with 4no anti-tamper Torx screws. Attached to the door and aluminium number plate by 316 grade stainless steel through fixings. COIN BOX fixed to the door on aluminium number/ back plate by 316 grade stainless steel through fixings. Supplied with 1no user key per lock, 2no master keys, 2no cylinder removal key and 2no coin box master keys per installation.

Wet area cam lock.

  • Wet area cam lock from solid brass, nickel-plated cam lock with six-pin cylinder, drilled security key, master key series with 1600 differs. Attached to the door on aluminium number/ back plate by 316 grade stainless steel through fixings. Supplied with 1no user key per lock and 2no master keys per installation.


Aluminium double coat hooks fitted to all one and two tier compartments.

Height

900 mm.

1100 mm.

1500 mm.

1800 mm.

2000 mm.

Show more

Width

250 mm.

Special order.

300 mm.

Standard.

400 mm.

Standard.

450 mm.

Special order.

Special order.

Consult manufacturer and insert requirements.

Depth

500 mm.

Special order.

Consult manufacturer and insert requirements.

Base and top units

High impact acrylonitrile butadiene styrene.

Standard.

Powder coated pressed aluminium.

For non-standard locker sizes.

Shelf units

High impact acrylonitrile butadiene styrene.

Standard.

Powder coated pressed aluminium.

For Z type and non-standard size lockers.

Colour/ Finish

Laminate range, colour.

Consult manufacturer's standard colour range and insert requirement.

Other.

Insert requirement.

User key

Numbered discs/ safety pin.

Numbered keystrap with stainless steel buckles, colour.

Insert requirement.

Other.

Consult manufacturer and insert requirement.

Locker door numbering

Aluminium number plate.

Standard.

Brushed stainless steel 35 mm diameter numbered disc.

DDA compliant number plate - 30 mm high tactile numerals.

DDA compliant number plate - 30 mm high tactile numerals and Braille.

Engraved.

Into surface of door panel.

Show more

Type

Not required.

Aluminium angle support.

Aluminium tubular support frame.

Mild steel support frame.

Precast concrete plinth.

To be provided by contractor or others.

Show more

Fascia

Not required.

Compact Grade Laminate.

Other.

Consult manufacturer and insert requirement.

Seat top

Not required.

12 mm Compact Grade Laminate.

12 mm postformed Compact Grade Laminate.

Hardwood timber.

Other.

Consult manufacturer and insert requirement.

Accessories

None.

Captive plastic hanger.

One per compartment.

Chrome hanging rail.

One per compartment. Generally to compartments equal or over 900 mm high, confirm if integral double hook is required.

Fascia panels above lockers to ceiling.

Compact Grade Laminate. Insert required colour and ceiling height.

Fascia panels above lockers to ceiling (glass).

Insert glass specification, colour and ceiling height.

Show more

Door frame

Extruded mill finished aluminium profiles.

Hinges

Aluminium and 1.4401 (316) grade stainless steel with spring loading for automatic door closing.

Environmental information

Contains Red List materials

No

Country of material origin

Europe mix.

-

Country of product manufacture

United Kingdom

Embodied carbon

0 kg·CO₂e/kg

Recyclability

High.

-

Recycled content

Solid Grade laminate, Aluminium.

-
