Marathon Glass Dry Area Lockers

Verified by manufacturer 6 months ago

Prospec Ltd

Marathon Glass Dry Area Lockers

Jump to:
BOS
 +44 (0)1709 377147 Website

Application

Suitable for use in dry changing areas.

Description

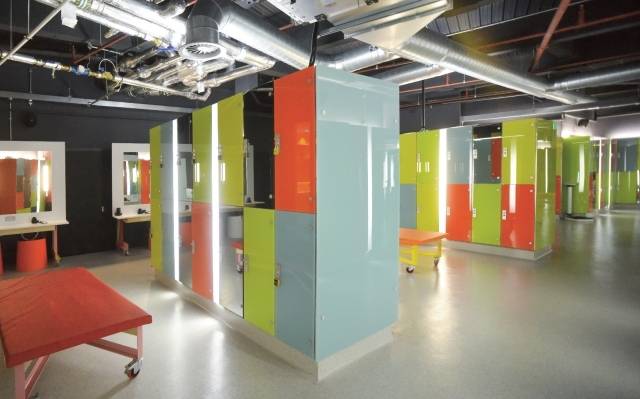

Marathon Dry use lockers are designed for use in dry changing areas, offering a contemporary look for modern changing area design.


Dry use lockers consist of melamine faced high density particle board bodies with screw and dowel construction.

Base, top and shelf units are from the same material with 2 mm PVC edge banding to front edges. The locker bodies are available in a variety of height combinations and widths. Door frames are constructed from extruded aluminium profiles, pre-drilled for on-site assembly.


Aluminium and stainless steel hinges engage into door frame profiles and doors have spring loading for automatic closing. Adjustments are possible for horizontal and vertical alignment of doors. Neoprene door buffers engage into aluminium profiles.


Doors and matching decorative end panels are available in toughened float glass with coloured ceramic paint finish. Doors are attached to hinges with stainless steel screws into aluminium rosettes anodized to match door frame profiles.


Features and benefits:

  • Melamine faced high density particle board with dowel and screw construction.
  • Bases, tops and shelves from the same material with 2 mm thick PVC edge banding to front edges.
  • Full width hanging rails are provided in all compartments of 900 mm high or more.
  • Concealed door frames constructed from extruded aluminium.
  • Hinges are limited to approximately 90° to prevent the doors opening across adjacent lockers.
  • A wide range of locking and access systems are available providing security, cost and operational options.
  • Door frames from extruded aluminium profiles.
  • Hinges made from aluminium and stainless steel engage into door frame profiles and are spring loading for automatic door closing. Opening is restricted to approximately 9º to prevent the doors opening across adjacent lockers and to prevent damage to keys.
  • Aluminium number plates - mechanically through fixed to aluminium back plates for increased security.
  • Locks attached by special anti-vandal screws.
  • Doors are attached to hinges using stainless steel screws into anodized aluminium rosettes with adhesive pads.
  • 10 mm toughened float or 10.76 mm toughened and laminated glass.
  • All edges of glass doors are polished with small chamfers to the corners.
  • Doors are attached to hinges using stainless steel screws into anodized aluminium rosettes with adhesive pads.
  • Special expanding nylon grommets separate the metal from the glass.

General information

Finish

Laminated

Guidance for specification option:

Toughened, Toughened and Laminated, HPL.

Material

MFC

Glass

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Pr_40_30_87_48 LockersPrimary

CAWS

N10/220 Lockers

Specification data - Lockers

Locker type

One tier, single compartment with additional shelf at 300 mm down from top.

Two tier, two equal height compartments with coat hooks.

Two tier, two equal compartments with integral seats 'welled locker'.

Three tier, three equal compartments.

Three tier, unequal, one half-height compartment with coat hooks over two quarter-height.

Four tier, four equal compartments.

Five tier, five equal compartments.

Six tier, six equal compartments.

Z type, two equal height compartments in a Z-shape configuration.

Material

Carcass: 15 mm thick melamine faced high density particle board. Shelf units: 18 mm thick melamine faced high density particle board.

Colour

White.

Fittings

Digilock.

Dry area cam lock.

Guidance for specification option:

  • Dry Area Camlock, nickel plated with 10 wafer cylinder, reversible toothed key, master key series with 4000 differs. Attached to the door on aluminium back plate using through fixings. Supplied with 1No user key per lock and 2No master keys per installation.


Hasp and clasp.

Guidance for specification option:

  • Hasp and Clasp: Machined aluminium engaged into grooves in the door frame profile, clasp is formed by machined hole in door and aluminium number plate attached to door by stainless steel through fixing into satin anodized aluminium door knob. Padlock can be supplied by client or Prospec.


Hasp and cam lock.

Guidance for specification option:

  • Hasp Cam Lock: Body chrome plated steel. Anti-rotation device, aluminium numberplate attached to the door by 316 grade stainless steel through fixing into satin anodized aluminium doorknob. Padlock can be supplied by Client or Prospec.


Kaba removable cylinder coin lock with coin refund.

Guidance for specification option:

  • Prospec Removable Cylinder Coin Lock with coin refund: Removable nickel-plated brass cylinder, drilled security key, mastered series with 2,000 differs. Fixed to backplate with anti tamper Torx screws. Attached to door and aluminium numberplate by stainless steel through fixings. Attached to door on aluminium number/ backplate by stainless steel through fixings. Supplied with one user key per lock, two master keys and two cylinder removal key per installation.


Kaba removable cylinder coin collect lock with coin retain function.

Guidance for specification option:

  • Prospec Kaba Removable Cylinder Coin Collect Lock with coin retain function: Drilled security key; unique mastered series with 10,000 differs. Fixed to backplate with anti tamper Torx screws. Attached to door and aluminium numberplate by stainless steel through fixings. Coin box with separate master key. Attached to door on aluminium numberplate by stainless steel through fixings. Supplied with two master keys and two cylinder removal key per order.



Prospec mechanical code lock.

Guidance for specification option:

  • Prospec Mechanical Code Lock. Combination lock for lockers equipped with 4 dials that allows the choice of a 4-digit numerical code by the user. Fixed combination or reset use. Attached to the door on a backplate using through fixings.


Prospec OCS.

Guidance for specification option:

  • Prospec OCS: Battery operated standalone electronic digital lock with 4-digit user selected code input, master key, management key and disabled user key option. LED indicators for lock/unlock and low battery warning, 4 AA size batteries, 10,000 cycles, deadbolt locking for security, fixed through the door with steel screws.


Prospec OTS.

Guidance for specification option:

  • Prospec OTS: Transponder operated stand-alone lock, powered by AA batteries, 30,000 cycle's battery life. Push button to lock/ unlock operated by strap, card or Technogym key. Attached to locker door and aluminium numberplate by stainless steel through fixings. Capable of being configured for specific types of facility, health club, leisure centre.


Prospec OTS advanced.

Guidance for specification option:

  • Prospec OTS advanced: Transponder operated stand-alone lock, powered by AA batteries, 30,000 cycle's battery life. Push button to lock/ unlock operated by strap, card or Technogym key. Attached to locker door and aluminium numberplate by stainless steel through fixings. Resistance to Humidity IP55. Compatible with Technogym wellness system, other wellness cashless purchasing & access control systems. 2 level master key system. Operates on all Mifare technology. Real time functionality. Option of dedicated user use. Auto opening function. Events log. LED indicated lock status. PC Software. NFC Programmer. CN reader.


Prospec removable cylinder coin lock with coin refund.

Guidance for specification option:

  • Prospec Kaba Removable Cylinder Coin Lock with coin refund: Drilled security key; unique mastered series with 10,000 differs. Fixed to backplate with anti tamper Torx screws. Attached to door and aluminium numberplate by stainless steel through fixings. Supplied with two master keys and two cylinder removal key per order.

Prospec removable cylinder card lock.

Guidance for specification option:

  • Prospec Removable Cylinder Card Lock: Removable nickel plated brass cylinder, drilled security key, mastered series with 2,000 differs. Fixed to backplate with anti tamper Torx screws. Attached to door and aluminium numberplate by stainless steel through fixings. Attached to door on aluminium number/ backplate by stainless steel through fixings. Supplied with one user key per lock, two master keys and two cylinder removal key installation. Cards can be supplied by client or Prospec. Hole punch available to allow cards to be made on site.


Prospec removable cylinder coin collect lock with coin retain function.

Guidance for specification option:

  • Prospec Removable Cylinder Coin Collect Lock with coin retain function: Removable nickel plated brass cylinder, drilled security key, mastered series with 2,000 differs. Coin box has separate master key. Fixed to backplate with anti tamper Torx screws. Attached to door and aluminium numberplate by stainless steel through fixings. Attached to door on aluminium number/ backplate by stainless steel through fixings. Supplied with one user key per lock, two master keys, two cylinder removal key and two coin box master keys per installation.


Prospec removable cylinder dual coin collect lock with coin retain function.

Guidance for specification option:

  • Prospec Removable Cylinder Dual Coin Collect Lock: Either coin retained, coin box with separate master key, removable nickel plated brass cylinder, drilled security key, master series with 2,000 differs. Fixed to backplate with 4no anti tamper Torx screws. Attached to the door and aluminium numberplate by 316 grade stainless steel through fixings. COIN BOX fixed to the door on aluminium number / backplate by 316 grade stainless steel through fixings. Supplied with 1no user key per lock, 2no master keys, 2no cylinder removal key and 2no coin box master keys per installation.


Wet area cam lock.

Guidance for specification option:

  • Wet Area Camlock from solid brass, nickel-plated cam lock with 6-pin cylinder, drilled security key, master key series with 1600 differs. Attached to the door on aluminium number / backplate by 316 grade stainless steel through fixings. Supplied with 1no user key per lock and 2no master keys per installation.


Manufacturer guidance

  • Locks programmed by remote unit: Remote information terminal showing locker number of individual straps, cards. Strap return unit with deposit refund option, turnstile activation and interface with Optional PC Resistance to forced entry by leverage 200 kg as tested 21/06/06.

Height

900 mm.

1100 mm.

1500 mm.

1800 mm.

2000 mm.

Show more

Width

300 mm.

400 mm.

Special order.

Guidance for specification option:

Consult manufacturer and insert requirements.

Depth

500 mm.

Guidance for specification option:

Standard.

Special order.

Guidance for specification option:

Consult manufacturer and insert requirements.

Type

10 mm toughened float glass.

10 mm toughened float glass - Opti-white.

10 mm toughened cast glass.

10 mm toughened cast glass - Opti-white.

10.76 mm toughened and laminated float glass.

Show more

Colour/ Finish

Opaque ceramic painted glass, colour.

As schedule.

Guidance for specification option:

Consult manufacturer and insert requirement.

Type

10 mm toughened float glass.

10 mm toughened float glass - Opti-white.

10 mm toughened cast glass.

10 mm toughened cast glass - Opti-white.

10.76 mm toughened and laminated float glass.

Show more

Colour/ Finish

Opaque ceramic painted glass, colour.

As schedule.

Guidance for specification option:

Consult manufacturer and insert requirement.

User key

Numbered keystrap with stainless steel buckles.

Guidance for specification option:

Consult manufacturer for colour option and insert requirement.

Numbered discs/ safety pin.

Locker door numbering

None.

Aluminium number plate.

Guidance for specification option:

Standard.

Brushed stainless steel 35 mm diameter numbered disc.

DDA compliant number plate (30 mm high tactile numerals).

DDA compliant number plate (30 mm high tactile numerals and Braille).

Show more

Support Plinths

None.

Aluminium angle support.

Aluminium tubular support frame.

Mild steel support frame.

Precast concrete plinth (by contractor or others).

Show more

Fascia

None.

Compact Grade Laminate.

Special order.

Guidance for specification option:

Consult manufacturer and insert requirement.

Seat top

Not applicable.

12 mm Compact Grade Laminate.

12 mm postformed Compact Grade Laminate.

Hardwood timber.

Special order.

Guidance for specification option:

Consult manufacturer and insert requirement.

Accessories

None.

Chrome hanging rail.

Guidance for specification option:

One per compartment. Suitable for compartments equal or over 900 mm high, confirm with manufacturer if integral double hook is still required.

Captive plastic hanger.

Guidance for specification option:

One per compartment.

Fascia panels above lockers to ceiling (Compact Grade Laminate).

Guidance for specification option:

Consult manufacturer and provide laminate colour and ceiling height.

Fascia panels above lockers to ceiling (glass).

Guidance for specification option:

Consult manufacturer and provide glass specification, colour and ceiling height.

Show more

Door frame

Extruded aluminium profiles.

Hinges

Aluminium and grade 1.4404 (316) stainless steel with spring loading for automatic door closing.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Manufacturer guidance

Europe mix.

Country of product manufacture

United Kingdom

Recyclability

-

Manufacturer guidance

Medium.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

-

Manufacturer guidance

Glass, MFC.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
 -

1

IFC
 -

1

Literature

Prospec Glass & Laminate Locker Brochure

Prospec Glass & Laminate Locker Brochure

Lockers Technical Data

Lockers Technical Data
