Malford Door Barrier
Verified by manufacturer 3 months ago
Horizontal Tapping Rail - MDB203
Horizontal Tapping Rail - MDB203
CHAS
Certificate type
Constructionline Gold
Certificate type
ISO 45001 Health and Safety Management
Certificate type
ISO 9001 Quality Management
Certificate type
Alcumus SafeContractor
Certificate type

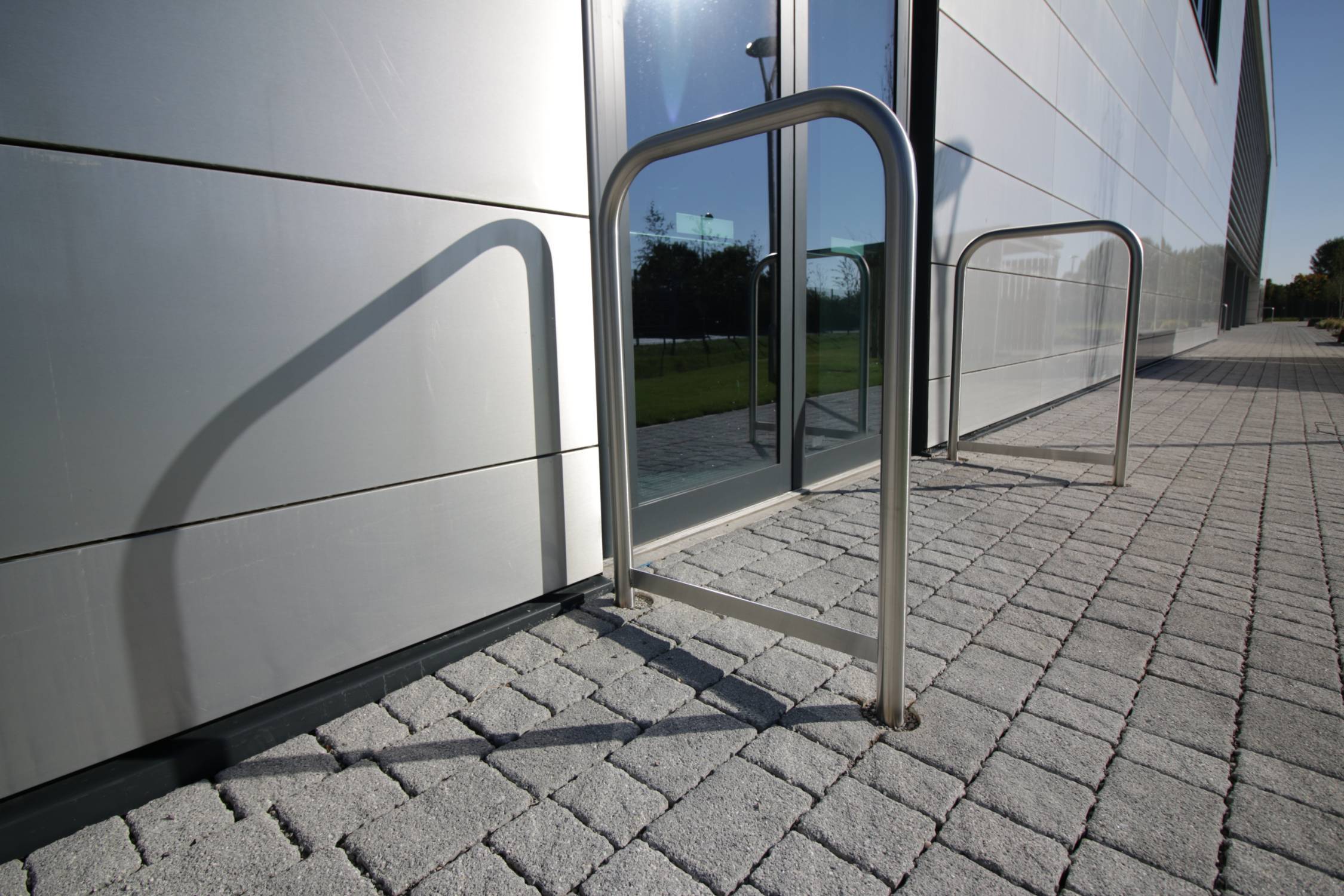

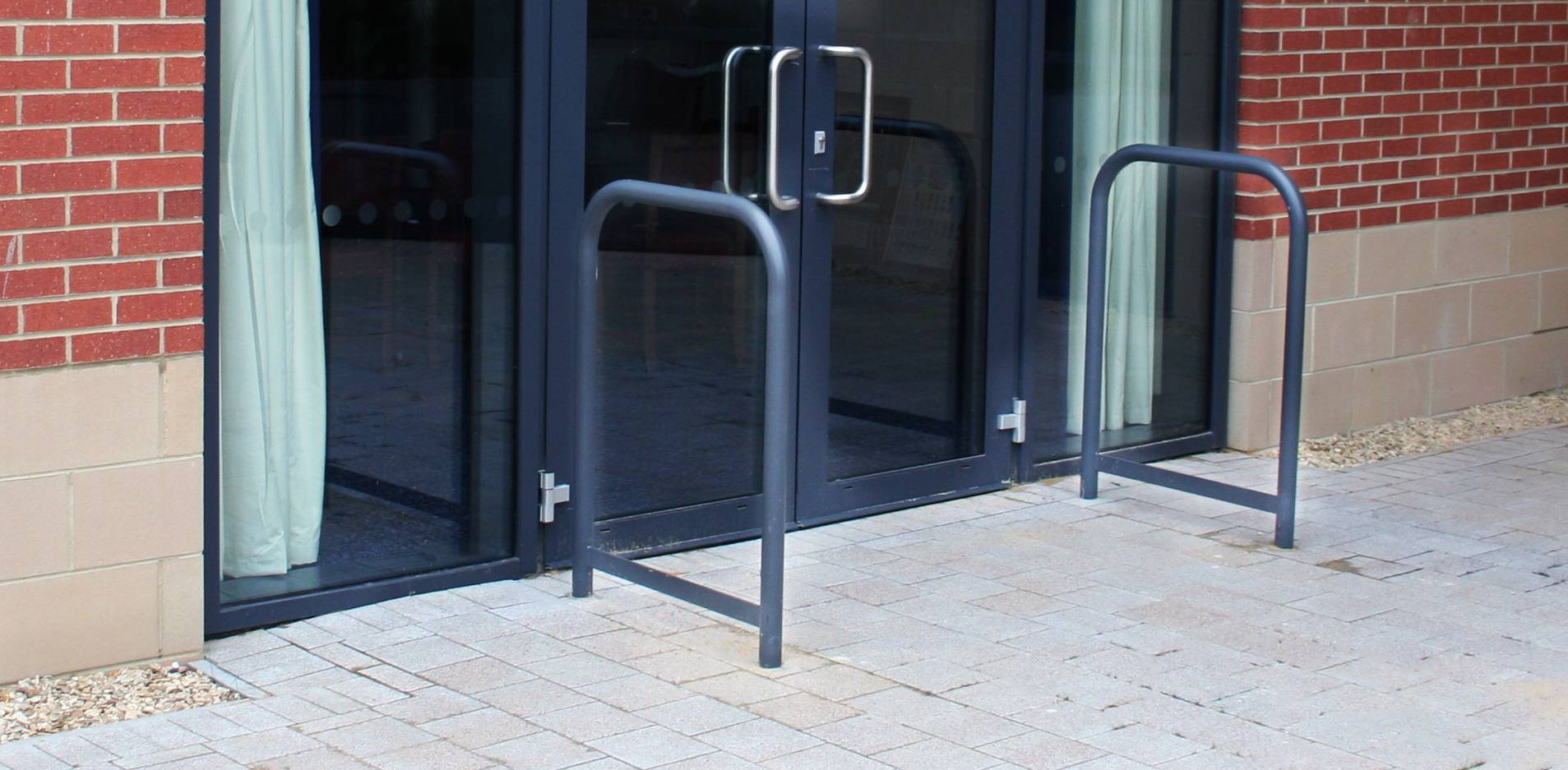

Steel hoop door barrier.
Application
Barriers are recommended for any door opening outwards into public space.
Description
The Malford Door Barrier is an uncomplicated steel hoop door barrier with options for bars, panels or rails for added visual appeal, to discourage improper use or with tapping rail to aid the visually impaired.
This door barrier is made from 50 mm steel tube section and comes as standard with a galvanized finish but can be powder coated to any RAL colour to match the projects requirements or is also available in stainless steel options.
The Malford Door Barrier can be supplied in a variety of fixing methods; root fixed, fixed down below finished ground or directly to a finished surface; to suit the specific site needs.
Features and benefits:
- Range of options - bars, panels, tapping rails.
- 50 mm steel tube section.
- Galvanized finish but can be powder coated to any RAL colour.
- Variety of fixing methods - root fixed, fixed down below finished ground or directly to a finished surface.
Click here to see more of our extensive Street Furniture product range
General information
Color | Beige Black Blue Brown Cream |
Finish | Galvanized Powder-coated |
Material | Steel Stainless steel |
Shape | Other Guidance for specification option: Hoop. |
Length | 760 mm Bespoke |
Width | 50 mm |
Height | 1110 mm Bespoke |
Warranty description | Three year |
Uniclass | |
CAWS | Q50/190 Bollards Q50/31 Bollards |
Specification data - Carbon steel hoops
Description | Steel hoop door barrier with horizontal tapping rail. |
Manufacturer | Langley Design. |
Supplied by | Langley Design. |
Form | Static. |
Dimensions | |
Width | 760 mm.Bespoke. |
Height | 1100 mm.Bespoke. |
Hoops | |
Size and profile | 50 mm. |
Post base | Root fix.Below ground base fix .Surface mount. |
Finishes | |
Worked finish | None. |
Applied finish | Galvanized (GL) steel.Galvanised and powder-coated (GPC) steel.Guidance for specification option: Can be powder coated to any RAL colour. Consult manufacturer and insert requirements. Stainless steel grade 304 (SS-304).Stainless steel grade 316 (SS-316). |
Infill | Horizontal tapping rail. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Steel Stainless steel |
Manufacturing plant location |
