Description

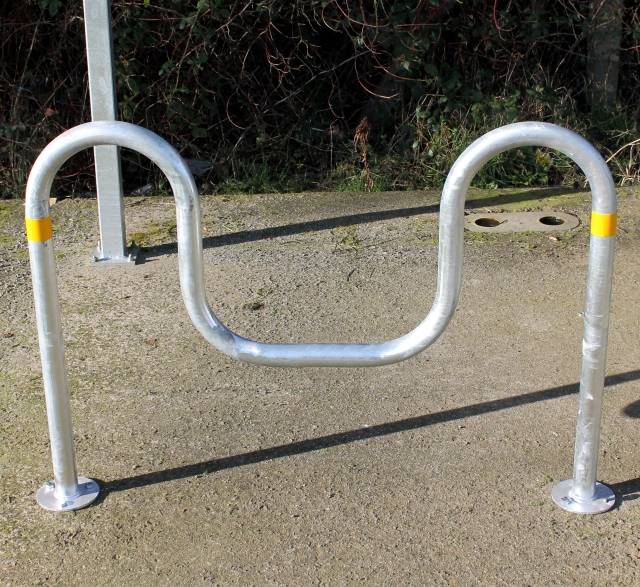

The VELOPA ‘M’ Cycle Stand is one of London’s transport networks preferred styles. Offering varying locking heights, this cycle stand provides a higher degree of security than its more traditional counterparts. The design of the ‘M’ Cycle Stand allows cyclists to secure both the frame and wheel of their bicycle using their own security lock. Each stand is suitable for securing up to two bicycles.

Features:

  • Length: 1160 mm; height (above ground): 750 mm.
  • Ragged as standard, flanged options are available.
  • Ragged version 300 mm below ground.
  • 48 mm diameter tube.
  • Three bolts required per flange (six per stand).
  • Manufactured from galvanised mild steel as standard to BS EN ISO 1461.
  • Stainless steel is grade 304 (1.4301) as standard, grade 316 (1.4401) available to order.
  • Other RAL and BS colours available.
  • Galvanized stands supplied with orange reflective tape, Stainless Steel stands supplied with black reflective tape (other colours are available upon request).
  • Tapping rails can be added for easy identification by visually impaired pedestrians.
  • Tapping rail fixed 100 mm above the ground.

General information
Features

Length: 1160 mm; height (above ground): 750 mm

Ragged as standard, flanged options are available

Ragged version 300 mm below ground

48 mm diameter tube

Three bolts required per flange (six per stand)

Manufactured from galvanised mild steel as standard to BS EN ISO 1461

Stainless steel is grade 304 (1.4301) as standard, grade 316 (1.4401) available to order

Other RAL and BS colours available

Galvanized stands supplied with orange reflective tape, Stainless Steel stands supplied with black reflective tape (other colours are available upon request)

Tapping rails can be added for easy identification by visually impaired pedestrians

Tapping rail fixed 100 mm above the ground

Uniclass 2015
Carbon steel cycle stands (Pr_40_30_21_12)Primary
Specification data - Carbon steel cycle stands
Product Reference

'M' Cycle Stand with Tapping Rail, flanged: 138515285T

'M' Cycle Stand with Tapping Rail, ragged: 138515280T

'M' Cycle Stand, flanged: 138515285

'M 'Cycle Stand, ragged: 138515280

Stainless Steel 'M' Cycle Stand with Tapping Rail, flanged: 138515289T

Stainless Steel 'M' Cycle Stand with Tapping Rail, ragged: 138515284T

Stainless Steel 'M' Cycle Stand, flanged: 138515289

Stainless Steel 'M' Cycle Stand, ragged: 138515284

Reinforcement

Not required

Required

Standard product features

Wall thickness:

  • Galvanized: 3 mm.
  • Stainless steel: 2 mm.

Weight:

  • 'M' Cycle Stand, ragged: 13.3 kg.
  • 'M' Cycle Stand, flanged: 11.6 kg.
  • Stainless Steel 'M' Cycle Stand, ragged: 8.4 kg.
  • Stainless Steel 'M' Cycle Stand, flanged: 7.6 kg.

Product Options

Colour/ Finish:

Galvanized finish as standard. Colour coated and Stainless Steel options are available (please state RAL/BS numbers for colour coated versions).
