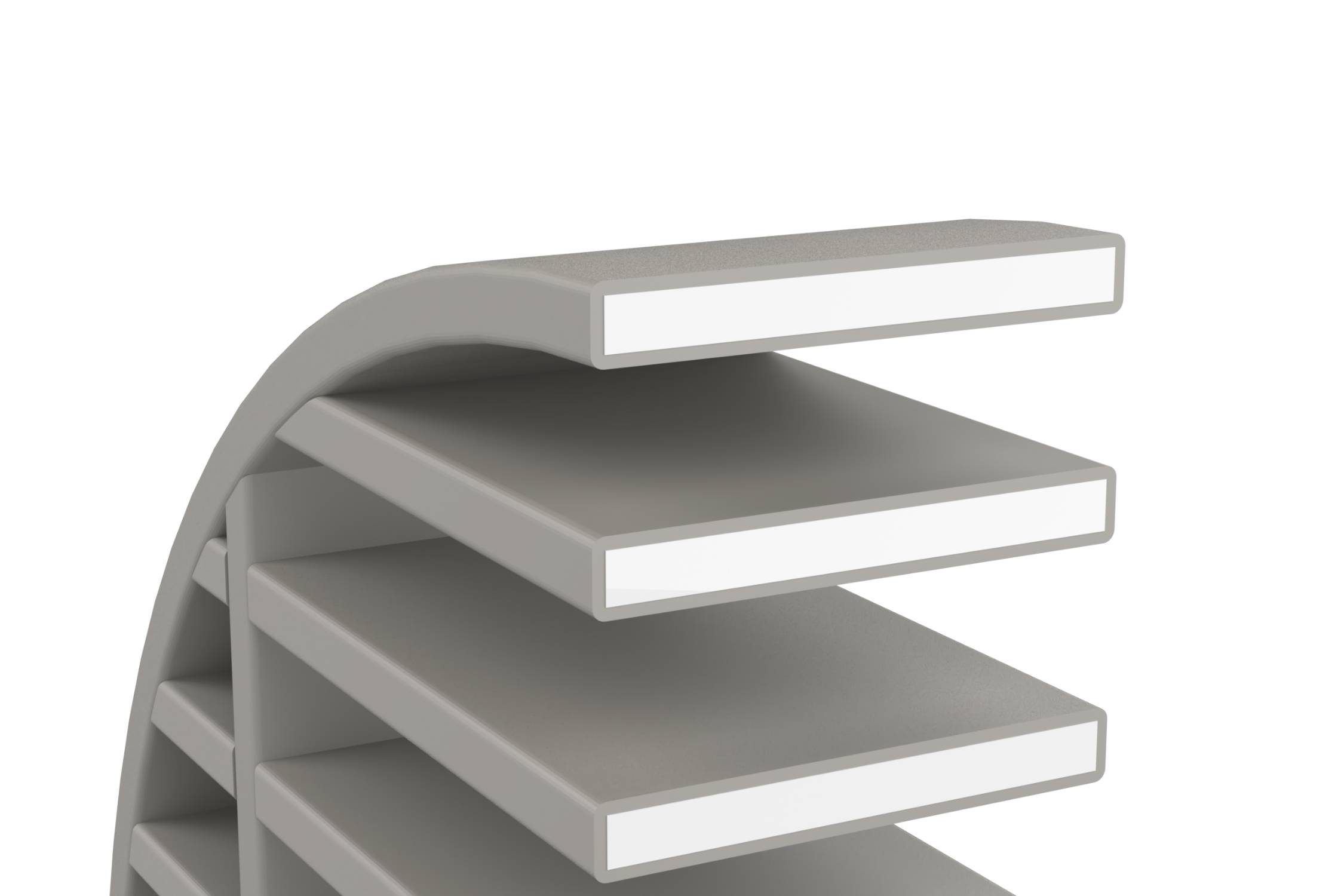

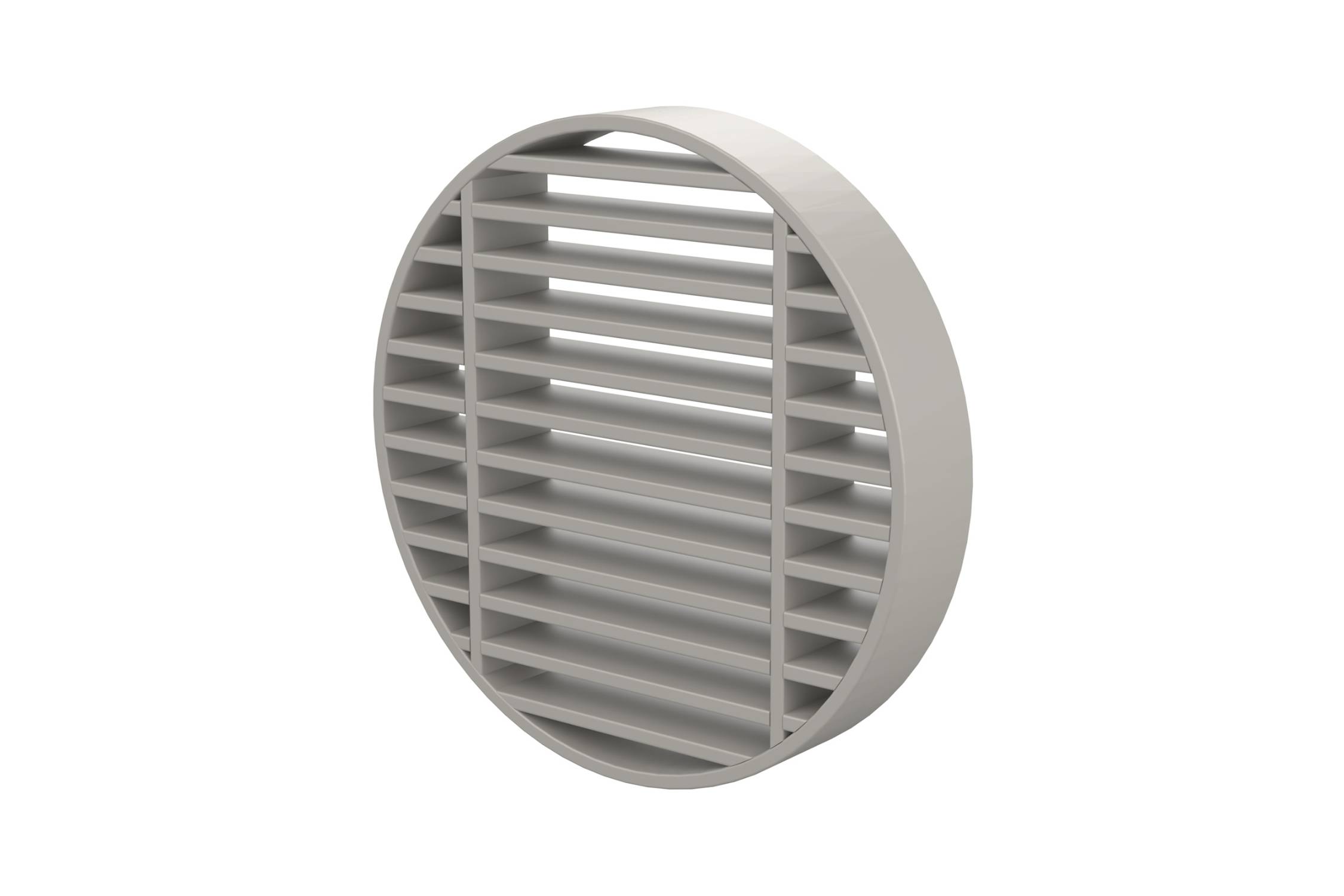

LVC40 Air Transfer Grille

Verified by manufacturer 2 months ago

Lorient Third party certifications:
  • Certifire Certificate

    Certifire Certificate

    Certificate type

High performance circular vision style intumescent air transfer grille.

Jump to:
+44 (0)1626 834252 www.lorientuk.com

Application

Suitable use for:

  • Doors, walls and ducts. Please note in applications where high levels of humidity or wetness are anticipated, it is recommended that an LVHC44 product should be employed.
  • Toilet extraction systems in residential premises, hotels and many other buildings.

Description

A high performance, standard vision intumescent air transfer grille for doors, walls and ducts.


Features and benefits:

  • The design allows space savings, ease of installation and avoids the need for operational function checks.
  • No need for “round to square to round” adapters.
  • Fits directly into ducts, doors or wall apertures.
  • No moving parts.
  • Excellent fire integrity and insulation performance.
  • Not prone to clogging.
  • No access panels required.
  • No moving parts.
  • Robust construction.
  • No maintenance.
  • Use with metal cover grille (optional).
  • Other non-standard sizes may be available - consult the manufacturer for details.
  • Performance: Can be used to provide up to 60 minutes resistance to fire. EI rating of 120 minutes when used in conjunction with a cover grille. Consult the manufacturer's Technical Department for details.
  • Orientation: LVC40 products can be installed either vertically or up to 300 mm diameter horizontally.
  • Positional requirements (Certifire):The upper edge of the grille shall be no higher than 3000 mm from floor level. The lower edge of the grille shall be no closer than 400 mm to floor level.
  • Free area: Low sound power level +.
  • Fixing: Each air transfer grille is manufactured 2 mm less than a nominal aperture size to provide clearance when installed in a duct or other aperture of the same nominal dimensions. e.g. a 198 mm diameter nominal size damper will suit a 200 mm diameter aperture. Screwed and bedded in Lorient intumescent sealant.

General information

Color

Silver

Material

PVC

Polyvinyl chloride (PVC) slats with an intumescent core.

Shape

Circle

Size

Up to 600mm diameter (nominal to suit standard PVC pipes or steel ducts)


Thickness: 40mm.

-

Uniclass

Pr_30_59_94_31 Fire-resisting air transfer grillesPrimary

CAWS

L20/20 Wood flush doors

L20/230 Wood flush doors

L20/25 Wood-panelled doors

L20/250 Wood-panelled doors

L20/270 Wood doors

L20/280 Doors

L20/30 Wood doors

L20/410 Wood doorsets

L20/420 Wood doorsets

L20/430 Wood doorsets

L20/480 Doorsets

L20/55 Doorsets

P21/66 Door mounted air transfer grilles

P21/896 Door mounted fire resisting air transfer grilles

P21/897 Door mounted fire resisting air transfer grilles with smoke shutter

U90/360 Air transfer grilles

U90/360 Air transfer grilles

Specification data - Fire-resisting air transfer grilles

Standard

To BS 476-20 and 22:1987 (fire). To BS EN 1634-1:2014 (fire). To BS EN 1634-5:2017 (fire).

Third party certification

Certifire CF564.

Category

Intumescent.

Size

Up to 600mm dia. Nominal to suit standard PVC pipes or steel ducts.

-

Fire resistance (minimum)

60 minutes.

Material and finish

Polyvinyl chloride (PVC) slats with an intumescent core.

Colour

Silver.

Accessories

None.

Cover grille.

Thickness

40 mm.

Literature

Air Transfer Grille Installation Manual

Air Transfer Grille Installation Manual

Fire and Smoke Resistant Dampers / Air Transfer Grilles

Fire and Smoke Resistant Dampers / Air Transfer Grilles

Lorient Air Transfer Grille Datasheets

Lorient Air Transfer Grille Datasheets

Lorient Air Transfer Grille Product Selector

Lorient Air Transfer Grille Product Selector

Third party certifications

Certifire Certificate

Certifire Certificate

Certifire CF564
