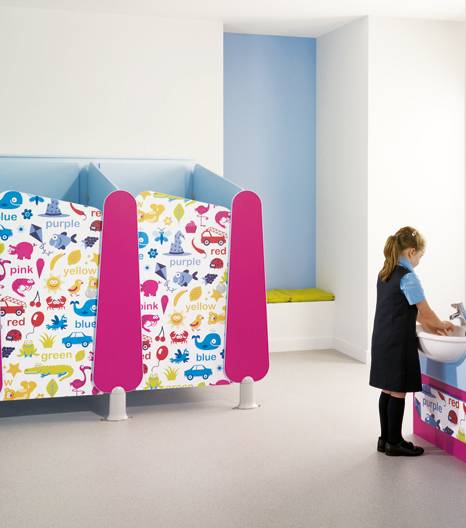

Lollipop Cubicles

Name: Lollipop Cubicles
Brand: 6RYewhH5YjvmSZw3DUWqJB
SKU: n626prgUdq4odKJSPKUJQA

Venesta Washroom Systems Ltd

Frameless cubicles for schools.

Jump to:

+44 (0)1474 353333 www.venesta.co.uk

Uniclass 2015

Ss_25_12_60_60 Panel cubicle systemsPrimary

CAWS

K32/10 Panel cubicles

K32/120 Panel cubicles

Product Reference

Lollipop HPL

High pressure laminate covered chipboard panels.

Lollipop MFC

Melamine faced chipboard panels.

Lollipop SGL

Solid grade laminate panels.

Height

Full height

1950 mm from FFL.

Size A

1000 mm high. 1250 mm from FFL to lowest point.

Size B

1200 mm high. 1350 mm from FFL to lowest point.

Depth

Maximum 1500 mm from face of back wall or rear ducting.

Colour

Panels

Pilasters

Doors

Hinges

Dark grey

Light grey

Catches

Indicator bolt and keep

With concealed fixings and emergency release.

Magnetic catch

Accessories

Document M compliant grab rails and door pulls

Venesta coat hook

Venesta toilet roll holder

Standard product features

General:

Pedestals/ Support system: Steel vertical post fitted to rear face of pilaster and concealed within polycarbonate pedestal.

Ground clearance: 150 mm.

Cleats: Concealed fixings.

Hinges: Powder coated aluminium safety hinges.

Fittings: ABS.

Product Options

Product reference:

– Lollipop HPL:

Board/ panel: 660 kg/m³ grade moisture resistant chipboard, faced each side with high pressure laminate (HPL).

Thickness: 18 mm.

Edge treatment: 3 mm thick matching or contrasting PVC with exposed corners radiused.

– Lollipop MFC:

Board/ panel: Melamine-faced, 660 kg/m³ grade, moisture resistant chipboard.

Thickness: 18 mm.

Edge treatment: 3 mm thick matching or contrasting PVC with exposed corners radiused..

– Lollipop SGL:

Board/ panel: High density, solid grade laminate (SGL) with decorative face each side.

Thickness: 13 mm.

Edge treatment: All edges radiused and polished (black).

Colour:

Consult Venesta Washroom Systems for details of the standard colour range.

Product Reference	Lollipop HPL High pressure laminate covered chipboard panels. Lollipop MFC Melamine faced chipboard panels. Lollipop SGL Solid grade laminate panels.
Height	Full height 1950 mm from FFL. Size A 1000 mm high. 1250 mm from FFL to lowest point. Size B 1200 mm high. 1350 mm from FFL to lowest point.
Depth	Maximum 1500 mm from face of back wall or rear ducting.
Colour	-
Panels	-
Pilasters	-
Doors	-
Hinges	Dark grey Light grey
Catches	Indicator bolt and keep With concealed fixings and emergency release. Magnetic catch
Accessories	Document M compliant grab rails and door pulls Venesta coat hook Venesta toilet roll holder
