Description

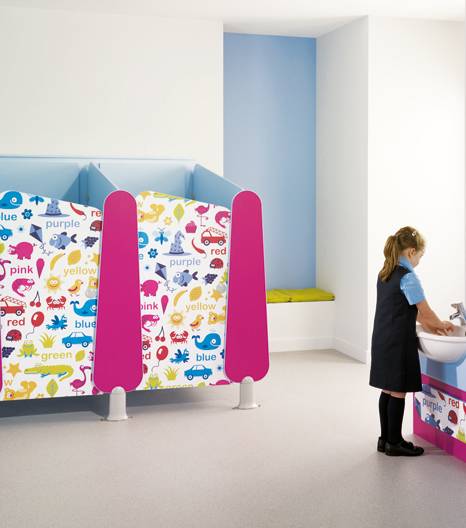

Frameless cubicle system for schools available in three material options and three standard heights.

General information
Specification data - Panel cubicle systems
Product Reference

Lollipop HPL

High pressure laminate covered chipboard panels.

Lollipop MFC

Melamine faced chipboard panels.

Lollipop SGL

Solid grade laminate panels.

Height

Full height

1950 mm from FFL.

Size A

1000 mm high. 1250 mm from FFL to lowest point.

Size B

1200 mm high. 1350 mm from FFL to lowest point.

Depth

Maximum 1500 mm from face of back wall or rear ducting.

Colour -
Panels -
Pilasters -
Doors -
Hinges

Dark grey

Light grey

Catches

Indicator bolt and keep

With concealed fixings and emergency release.

Magnetic catch

Accessories

Document M compliant grab rails and door pulls

Venesta coat hook

Venesta toilet roll holder

Standard product features

General:

  • Pedestals/ Support system: Steel vertical post fitted to rear face of pilaster and concealed within polycarbonate pedestal.
  • Ground clearance: 150 mm.
  • Cleats: Concealed fixings.
  • Hinges: Powder coated aluminium safety hinges.
  • Fittings: ABS.

Product Options

Product reference:

– Lollipop HPL:

  • Board/ panel: 660 kg/m³ grade moisture resistant chipboard, faced each side with high pressure laminate (HPL).
  • Thickness: 18 mm.
  • Edge treatment: 3 mm thick matching or contrasting PVC with exposed corners radiused.

– Lollipop MFC:

  • Board/ panel: Melamine-faced, 660 kg/m³ grade, moisture resistant chipboard.
  • Thickness: 18 mm.
  • Edge treatment: 3 mm thick matching or contrasting PVC with exposed corners radiused..

– Lollipop SGL:

  • Board/ panel: High density, solid grade laminate (SGL) with decorative face each side.
  • Thickness: 13 mm.
  • Edge treatment: All edges radiused and polished (black).

Colour:

Consult Venesta Washroom Systems for details of the standard colour range.
