LockMaster Solar Security Gate

Name: LockMaster Solar Security Gate
Brand: CLD Physical Security Systems
SKU: 7qHWRiYsnW27ZWhmcbBgdu

Verified by manufacturer 4 days ago

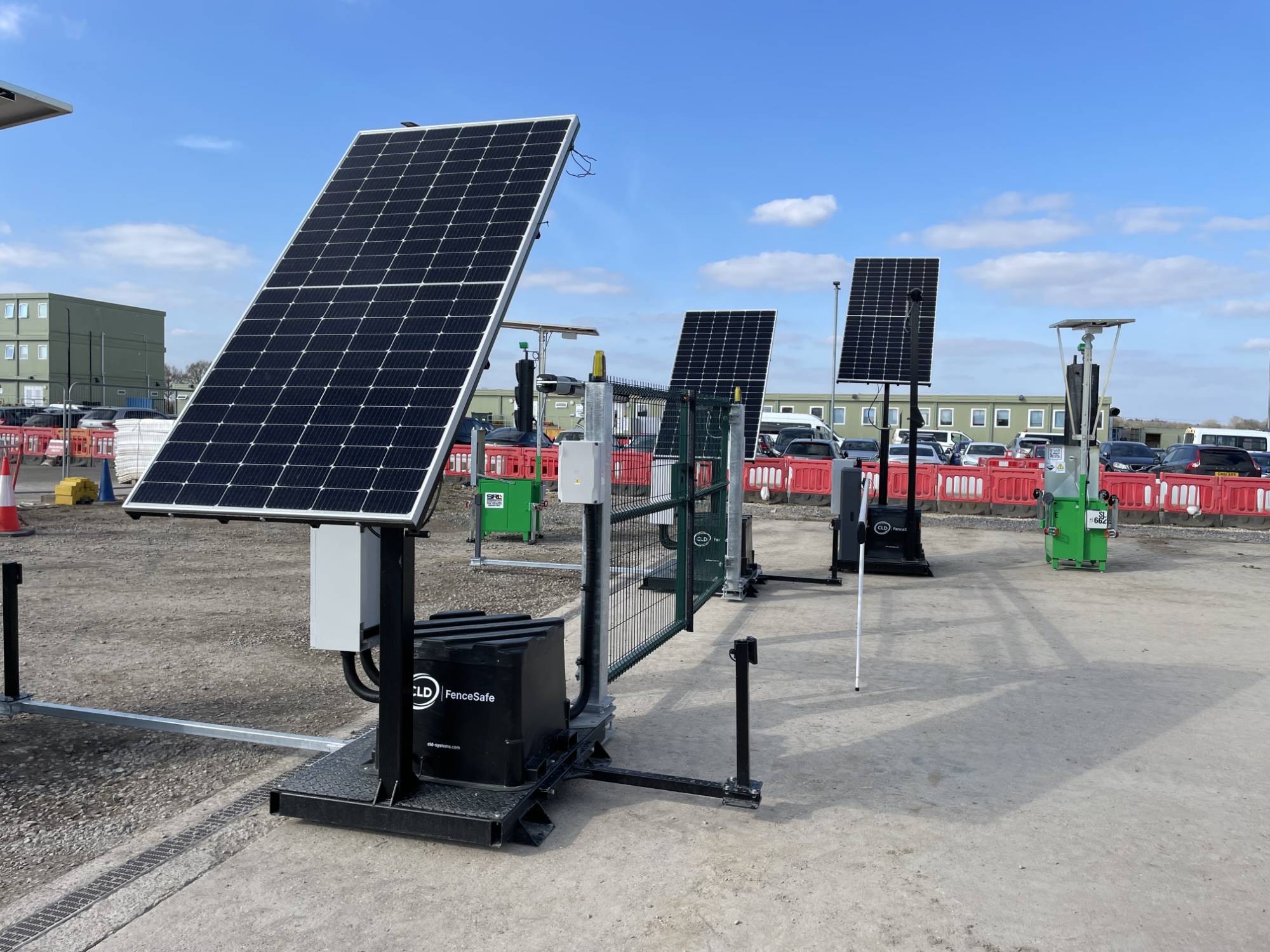

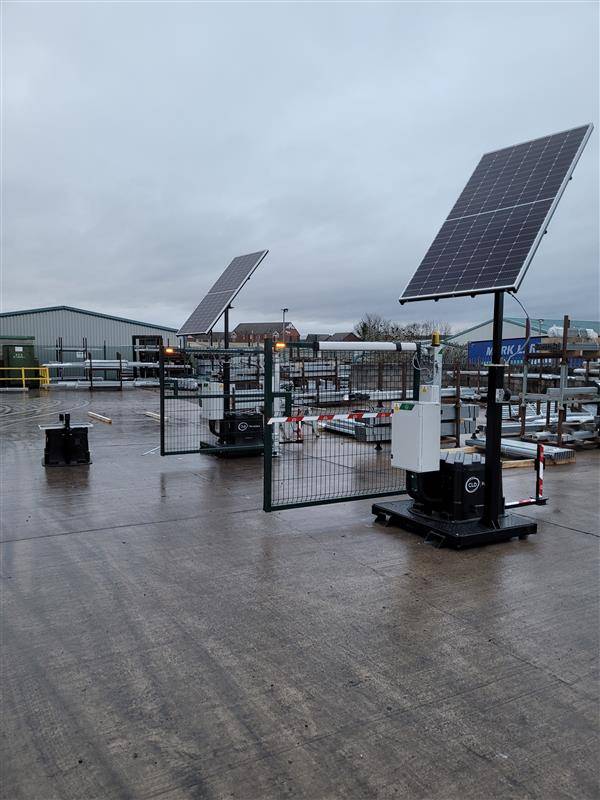

The CLD LockMaster Solar is an off-grid, solar hinge gate with wireless control, five year battery life, and no mains or trenching needed. Fits CLD fencelines, single or double leaf.

Jump to:

+44 (0)1270 764751 Website

Application

Suitable for securing vehicle access points in remote or hard-to-reach locations where mains power is unavailable or costly to install.
Its off-grid, solar-powered operation makes it particularly suitable for temporary or permanent installations at construction sites, utility compounds, data centres, agricultural properties, and critical infrastructure perimeters.
With wireless integration and compatibility with CLD fencelines, it offers a flexible solution for both single and double leaf gate configurations.
The system is also well-suited for rapid deployment scenarios, including event security, military bases, and emergency response sites, where fast setup and reliable access control are essential.

Description

The CLD LockMaster Solar is a solar-powered, off-grid automatic hinge gate for vehicle access. It supports access control systems and can be integrated into any CLD fence line as single or double leaf.

Features and benefits:

Available in surface-mounted and free-standing versions.
Permanent versions also available.
It requires no mains power, trenches, or cabling, with wireless integration and battery life of at least five years.
24/7 365 off grid solar autonomy.
Gate infill to match fence system.
Full range of RAL colours available.

General information

Color	Other
Finish	Powder-coated Galvanized
Material	Steel
Shape	Rectangle
Width	3000 mm 4000 mm 6000 mm 8000 mm
Height	1800 mm 2000 mm 2400 mm 3000 mm
Warranty description	One year

Uniclass	Pr_30_59_34_14 Carbon steel gatesPrimary Pr_30_59_59_79 Sliding vehicular barriers
CAWS	Q40/40 Steel gates Q40/560 Steel gates and posts Q40/45 Proprietary gates Q40/570 Proprietary gates and posts

Specification data - Carbon steel gates

Classification data
Product reference	LockMaster Solar Security Gate
Standard	In accordance with BS EN 12453.
Dimensions	-
Span	- Manufacturer guidance Insert requirements. Single leaf: 3–4 m Double leaf: 6–8 m. Height dependant, consult manufacturer for details.
Height	1800 mm. 2000 mm. 2400 mm. 3000 mm.
Posts	Carbon steel.
Gate leaves	Tubular vertical bars. CLD mesh fencing panel to match fence line.
Hardware	-
Hinges	Minimum of two welded hinge sets with M20 (minimum) eye bolts.
Securing	Automatic locking via mechanical and electromechanical lock.
Operating	Off-grid solar powered.
Finish as delivered	-
Applied finish	Polyester powder-coated.
Colour	RAL colour. Guidance for specification option: Any RAL colour available. Insert requirements.
Construction	Mild steel SHS, RHS welded sections. Manufacturer guidance Gate construction.
Frame	Vertical stiles: minimum of 50 x 50 x 3 mm square hollow section. Horizontal rails: minimum of 50 x 50 x 3 mm square hollow section.
Mounting	Surface-mounted. Free-standing. Permanent.
