Natural stone cladding ventilated rainscreen cladding system.
Ventilated rainscreen cladding system with natural stone-faced panels on a lightweight concrete carrier. Airtec Stone cladding offers a wide range of options for the design of high-quality natural stone façades with a vast choice of stone types and panel sizes. Large panels up to 7.74 m² can be used on the system without any visible fixing elements. The panels consist of a 5–10 mm top layer of natural stone on a lightweight concrete base no more than 19 mm thick, ensuring the panels are up to 60% lighter than solid stone slabs.
The horizontal and vertical support rails of the substructure must be made of aluminium alloy EN AW 6060 T66 or EN AW 6063 T66 to BS EN 755-2.
[Finish, With individual sizes, textures and colours, Airtec Stone cladding offers architects and specifiers an extensive range of design options. In addition to 13 standard finishes, Airtec Stone is also available in individual types of natural stone to suit exact requirements]
[Size, Available up to 4.3 m high and individual panel areas up to 7.74 m². These sizes are impossible to produce using classic natural-stone façade systems on account of their weight and the size of the block stone prior to cutting]
H92/120 Rainscreen cladding

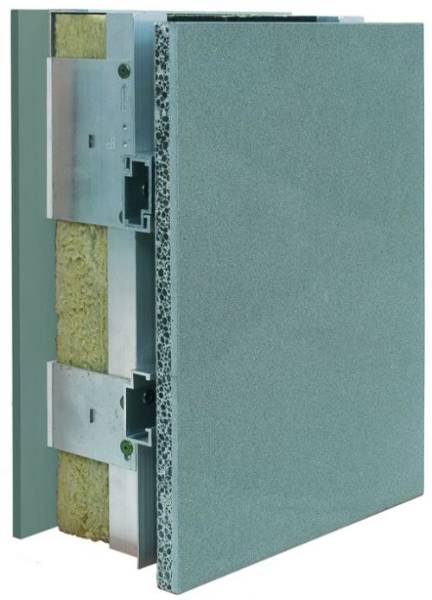

Lithodecor Airtec Stone
Anrächer Dolomit/ Calcareous limestone, greenish
Balmoral Red/ Granite, light red
Bianco Iberico/ Granite, light
Deep Black/ Gabbro, black
Giallo Veniziano/ Granite, yellow
Juparana Columbo/ Gneiss, reddish
Jura Gelb/ Limestone, yellow
Mocca Crème/ Limestone, cream
Nero Impala/ Gabbro, dark
Pietra Serena Grau/ Sandstone, grey
Sandstone, yellowish brown
Waldstein Gelb/ Granite, yellowish
Wertheim Rot/ Sandstone, red
Standard product features
Thin slabs of natural stone laminated onto a carrier panel. The carrier panels, constructed from a specially developed lightweight concrete, are used for fixing and load transfer. Since the physical characteristics of the carrier and the laminated material are very similar, the layers are a perfect combination and protect the façade against all types of weather.
The composite panels are fixed to horizontal aluminium rails with special concealed aluminium clips. The load is transferred from the panel to the clips via specially developed ceramic discs that are integral to the carrier panel. The number of fixing points are dependent on the size, weight and loading of the façade panels.
For ventilated rainscreen systems the horizontal rails are attached to an aluminium support system which usually comprise of helping hand bracket and t-spline/vertical rails.
Meets the CWCT technical note 76 and BS 8200 up to category B for impact.
Available up to 4.3 m high and individual panel areas up to 7.74 m². These sizes are impossible to produce using classic natural-stone façade systems on account of their weight and the size of the block stone prior to cutting.
With individual sizes, textures and colours, Airtec Stone cladding offers architects and specifiers an extensive range of design options. In addition to 13 standard finishes, Airtec Stone is also available in individual types of natural stone to suit exact requirements.
Due to the material properties of the composite panel, it is possible to manufacture three-dimensional shaped parts, such as corners, angles and U-sections with a monolithic appearance. This process involves mitring the composite panels, bonding them without a visible joint and securing them by mechanical means. Cantilevered panels up to 400 mm in length can be attached to a mother panel.
