Lithodecor Airtec Photovoltaic
Description

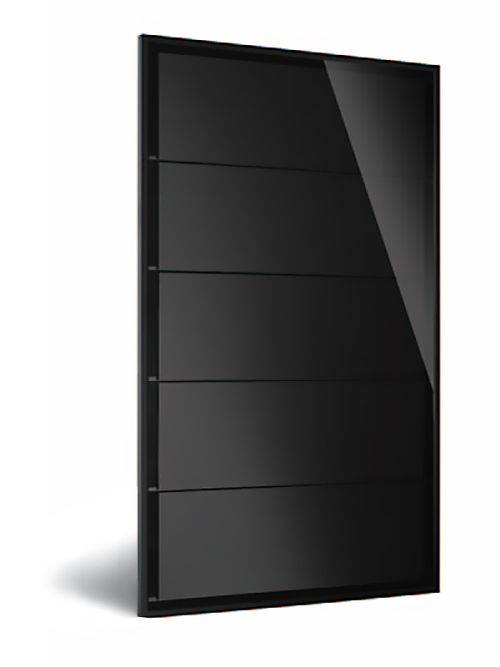

Ventilated rainscreen cladding system with glass panels on a lightweight concrete carrier. Airtec Photovoltaic offers innovative forms of solar energy generation for façades. The carrier is a lightweight façade panel with an integrated photovoltaic module of variable shape and design. The analogue construction principle allows the photovoltaic elements to be combined with other Airtec systems using the same base frame.

The horizontal and vertical support rails of the substructure must be made of aluminium alloy EN AW 6060 T66 or EN AW 6063 T66 to BS EN 755-2.

Features/ Benefits:

  • Can be combined with all other Lithodecor cladding systems.
  • Standard and customized sizes.

General information

Uniclass 2015

Ss_25_20_70_25 Drained and back-ventilated rainscreen cladding systemsPrimary

CAWS

H92/120 Rainscreen cladding

V90/312 Photovoltaic system

Specification data - Drained and back-ventilated rainscreen cladding systems

Product Reference

Lithodecor Airtec Photovoltaic

Module size

1000 x 800 mm

1000 x 1000 mm

1200 x 600 mm

1200 x 800 mm

1300 x 1100 mm

2200 x 860 mm

2400 x 730 mm

2400 x 1100 mm

Special order

Insert requirements, available 300–2400 x 300–1100 mm.

Accessories

Insert requirements.

Standard product features

Module finish:

Charcoal-coloured cells, almost invisible 'pinstripes' and wires.

Fixing:

Visible fixing on aluminium substructure.
