Ventilated rainscreen systems with glass panels.

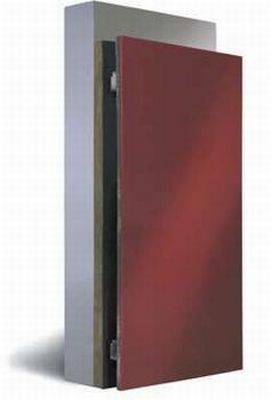

Ventilated rainscreen system with glass panels laminated to lightweight aerated clay concrete panels. The system is mounted on an aluminium support system using concealed mechanical fixings, panels can also be structurally bonded.
Robust composite panels up to 32 mm thick, consisting of toughened safety glass bonded to a lightweight aerated concrete base
Panels are available in heights up to 3600 mm and 1200 mm in width
Available with graffiti-resistant coating
Highly resistant to impact
Tested to CWCT standards at the Taylor Woodrow laboratories to ensure that the glass does not de-bond from the panel on impact
Fixed with either a concealed clip system or structural adhesive to a lightweight aluminium carrier system
H92/120 Rainscreen cladding
Airtec Glass Facades
|Size (h x l)|
3200 mm x 1400 mm
|Standard product features|
Available in an extensive range of UV resistant colours - refer to manufacturer for further details.
