Liner Unit

Description

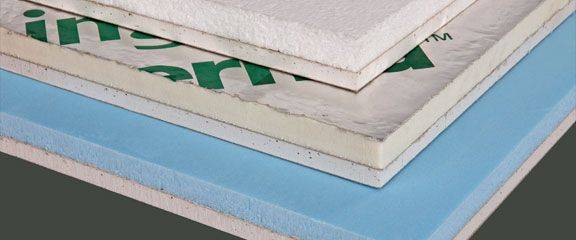

Square or taper edge plasterboard bonded to various types of insulation which provides an insulated internal lining for walls and ceilings offering improved sound reduction and smooth plasterboard internal finish.

General:

  • Insulation satisfies the requirements of BS 5422.
  • Plasterboard is incombustible to BS 476–4, rated Class 1 surface spread of flame to BS 476-7.
  • The gypsum plaster facing material should not be used in continuously damp conditions or externally on a building.

General information

Uniclass 2015

Pr_25_71_35_88 Thermal laminate gypsum plasterboardsPrimary

CAWS

K10/115 Metal stud partition system

K10/125 Metal stud partition system

K10/15 Lining on timber

K10/155 Wall lining system (metal studs)

K10/165 Wall lining system (metal framing)

K10/175 Wall lining system (metal furrings)

K10/185 Wall lining system (adhesive)

K10/205 Lining on timber

K10/220 Proprietary suspended ceiling system

K10/245 Ceiling lining on timber

K10/25 lining on timber . . . . . .

K10/30 Metal stud

K10/35 Wall lining system (metal framing)

K10/41 Wall lining system (metal furrings)

K10/45 Wall lining system (adhesive)

Specification data - Thermal laminate gypsum plasterboards

Product Reference

Liner Unit

Edge

Square

Tapered

Insulation

-

Type

Expanded polystyrene (EPS)

Extruded polystyrene (XPS)

Lamella (LAM)

Polyurethane (PUR)

Thickness

17 mm

20 mm

30 mm

40 mm

50 mm

60 mm

70 mm

80 mm

90 mm

100 mm

110 mm

120 mm

Aluminium foil vapour barrier

Not required

Required

Standard product features

Size (l x w):

2400 x 1200 mm.

Plasterboard thickness:

12.5 mm.

Product Options

Insulation:

  • Expanded Polystyrene (EPS): Versatile expanded polystyrene for optimum value and light weight.
  • Extruded Polystyrene (XPS): Small, closed cell extruded polystyrene for optimum insulation, high compressive strength and resistance to moisture.
  • Lamella (LAM): Manufactured from high density rock wool slab, which is cut into blocks and rotated through 90° before being bonded to the plasterboard. Lamella rock wool is incombustible and is especially suitable for acoustic applications.
  • Polyurethane (PUR): Polyurethane foam has very low thermal conductivity and is particularly suitable for applications where space is at a premium.

Aluminium foil vapour barrier:

Available with aluminium foil vapour barrier between plasterboard and insulation.
