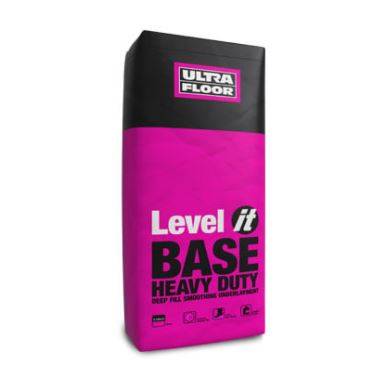

Level IT Base: Heavy Duty, Deep Fill Smoothing Underlayment

Name: Level IT Base: Heavy Duty, Deep Fill Smoothing Underlayment
Brand: Instarmac Group plc
SKU: mf9zRJnPWqwuuEcFo2iD1k

Verified by manufacturer 1 month ago

Instarmac Group plc

Third party certifications:

EPD
Certificate type

Heavy duty, deep fill smoothing underlayment.

Jump to:

+44 (0)1827 254400 Website

Application

When mixed with clean cold water, Level IT BASE is a product that can be trowel or pump applied, to smooth and level, sound and strong internal subfloors prior to applications of Level IT TOP (see relevant technical datasheet sheet) where a wearing surface is required, and prior to applications of Ultra Floor smoothing underlayments when a finished decorative floor covering is being installed.
In some applications Level IT BASE can be used as the finished floor prior to application of high build resin coating (consult Ultra Floor technical department).
It is a protein free formulation so maybe used in biologically sensitive areas and can be applied to most cementitious subfloors including those incorporating fully commissioned warm water underfloor heating systems.
It may also be used over fully cured and dry calcium sulphate screeds.
Level IT BASE should be applied at a minimum application thickness of 5 mm and can be applied up to a maximum of 50 mm.

Description

Ultra Floor Level IT BASE is a rapid setting and hardening, high strength, single part, cementitious smoothing underlayment incorporating recycled raw materials. Level IT BASE may be mixed up and applied as single units and is especially suited to larger projects where it is deal for pumping applications and can be applied up to depths of 50 mm. Level IT BASE is suitable for use in industrial , commercial and domestic flooring installations.

Features and benefits:

Builds depth of up to 50 mm.
Pump or trowel applied.
Suitable for underfloor heating systems.
Contains recycled material.
Moisture tolerant.
High compressive strength.
Ideal for use with Level IT Top.
Pump or trowel applied.
Walk on: three hours.
Coverage: approximately 3 m² at 5 mm.
5–50 mm thickness.
Working time 30–40 minutes.
Internal floors.
Size: 25 kg.

General information

Color	Beige Grey
Material	Cement Guidance for specification option: Single part, cementitious smoothing underlayment incorporating recycled raw materials.
Shape	Formless
Length	Bespoke
Width	Bespoke
Height	Bespoke

Uniclass	Pr_35_31_06_80 Smoothing and levelling underlay compoundsPrimary
CAWS	M10/19 Proprietary screeds to BS EN 13813 M10/7 Proprietary quick drying levelling screeds M50/460 Smoothing/ levelling underlayment compound M50/20 Sheeting M50/10 Resilient floor tiling M50/15 Carpet tiling M50/25 Carpeting M40/460 Smoothing underlayment

Specification data - Smoothing and levelling underlay compounds

Material	Cementitious. Guidance for specification option: Single part, cementitious smoothing underlayment incorporating recycled raw materials.

Standard	To BS EN 13813:2002.
Type	CT-C35-F6.
Working time	30–40 minutes. Guidance for specification option: At 20°C.
Setting time	2–3 hours. Manufacturer guidance Walk on hardness.
Compressive strength – 1 day	27 N/mm². Manufacturer guidance To BS EN 13892-2.
Compressive strength – 7 days	32 N/mm². Manufacturer guidance To BS EN 13892-2.
Compressive strength – 28 days	37 N/mm². Manufacturer guidance To BS EN 13892-2.
Flexural strength	6 N/mm². Guidance for specification option: At 28 days. 1 day: 3.5 N/mm². 7 days: 4 N/mm². Manufacturer guidance To BS EN 13892-2.
Delivery condition	Bagged. Guidance for specification option: 25 kg bag.
Application thickness	5–50 mm.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Material	Cement Guidance for specification option: Single part, cementitious smoothing underlayment incorporating recycled raw materials.
