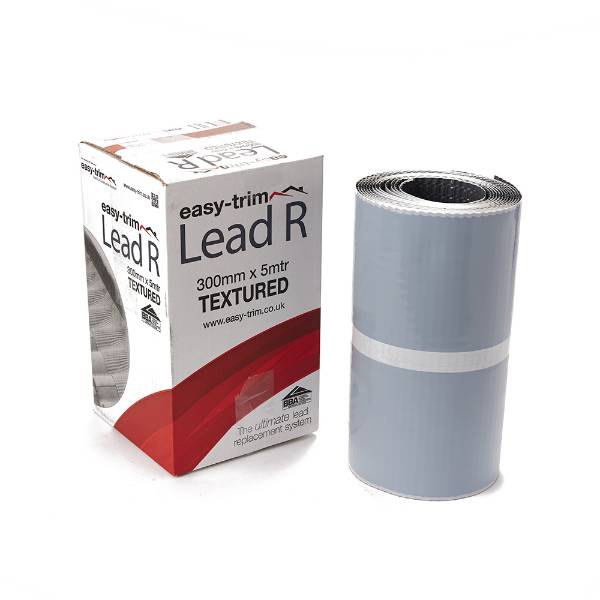

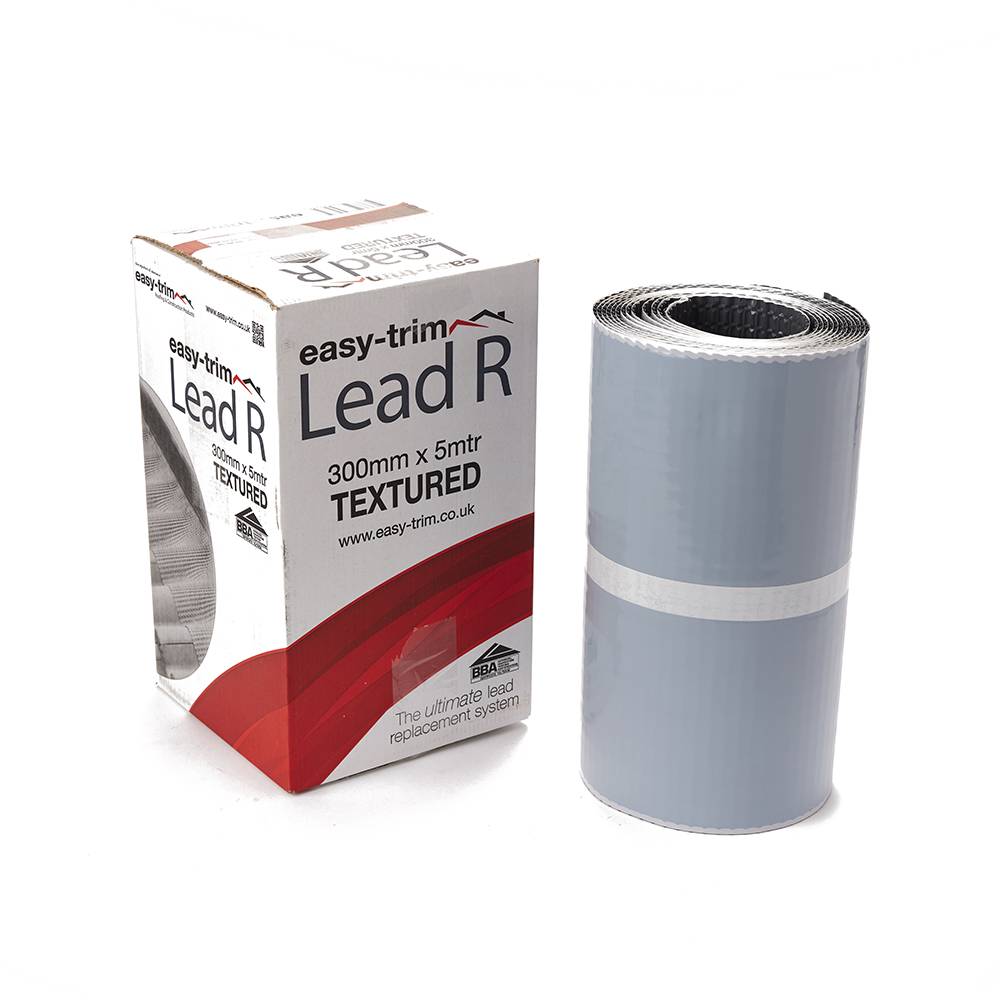

Lead R - Lead Alternative Flashing

Verified by manufacturer 3 months ago

Easy Lead R Textured EASYLEADR1505

Easy-Trim Roofing and Construction Products Ltd Variant:
Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

BBA Approved, aliminium alternative to traditional lead flashing, with a protective anti-corrosion coating and an adhesive underside.

Jump to:
01282 930680 Website

Application

  • Flat roofs.
  • Pitched roofs.
  • Abutments.
  • Chimneys.
  • Dormers.
  • Saddles.
  • Soakers.
  • Stepped.
  • Valleys.
  • Windows and rooflights.
  • Valleys and gutters.


Description

An alternative flashing to traditional lead which is suitable for use in both flat and pitched roof projects. It is easy to mould and shape, and will adapt to various surfaces, providing a permanent bond to brickwork, roof tiles and other popular construction materials.


Available in a textured or smooth finish that mimics the appearance of traditional lead.


Features and benefits:

  • Available in four widths (150/ 300/ 450/ 600 mm).
  • Available in two finishes.
  • Zero re-sale value - eliminating theft and vandalism.
  • Cost effective alternative to traditional lead.
  • Waterproof.
  • UV resistant.
  • Extremely lightweight.
  • Durable.
  • Malleable.
  • Easy to install.
  • Easily cut, no need for special tools.
  • Easily repaired.


Quality Standards:

  • BBA Approved – BBA 16/5309.
  • Conforms to BS 5534 : 2014.
  • Conforms to BS 8000-0 : 2014 and BS 8000-6 : 1990.
  • Satisfies all NHBC requirements.

General information

Color

Grey

Finish

Smooth

Lead R Smooth

Textured

Lead R

Material

Aluminium

Butyl

Shape

Rectangle

Length

5000 mm

Per roll.

Width

150 mm

300 mm

450 mm

600 mm

Height

2 mm

WarrantyDescription

20 year

Uniclass

Pr_35_90_30_01 Aluminium flashingsPrimary

CAWS

H72/32 Cover flashings

H72/34 Soakers and step flashings

H72/36 Step and cover flashings

H72/38 Miscellaneous flashings

H72/410 Apron flashings

H72/420 Cover flashings

H72/430 Step flashings

H72/440 Soakers and step flashings

H72/450 Step and cover flashings

H72/460 Change of roof pitch flashings

H72/470 Miscellaneous flashings

Product range

Lead Replacement

Specification data - Aluminium flashings

Material

Aluminium/ butyl.

Sheet aluminium with a high-performance butyl adhesive on the underside.

Item

Insert requirements.

-

Form of delivery

Roll for site forming.

Size

-

Thickness (minimum)

2 mm.

Width

150 mm.

Weight (per roll): 1.5 kg.

Fixing

Insert requirements. See manufacturer's installation guide for details.

-

Finish

Protective anti-corrosion coating.

Colour

Grey.

Texture

Corrugated.

Temperature resistance

-40 to +90°C.

Working temperature

5°C.

Minimum.

Corrosion resistance

Yes.

Resistant against corrosion and UV degradation.



Life expectancy

20 years.

Minimum.

Length

5000 mm.

Third-party certification

BBA certificate: 16/5309.

Environmental information

Contains Red List materials

No

Country of material origin

Czechia

Country of product manufacture

Czechia

Literature

Easy Lead R Installation Guide

Easy Lead R Installation Guide

Easy-Lead Lead Replacement Systems

Easy-Lead Lead Replacement Systems

Easy-Lead R Smooth & Textured

Easy-Lead R Smooth & Textured

13/5054 JUTA EASYLEAD FLASHING

13/5054 JUTA EASYLEAD FLASHING
