LAS8070 si Drop Seal

Description

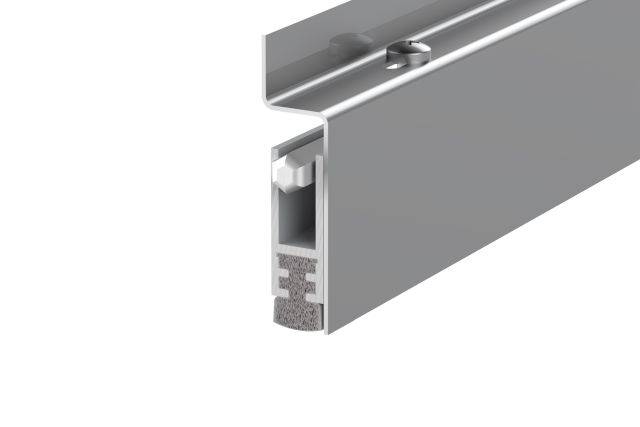

A stainless steel heavy duty automatic threshold (door bottom) seal which is spring-loaded. The seal is lifted clear of the floor as soon as the door is opened by a few millimetres.

Impervious to most chemicals, solvents, cleaning fluids and disinfectants.

General information

Finish

Grade 1.4301 (304) stainless steel with grey silicone rubber insert

Material

Foamed silicone rubber

Uniclass 2015

Pr_35_90_33_22 Door and window weatherstrips and sealsPrimary

CAWS

L20/20 Wood flush doors

L20/230 Wood flush doors

L20/25 Wood panelled doors

L20/250 Wood panelled doors

L20/270 Wood doors

L20/280 Doors

L20/30 Wood doors

L20/310 Wood door frames

L20/330 Wood door frames

L20/370 Door frames

L20/410 Wood doorsets

L20/420 Wood doorsets

L20/430 Wood doorsets

L20/480 Doorsets

L20/50 Wood door frames

L20/52 Wood door frames

L20/55 Doorsets

P21/860 Door seals for

Specification data - Door and window weatherstrips and seals

Product Reference

LAS8070 si Drop Seal

Length

610

710

815

915

1015

1120

1220

Standard product features

Location:

  • Single swing doors. For use on both right and left handed doors.
  • Use with any perimeter seal.

Dimensions:

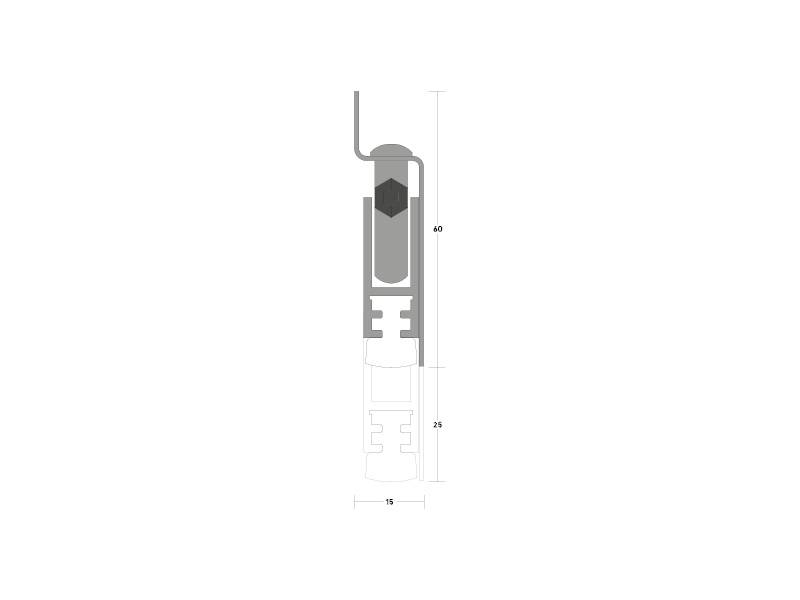

60 mm high (excluding seal in dropped position) x 15 mm wide.

Material:

Foamed silicone rubber.

Finish:

Grade 1.4301 (304) stainless steel with grey silicone rubber insert.

Minimum/ maximum gap size:

1 mm/ 25 mm.
