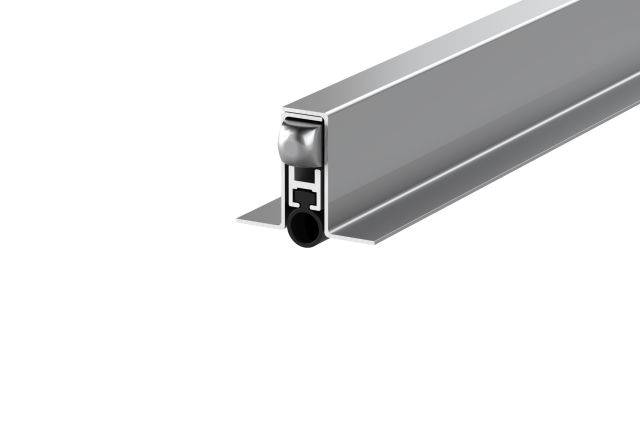

LAS8060 si Drop Seal

Verified by manufacturer 5 months ago

Lorient

Stainless steel medium duty automatic threshold (door bottom) seal, spring-loaded.

Jump to:
+44 (0)1626 834252 Website

Application

Suitable use for single swing doors. For use on both right and left handed doors, with any perimeter seal.

Description

Stainless steel medium duty automatic threshold (door bottom) seal, spring-loaded.


Features and benefits:

  • A stainless steel medium duty automatic threshold (door bottom) seal, which is spring-loaded.
  • The seal is lifted clear of the floor as soon as the door is opened by a few millimetres - resulting in exceptionally low door operating forces.

General information

Color

Silver

Finish

Other

Guidance for specification option:

Stainless steel with grey thermoplastic elastomer gasket - grade 1.4301 (304).

Material

Thermoplastic elastomer (TPE)

Stainless steel

Shape

Other

Length

725 mm

825 mm

925 mm

1025 mm

Width

33 mm

Height

26 mm

Uniclass

Pr_35_90_33_22 Door and window weatherstrips and sealsPrimary

CAWS

L20/20 Wood flush doors

L20/230 Wood flush doors

L20/25 Wood panelled doors

L20/250 Wood panelled doors

L20/270 Wood doors

L20/280 Doors

L20/30 Wood doors

L20/310 Wood door frames

L20/330 Wood door frames

L20/370 Door frames

L20/410 Wood doorsets

L20/420 Wood doorsets

L20/430 Wood doorsets

L20/480 Doorsets

L20/50 Wood door frames

L20/52 Wood door frames

L20/55 Doorsets

P21/860 Door seals

Specification data - Door and window weatherstrips and seals

Functions

Weather seals.

Seal type

Automatic threshold (door bottom) seal.

Guidance for specification option:

Spring-loaded.

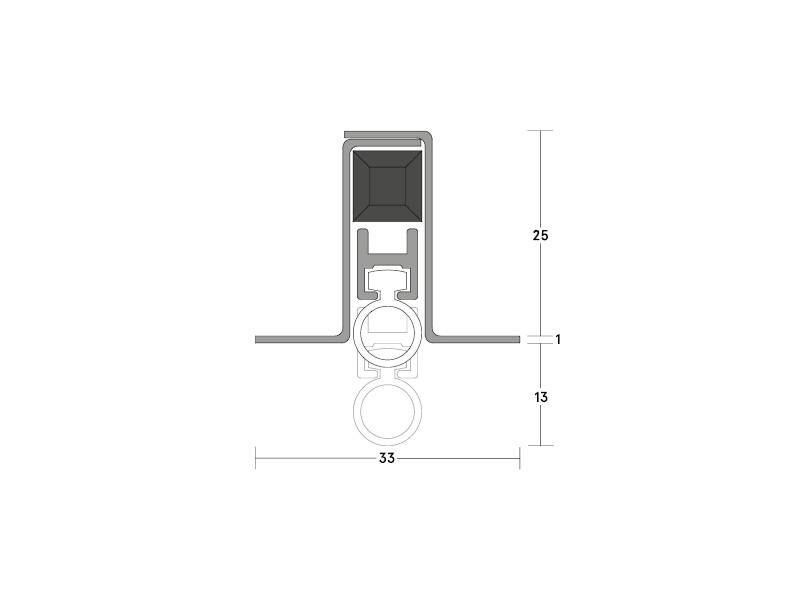

Size

26 x 33 mm.

Guidance for specification option:

H x W.

Materials

-

Seals

Thermoplastic elastomer.

Carriers

Stainless steel.

Guidance for specification option:

Grade 1.4301 (304).

Colour

Silver.

Length

725 mm.

825 mm.

925 mm.

1025 mm.

Manufacturer guidance

Each length can be reduced for an exact fit by up to 90 mm. Consult manufacturer for details.
