LAS8060 si Drop Seal

Description

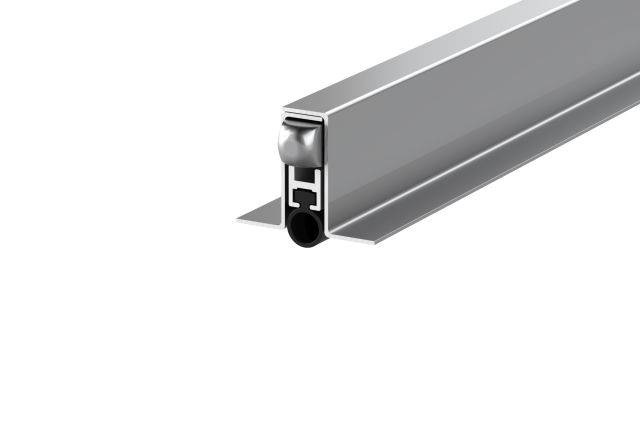

A stainless steel medium duty automatic threshold (door bottom) seal, which is spring-loaded.

The seal is lifted clear of the floor as soon as the door is opened by a few millimetres - resulting in exceptionally low door operating forces.

General information

Finish

Grade 1.4301 (304) stainless steel with grey thermoplastic elastomer gasket

Uniclass 2015

Pr_35_90_33_22 Door and window weatherstrips and sealsPrimary

CAWS

L20/20 Wood flush doors

L20/230 Wood flush doors

L20/25 Wood panelled doors

L20/250 Wood panelled doors

L20/270 Wood doors

L20/280 Doors

L20/30 Wood doors

L20/310 Wood door frames

L20/330 Wood door frames

L20/370 Door frames

L20/410 Wood doorsets

L20/420 Wood doorsets

L20/430 Wood doorsets

L20/480 Doorsets

L20/50 Wood door frames

L20/52 Wood door frames

L20/55 Doorsets

P21/860 Door seals for

Specification data - Door and window weatherstrips and seals

Product Reference

LAS8060 si Drop Seal

Length

725 mm

825 mm

925 mm

1025 mm

Standard product features

Location:

  • Single swing doors. For use on both right and left handed doors.
  • Use with any perimeter seal.

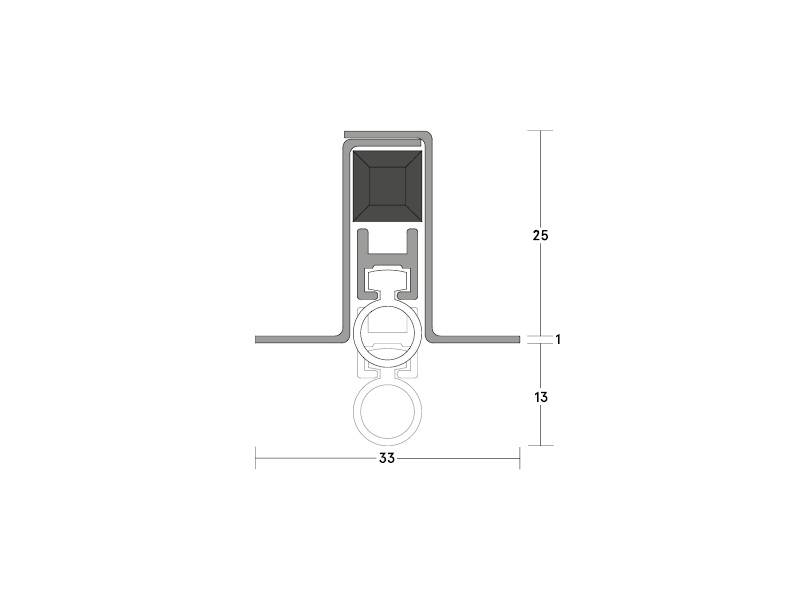

Dimensions:

  • 26 mm high (excluding seal in dropped position) x 33 mm wide.

Seal material:

Thermoplastic elastomer.

Finish:

Grade 1.4301 (304) stainless steel with grey thermoplastic elastomer gasket.

Minimum/ maximum gap size:

3 mm/ 13 mm.

Product Options

Length:

Each length can be reduced for an exact fit by up to 90 mm. Consult manufacturer for details.
