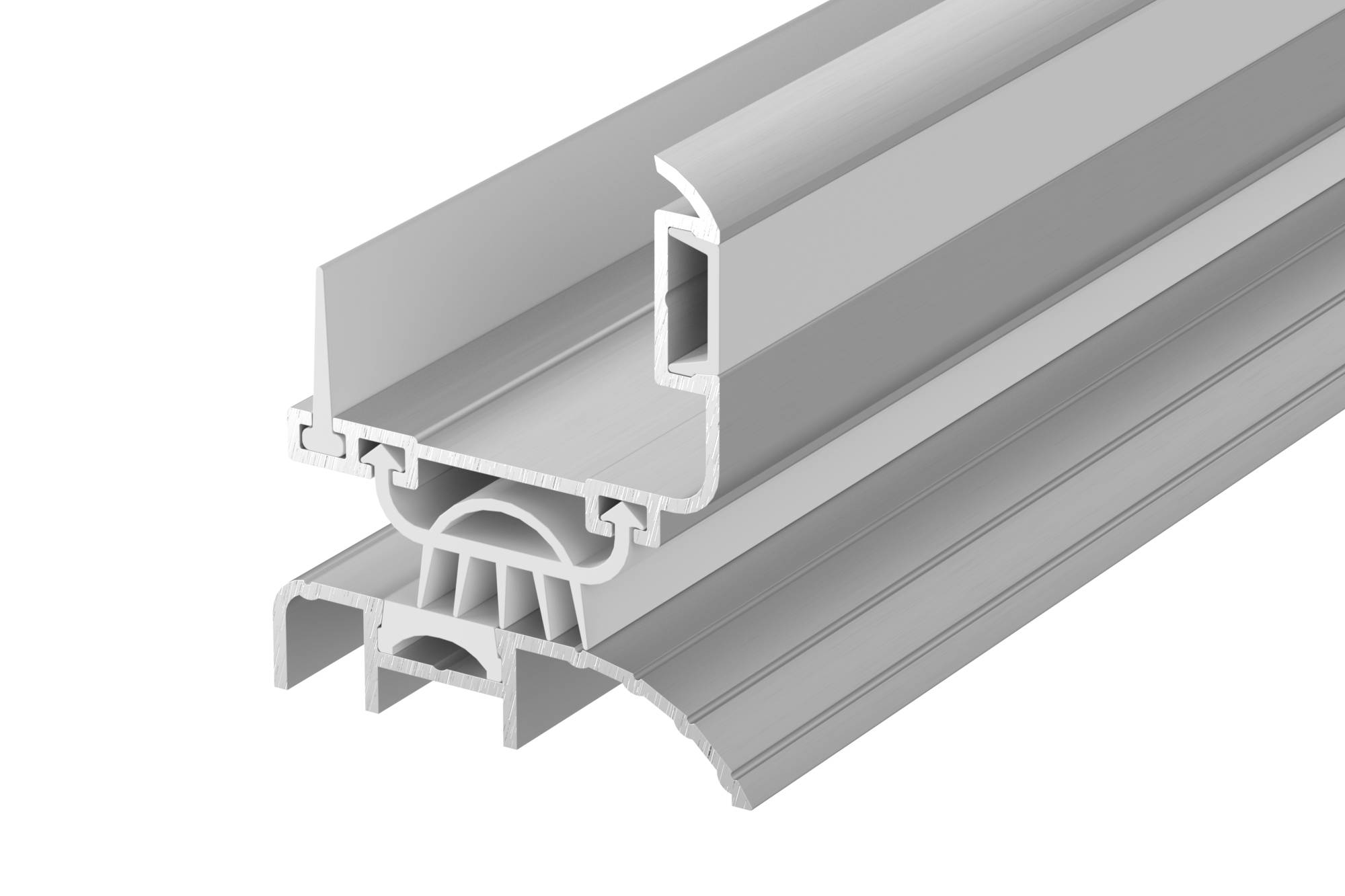

LAS3007 si Door Bottom Seal

LAS3007 si Door Bottom Seal

Lorient Polyproducts Ltd Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Weather proof seal which can be fitted without removing the door, and can be used with a choice of threshold plates.

Jump to:
+44 (0)1626 834252 www.lorientuk.com

Description

A weather proof seal which can be fitted without removing the door, and can be used with a choice of threshold plates.

Key benefits:

  • Storm-proof, multi-blade seal to deflect water.
  • Can be fitted without removing the door.
  • Concealed fixings, pre-drilled and slotted holes on LAS3007 si for easy adjustment.
  • Durable, anodized aesthetic finish.

General information

Finish

Bronze anodized aluminium with black cover strip and black silicone rubber blade

Silver anodized aluminium with grey cover strip and grey silicone rubber gasket

Material

Flexible silicone rubber

Size

46.5 mm high x 40 mm wide

Uniclass 2015

Pr_35_90_33_22 Door and window weatherstrips and sealsPrimary

CAWS

L20/20 Wood flush doors

L20/230 Wood flush doors

L20/25 Wood panelled doors

L20/250 Wood panelled doors

L20/270 Wood doors

L20/280 Doors

L20/30 Wood doors

L20/310 Wood door frames

L20/330 Wood door frames

L20/370 Door frames

L20/410 Wood doorsets

L20/420 Wood doorsets

L20/430 Wood doorsets

L20/480 Doorsets

L20/50 Wood door frames

L20/52 Wood door frames

L20/55 Doorsets

L20/610 Roller shutters/ curtains

P21/60 Threshold weatherstrip

P21/860 Door seals for

Specification data - Door and window weatherstrips and seals

Product Reference

LAS3007 si Door Bottom Seal

Length

1000 mm

2100 mm

Special order

Insert requirements.

Finish

Bronze anodized aluminium with black cover strip and black silicone rubber blade

Silver anodized aluminium with grey cover strip and grey silicone rubber gasket

Standard product features

Size:

46.5 mm high x 40 mm wide.

Material:

Flexible silicone rubber.

Location:

  • Single and double leaf doors.
  • Up and over garage doors.
  • Roller shutter doors.

Gap size:

  • Minimum: 12 mm.
  • Maximum: 14 mm.

Third party certifications

  • UL: Certificate: R27972 : Gasketing and Edge-sealing Materials for Fire Doors, Positive-pressure
