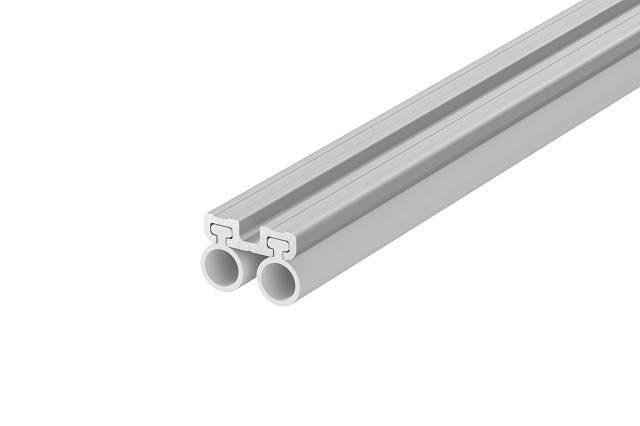

LAS3003 si Door Bottom Seal

Description

Door bottom seal suitable for acoustic and smoke containment.

General information

Finish

Silver anodized aluminium with grey silicone insert

Material

Flexible silicone rubber

Size

13 mm high x 18 mm wide

Uniclass 2015

Pr_35_90_33_22 Door and window weatherstrips and sealsPrimary

CAWS

L20/20 Wood flush doors

L20/230 Wood flush doors

L20/25 Wood panelled doors

L20/250 Wood panelled doors

L20/270 Wood doors

L20/280 Doors

L20/30 Wood doors

L20/310 Wood door frames

L20/330 Wood door frames

L20/370 Door frames

L20/410 Wood doorsets

L20/420 Wood doorsets

L20/430 Wood doorsets

L20/50 Wood door frames

L20/52 Wood door frames

L20/55 Doorsets

L20/610 Roller shutters/ curtains

P21/60 Threshold weatherstrip

P21/860 Door seals for

Specification data - Door and window weatherstrips and seals

Product Reference

LAS3003 si Door Bottom Seal

Length

1000 mm

2100 mm

Special order

Insert requirements.

Standard product features

Size:

13 mm high x 18 mm wide.

Material:

Flexible silicone rubber.

Finish:

Silver anodized aluminium with grey silicone insert.

Location:

Single and double swing doors.

Gap size:

  • Minimum: 7 mm.
  • Maximum: 13 mm.

Third party certifications

  • UL: Certificate: R27972 : Gasketing and Edge-sealing Materials for Fire Doors, Positive-pressure Tested
