LAS1002 si, LAS1005 si and LAS1009 si Compression Seals

Application

For head and jambs of single swing doors to protect against sound, smoke, draught and light. Can be used with practically any threshold seal.

Description

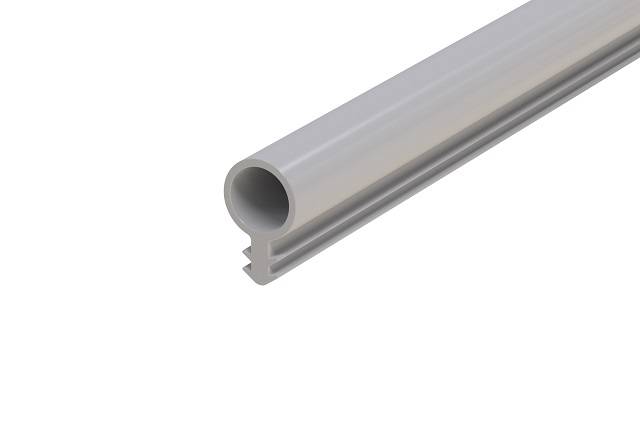

Durable, kerf-fitted bulb seals of varying sizes for doors and window frames, providing a compression seal. They are lightweight, flexible and quick and easy to install.

Applications:

For head and jambs of single swing doors to protect against sound, smoke, draught and light. Can be used with practically any threshold seal.

General information

Material

Flexible silicone rubber

Uniclass 2015

Pr_35_90_33_22 Door and window weatherstrips and sealsPrimary

CAWS

L10/10 Wood windows

L10/210 Wood windows

L10/250 Wood windows

L10/260 Wood windows

P21/62 Weatherstrip to door head and jambs

P21/855 Weatherstrip to door head and jambs

Specification data - Door and window weatherstrips and seals

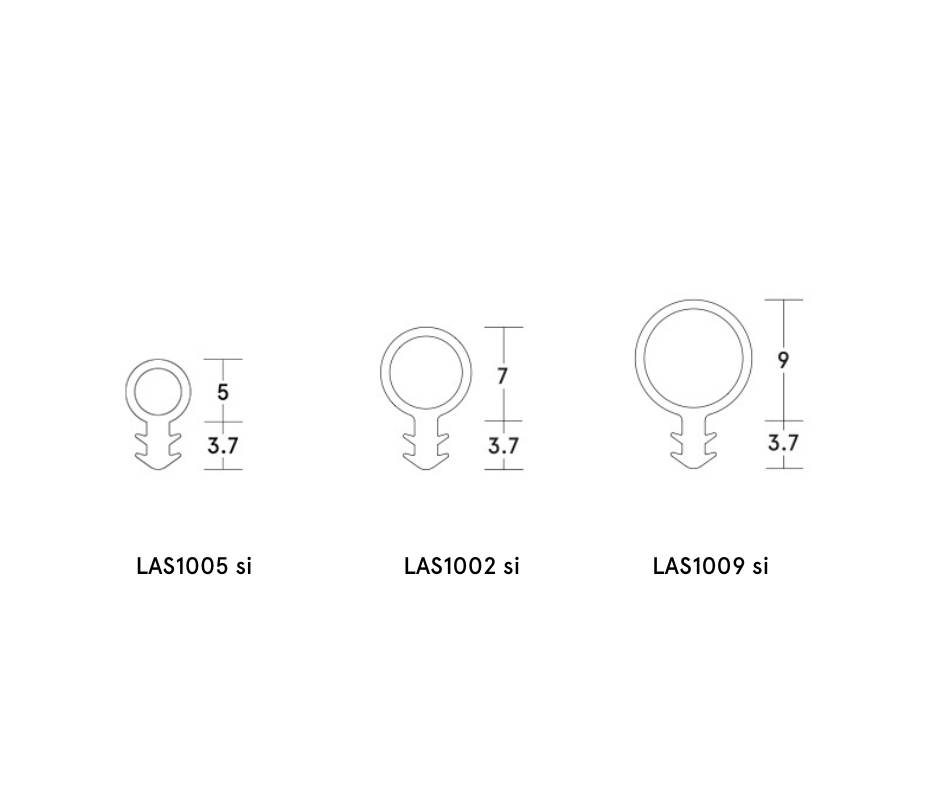

Product Reference

LAS1002 si Compression Seal

For 4–6 mm gap width, 7 mm diameter bulb.

LAS1005 si Compression Seal

For 3–4 mm gap width, 5 mm diameter bulb.

LAS1009 si Compression Seal

For 5–8 mm gap width, 9 mm diameter bulb.

Colour

Black

Dark brown

Grey

Special order

Insert requirements.

Standard product features

Material:

Flexible silicone rubber.

Length:

100 m reel.

Fixing:

Interference fit into a kerf 2 mm wide and minimum 4 mm deep.

Acoustic performance (to BS EN ISO 10140-2):

up to Rw 30 dB.

Literature

Architectural Seals

Architectural Seals
