Description

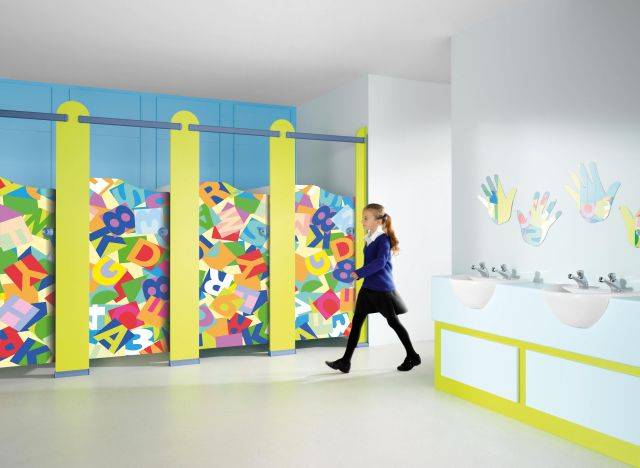

Kids Stuff MFC is ideal for infant and junior school children. Kids Stuff is a safe, fun and reliable cubicle secured with sturdy floor and wall channels to ensure stability. Available in two door and partition heights for supervision and two cubicle styles, with anti-finger-trap hinges as standard. Panels are manufactured to specific site dimensions and CAD drawings will be supplied with each delivery.

Components:

  • Melamine faced chipboard panels, supplied square edged with matching 1 mm PVC lipping.
  • Frame comprising: Pilasters, headrail, legs, hinges and channels.

General information
Specification data - Fully-framed panel cubicle systems
Product Reference

Kids Stuff MFC Panel Cubicles

Frame -
Hinge & Channel colour

Charcoal grey

Powder coated aluminium.

Silver

Powder coated aluminium.

Headrail colour

Charcoal grey

Powder coated aluminium.

Silver

Powder coated aluminium.

Yellow

Powder coated aluminium.

Red

Powder coated aluminium.

Blue

Powder coated aluminium.

Green

Powder coated aluminium.

Pilaster Foot colour

Charcoal grey

ABS.

Silver

ABS.

Yellow

ABS.

Red

ABS.

Blue

ABS.

Green

ABS.

Doors -
Heights

1455 mm high including 105mm floor clearance

1655 mm high including 105mm floor clearance

Colours

Refer to manufacturer's standard colour range.

Lock

Magnetic door catch

Charcoal grey

ABS.

Silver

ABS.

Yellow

ABS.

Red

ABS.

Blue

ABS.

Green

ABS.

Shape (see manufacturer's guidance)

Angled

Curvy

Pilasters -
Shape (see manufacturer's guidance)

Arrowhead

Crescent

Colour

Refer to manufacturer's standard colour range.

Accessories

Refer to manufacturer's standard accessories range.

Other requirements

None

Stylex printed doors

Standard product features

Panel Material:

  • Melamine faced moisture resistant 650 kg/m³ grade chipboard.
  • Thickness (overall): 18 mm nominal.
  • Edge treatment: Square with 1mm matching PVC lipping.

Floor Clearance:

105 mm.

Hinges:

Continuous with anti finger trap feature.

Partitions:

Straight cut to door height.

Pilaster height:

2000 mm.

Product Options

Colours:

- Panels:

36 laminate options and 4 digital prints - select from manufacturer's literature.

Door & Pilaster Shape:

If the angled door is selected, the arrowhead pilaster must be used; if the curvy door is selected, the crescent pilaster must be used.

Accessories:

Selection of soap dispensers, paper towel dispensers, toilet roll holders, hand dryers, coat hooks and door handles - select from manufacturer's literature.
